225-3893: A11 Auger Drive Unit

Home

Attachments

Augers

Cat® Auger Drive Units are used as a replacement/upgrade to a customers already existing auger bracket.

Brand: Cat

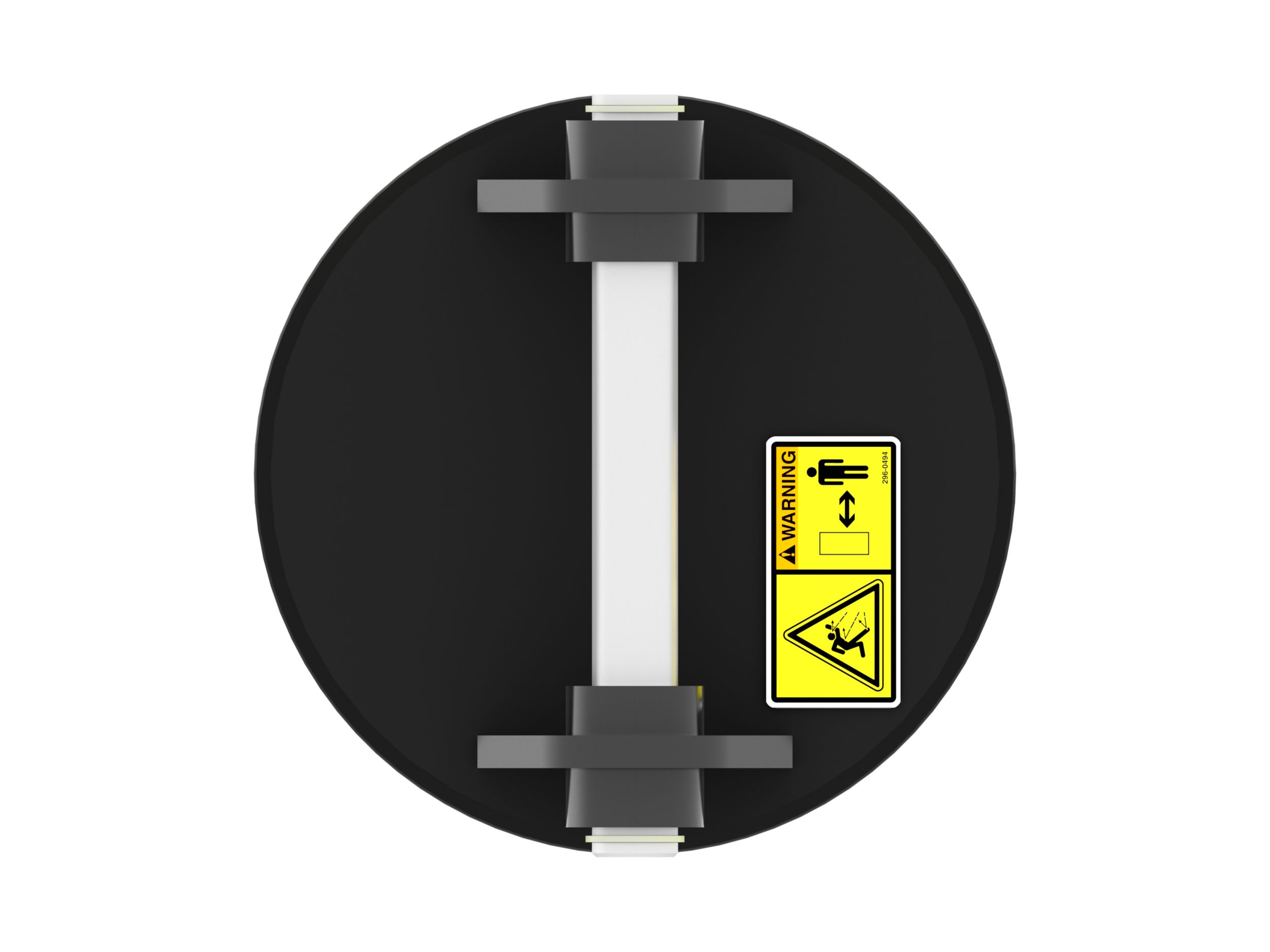

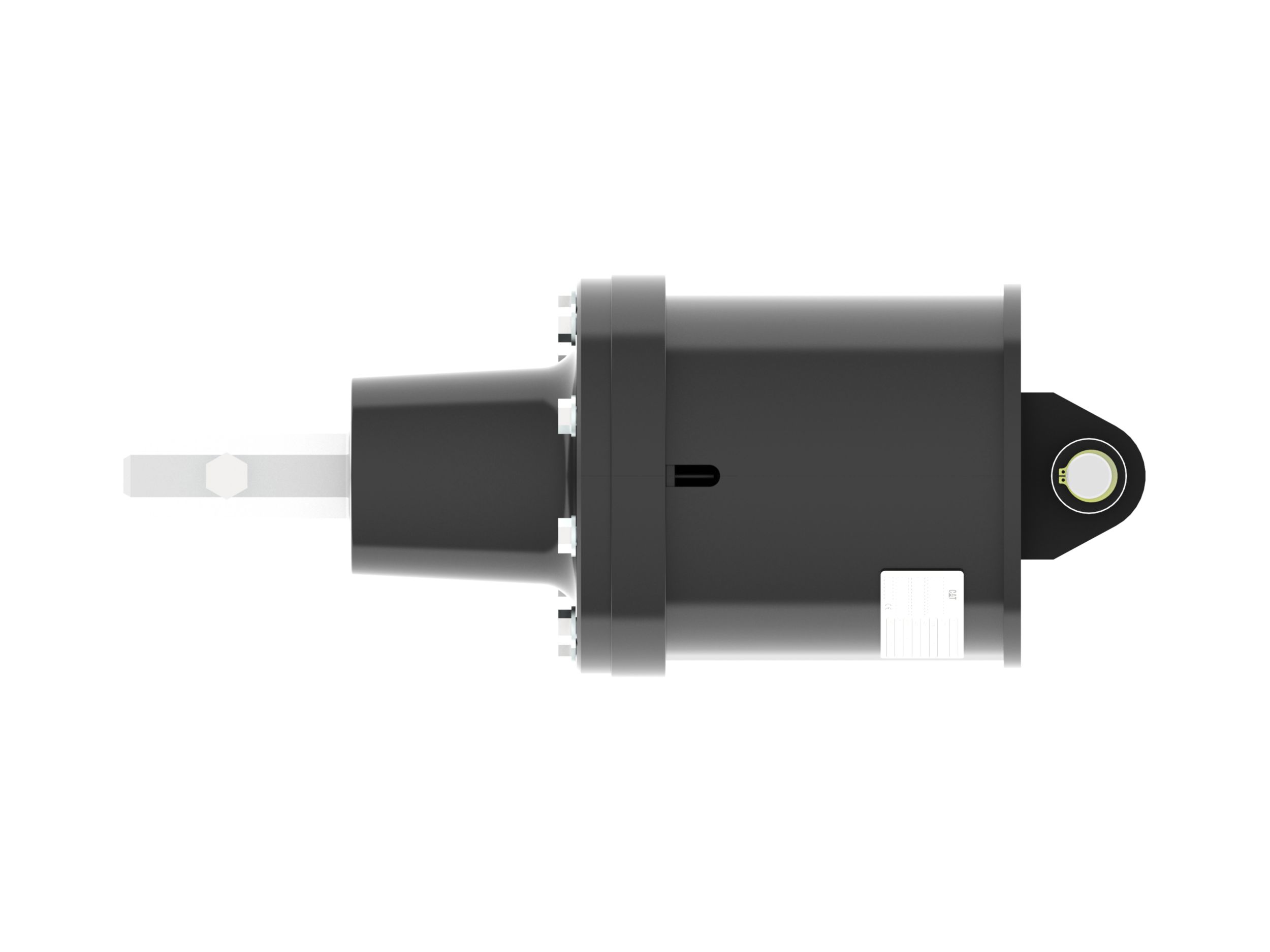

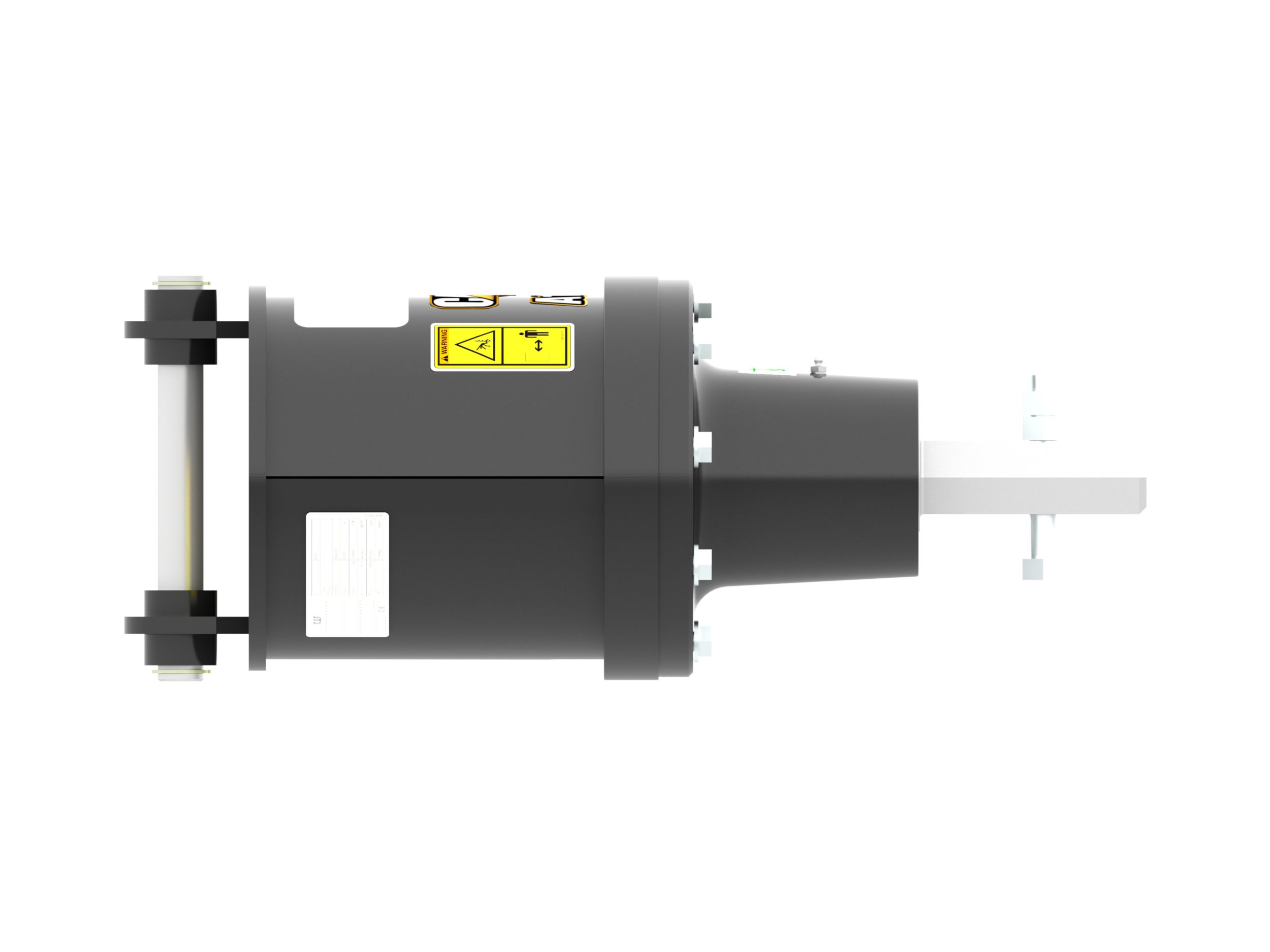

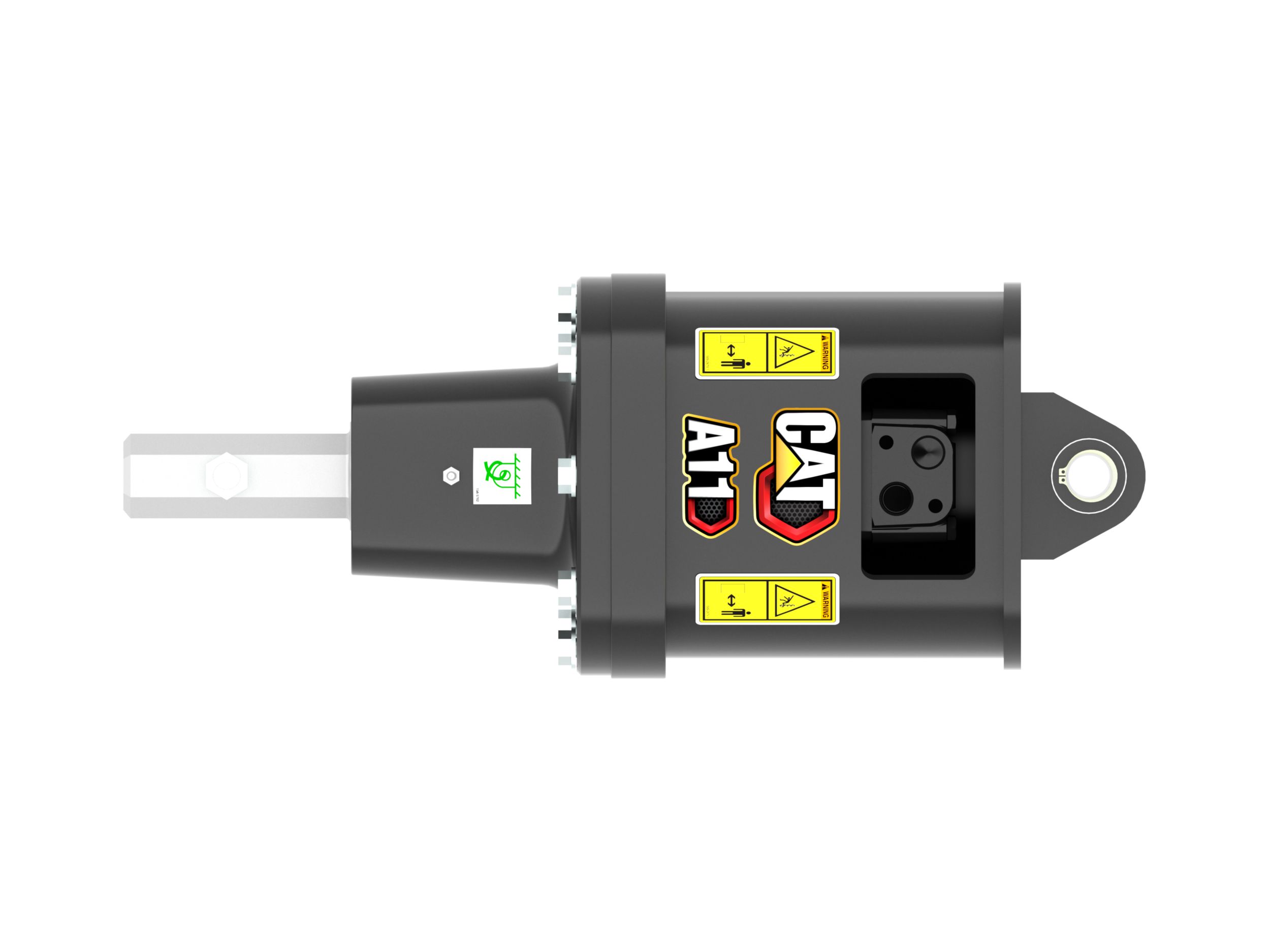

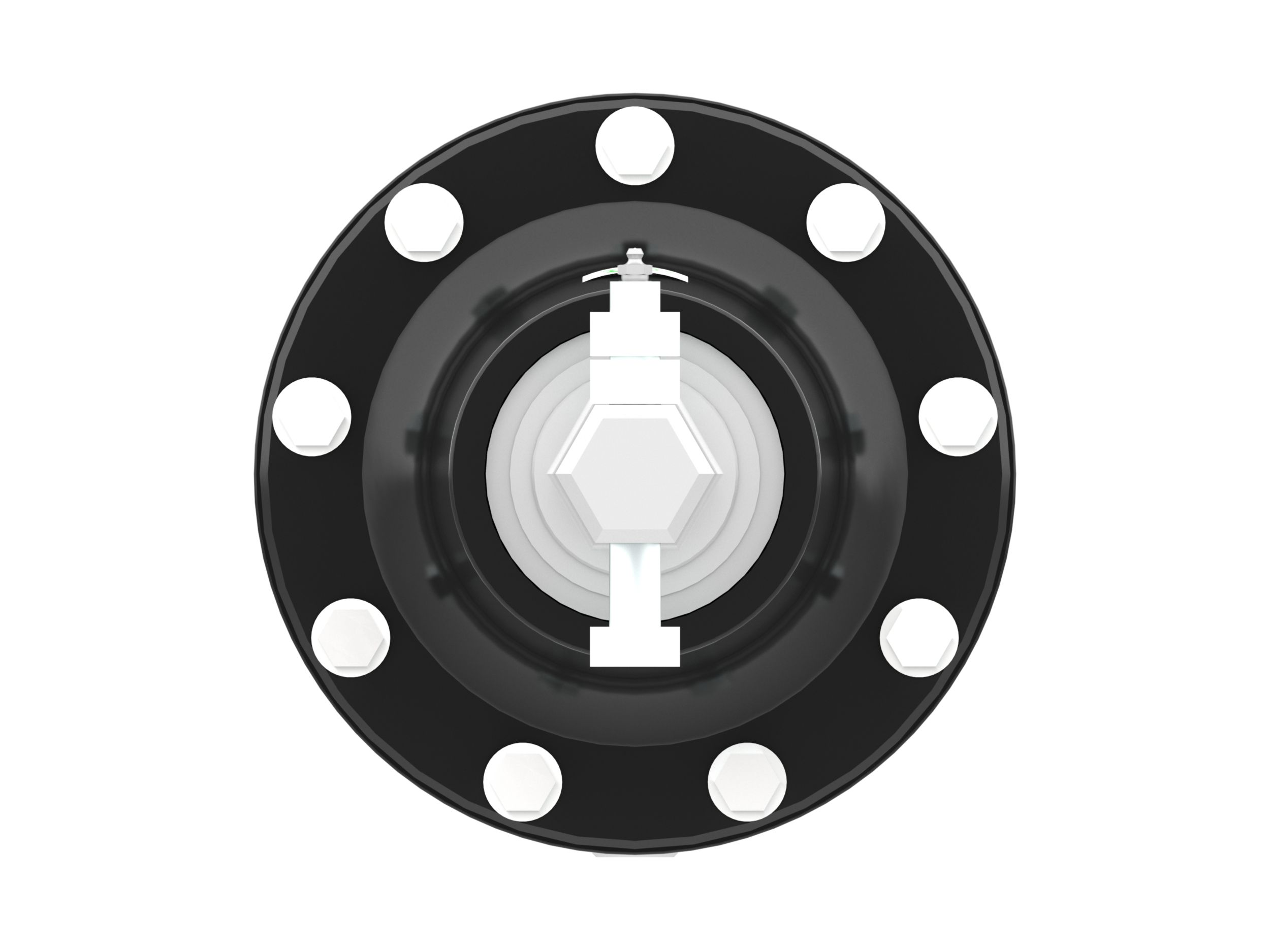

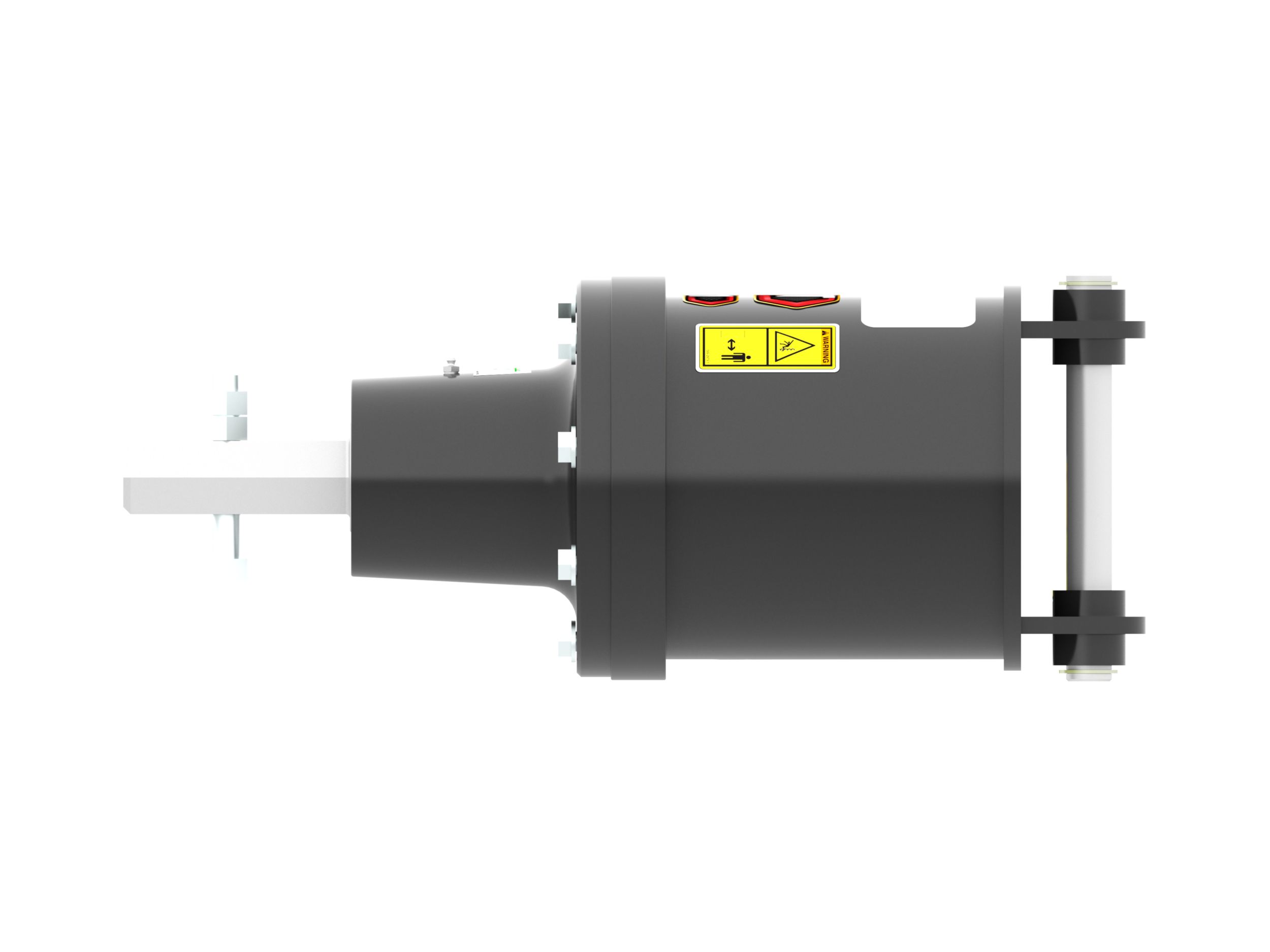

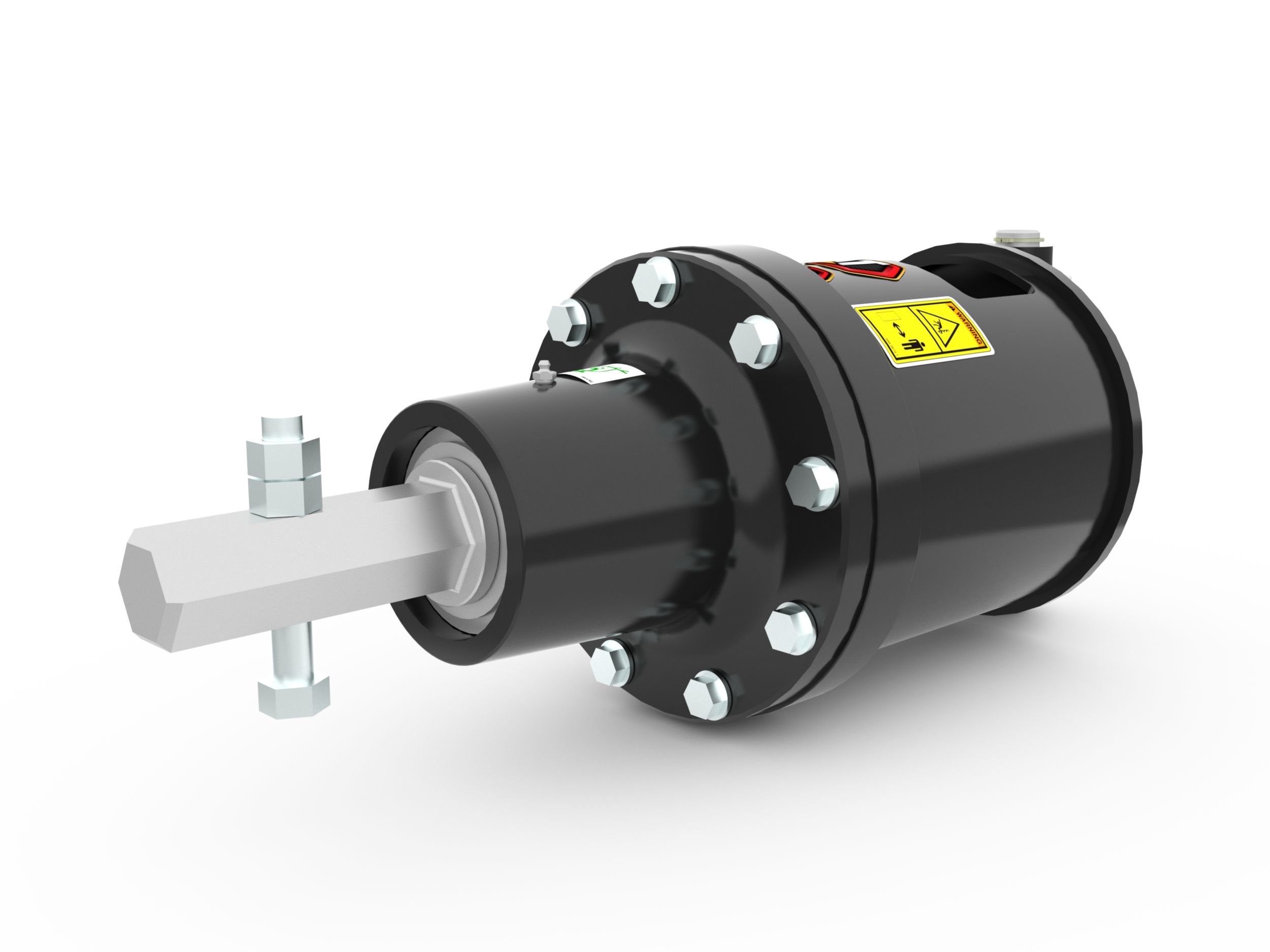

Product Images

225-3893: A11 Auger Drive Unit

Cat® Auger Drive Units are used as a replacement/upgrade to a customers already existing auger bracket.

Brand: Cat

Will It Fit?

Add your equipment to see if this part fits or if there are repair options available.

Add Equipment

Will it fit or looking for a repair?Add your equipment to see if this part fits or if there are repair options available.

Check Price

Warranty Information

Return Policy

Description

Specifications

Drive Shaft Torque at Maximum Pressure:

815 lb/ft

Drive Shaft Torque at Maximum Pressure:

1105 N·m

Drive Method:

Gerotor Motor - Direct Drive

Required Hydraulics:

Standard Flow

Optimal Hydraulic Flow:

75-90 L/min (20-24 gpm)

Optimal Hydraulic Pressure:

105-150 bar (1523-2176 psi)

Overall Width:

280 mm

Overall Width:

11 in

Overall Length:

282 mm

Overall Length:

11.1 in

Overall Height:

707 mm

Overall Height:

27.8 in

Housing Diameter:

280 mm

Housing Diameter:

11 in

Weight:

152.6 lb

Weight:

69.2 kg

Motor Displacement:

24 in³

Motor Displacement:

393 cm³

Bit Speed at Maximum Flow:

191 RPM

Hex Output Shaft Size:

2 in

Hex Output Shaft Size:

51 mm

Compatible Models

Mini Hyd Excavator

Warranty Information

Return Policy

Parts Diagrams

Enter equipment serial number or choose equipment from previously added list to see parts diagrams.

Select Equipment

Diagram

Description

Specifications

Compatible Models

Parts diagram for 225-3893

Description for part number 225-3893

Cat® Auger Drive Units are used as a replacement/upgrade to a customers already existing auger bracket. Cat auger drive units fit all existing brackets for the A11, A23, A41, and A68.

Specifications for part number 225-3893

Units of Measure

Metric

Drive Shaft Torque at Maximum Pressure:

815 lb/ft

Drive Shaft Torque at Maximum Pressure:

1105 N·m

Drive Method:

Gerotor Motor - Direct Drive

Required Hydraulics:

Standard Flow

Optimal Hydraulic Flow:

75-90 L/min (20-24 gpm)

Optimal Hydraulic Pressure:

105-150 bar (1523-2176 psi)

Overall Width:

280 mm

Overall Width:

11 in

Overall Length:

282 mm

Overall Length:

11.1 in

Overall Height:

707 mm

Overall Height:

27.8 in

Housing Diameter:

280 mm

Housing Diameter:

11 in

Weight:

152.6 lb

Weight:

69.2 kg

Motor Displacement:

24 in³

Motor Displacement:

393 cm³

Bit Speed at Maximum Flow:

191 RPM

Hex Output Shaft Size:

2 in

Hex Output Shaft Size:

51 mm

Compatible Models for part number 225-3893

MINI HYD EXCAVATOR

302.7D 301.7D CR 301.4C 302.4D 301.7D

AUGER

A7B A11
