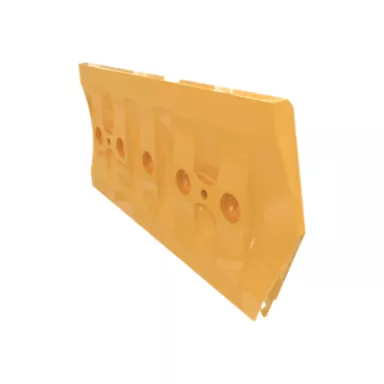

D11 EEWL（75 mm）
D11 EEWL（75 mm）
D9ファースト カッティング エッジ45 mm
D5，D6カッティング エッジ（19 mm）
カッティング エッジ19 mm
Cat® Right-Hand Side End Bitは、重機での切削性能と耐久性を向上させます。
Cat®726 mmロングエッジ・ブレード用左手側エンドビット
D5ファースト カッティング エッジ16mm
カッティング エッジ19 mm
D5ファースト カッティング エッジ16mm
D5，D6カッティング エッジ（19 mm）
D10ファースト カッティング エッジ（50 mm）
D5，D6カッティング エッジ（19 mm）
D5，D6カッティング エッジ（19 mm）
D11 EWL ARM 60mm
D11 EWL ARM 60mm
1 - 16/906を表示中
この部品は、メーカー仕様に基づいて、お使いのCAT機種に適合するように設計されています。
メーカーのコンフィギュレーションに変更があった場合、製品がお使いのCAT機種に適合しなくなることがあります。この部品が現在の状態および想定のコンフィギュレーションでお使いのCAT機種に適していることを確認するには、購入前に最寄りのCatディーラにお問い合わせください。このインジケータは、すべての部品について互換性を保証することはできません。
再生
返品不可
キット
交換済み
再生
返品不可
キット
交換済み
1 - 16/906を表示中
1 - 16/906を表示中
キャンセルすると、入力されたすべてのアタッチメントデータが消去されます。
REPARATUREN OHNE RÄTSELRATEN
Egal, ob Sie einen Fehlercode beheben, Schritt-für-Schritt-Reparaturanweisungen abrufen oder sicherstellen wollen, dass Sie die richtigen Teile haben - die Cat® SIS2GO App bietet alles, was Sie brauchen, um Ihre Geräte sicher zu reparieren.
REPARATUREN OHNE RÄTSELRATEN
Egal, ob Sie einen Fehlercode beheben, Schritt-für-Schritt-Reparaturanweisungen abrufen oder sicherstellen wollen, dass Sie die richtigen Teile haben - die Cat® SIS2GO App bietet alles, was Sie brauchen, um Ihre Geräte sicher zu reparieren.
Cat
Lower Hole Pattern
3-2
Lower Hole Spacing (mm)
75
End Bit Type
EEWL
Width (in)
20.63
Wear or Durability
Standard
Upper Hole Spacing (mm)
75
Overall Length (in)
32.421
Upper Hole Spacing (in)
2.953
Position
RH
Upper Hole Pattern
2-2
Lower Hole Spacing (in)
2.953
Thickness (in)
2.953
Hole Size
1-1/4-in Plow Bolt (36.5 mm square)
Material
Abrasion Resistant Steel
Cat
Lower Hole Pattern
3-2
Lower Hole Spacing (mm)
75
End Bit Type
EEWL
Width (in)
20.63
Wear or Durability
Standard
Upper Hole Spacing (mm)
75
Overall Length (in)
32.421
Upper Hole Spacing (in)
2.953
Position
LH
Upper Hole Pattern
2-2
Lower Hole Spacing (in)
2.953
Thickness (in)
2.953
Hole Size
1-1/4-in Plow Bolt (36.5 mm square)
Material
Abrasion Resistant Steel
Cat
Hole Spacing (in)
6
End 2 Hole Offset (mm)
120
Width (in)
12.992
Wear or Durability
Standard
Overall Length (in)
31.618
End 2 Hole Offset (in)
4.724
End 1 Hole Offset (in)
2.894
Position
RH/LH
End 2 Shape
Double Angled
Hole Quantity
5
End 1 Hole Offset (mm)
73.5
Edge Type
Continuous
End 1 Shape
Straight
Thickness (in)
1.772
Hole Size
1-in Plow Bolt (28 mm square)
Material
Boron Steel
Hole Spacing (mm)
152.4
Cat
Hole Spacing (in)
6
End 2 Hole Offset (mm)
119
Width (in)
8
Wear or Durability
Standard
Overall Length (in)
45.37
End 2 Hole Offset (in)
4.685
End 1 Hole Offset (in)
4.685
Position
RH/LH
End 2 Shape
Straight
Hole Quantity
7
End 1 Hole Offset (mm)
119
Edge Type
Continuous
End 1 Shape
Straight
Thickness (in)
0.748
Hole Size
3/4-in Plow Bolt (21 mm square)
Material
Boron Steel
Hole Spacing (mm)
152.4
Cat
厚さ（in）
0.7
幅（in）
10
長さ（in）
63.2
Hole Spacing (in)
6
End 2 Hole Offset (mm)
40.9
Wear or Durability
Standard
Overall Length (in)
63.22
End 2 Hole Offset (in)
1.61
End 1 Hole Offset (in)
1.61
Position
Center
End 2 Shape
Straight
Hole Quantity
11
End 1 Hole Offset (mm)
40.9
Edge Type
Continuous
End 1 Shape
Straight
Hole Size
3/4-in Plow Bolt (21 mm square)
Material
Boron Steel
Hole Spacing (mm)
152.4
Cat
Lower Hole Pattern
2-2
Lower Hole Spacing (mm)
75
End Bit Type
EEWL
Width (in)
18.78
Wear or Durability
Standard
Upper Hole Spacing (mm)
75
Overall Length (in)
28.583
Upper Hole Spacing (in)
2.953
Position
RH
Upper Hole Pattern
2-1
Lower Hole Spacing (in)
2.953
Thickness (in)
2.362
Hole Size
1-1/4-in Plow Bolt (36.5 mm square)
Material
Abrasion Resistant Steel
Cat
Lower Hole Pattern
2-2
Lower Hole Spacing (mm)
75
End Bit Type
EEWL
Width (in)
18.78
Wear or Durability
Standard
Upper Hole Spacing (mm)
75
Overall Length (in)
28.583
Upper Hole Spacing (in)
2.953
Position
LH
Upper Hole Pattern
2-1
Lower Hole Spacing (in)
2.953
Thickness (in)
2.362
Hole Size
1-1/4-in Plow Bolt (36.5 mm square)
Material
Abrasion Resistant Steel
Cat
Hole Spacing (in)
6
End 2 Hole Offset (mm)
84
Width (in)
8
Wear or Durability
Standard
Overall Length (in)
36.614
End 2 Hole Offset (in)
3.307
End 1 Hole Offset (in)
3.307
Position
RH/LH
End 2 Shape
Straight
Hole Quantity
6
End 1 Hole Offset (mm)
84
Edge Type
Continuous
End 1 Shape
Straight
Thickness (in)
0.63
Hole Size
3/4-in Plow Bolt (21 mm square)
Material
Boron Steel
Hole Spacing (mm)
152.4
Cat
Hole Spacing (in)
6
End 2 Hole Offset (mm)
99.5
Width (in)
8
Wear or Durability
Standard
Overall Length (in)
43.835
End 2 Hole Offset (in)
3.917
End 1 Hole Offset (in)
3.917
Position
Center
End 2 Shape
Straight
Hole Quantity
7
End 1 Hole Offset (mm)
99.5
Edge Type
Continuous
End 1 Shape
Straight
Thickness (in)
0.748
Hole Size
3/4-in Plow Bolt (21 mm square)
Material
Boron Steel
Hole Spacing (mm)
152.4
Cat
Hole Spacing (in)
6
End 2 Hole Offset (mm)
90.7
Width (in)
6.496
Wear or Durability
Standard
Overall Length (in)
49.154
End 2 Hole Offset (in)
3.571
End 1 Hole Offset (in)
3.583
Position
RH/LH
End 2 Shape
Straight
Hole Quantity
8
End 1 Hole Offset (mm)
91
Edge Type
Continuous
End 1 Shape
Straight
Thickness (in)
0.63
Hole Size
5/8-in Plow Bolt (18 mm square)
Material
Boron Steel
Hole Spacing (mm)
152.4
Cat
Hole Spacing (in)
6
End 2 Hole Offset (mm)
99.3
Width (in)
8
Wear or Durability
Standard
Overall Length (in)
27.217
End 2 Hole Offset (in)
3.909
End 1 Hole Offset (in)
3.181
Position
RH/LH
End 2 Shape
Angled Up
Hole Quantity
4
End 1 Hole Offset (mm)
80.8
Edge Type
Continuous
End 1 Shape
Straight
Thickness (in)
0.748
Hole Size
3/4-in Plow Bolt (21 mm square)
Material
Boron Steel
Hole Spacing (mm)
152.4
Cat
Hole Spacing (in)
6
End 2 Hole Offset (mm)
138.4
Width (in)
15.984
Wear or Durability
High Abrasion
Overall Length (in)
33.819
End 2 Hole Offset (in)
5.449
End 1 Hole Offset (in)
4.37
Position
RH/LH Intmd
End 2 Shape
Double Angled
Hole Quantity
5
End 1 Hole Offset (mm)
111
Edge Type
High Abrasion
End 1 Shape
Straight
Thickness (in)
1.969
Hole Size
1-1/4-in Plow Bolt (36.5 mm square)
Material
Abrasion Resistant Steel
Hole Spacing (mm)
152.4
Cat
Hole Spacing (in)
6
End 2 Hole Offset (mm)
75.6
Width (in)
8
Wear or Durability
Standard
Overall Length (in)
40.22
End 2 Hole Offset (in)
2.976
End 1 Hole Offset (in)
2.976
Position
LH Intmd
End 2 Shape
Angled Up
Hole Quantity
6
End 1 Hole Offset (mm)
75.6
Edge Type
Continuous
End 1 Shape
Angled Up
Thickness (in)
0.748
Hole Size
3/4-in Plow Bolt (21 mm square)
Material
Boron Steel
Hole Spacing (mm)
152.4
Cat
Hole Spacing (in)
6
End 2 Hole Offset (mm)
79.8
Width (in)
8
Wear or Durability
Standard
Overall Length (in)
36.283
End 2 Hole Offset (in)
3.142
End 1 Hole Offset (in)
3.142
Position
RH
End 2 Shape
Straight
Hole Quantity
6
End 1 Hole Offset (mm)
79.8
Edge Type
Continuous
End 1 Shape
Straight
Thickness (in)
0.748
Hole Size
3/4-in Plow Bolt (21 mm square)
Material
Boron Steel
Hole Spacing (mm)
152.4
Cat
Lower Hole Pattern
3-2
Lower Hole Spacing (mm)
75
End Bit Type
EWL
Width (in)
19.567
Wear or Durability
ARM
Upper Hole Spacing (mm)
75
Overall Length (in)
32.185
Upper Hole Spacing (in)
2.953
Position
LH
Upper Hole Pattern
2-2
Lower Hole Spacing (in)
2.953
Thickness (in)
2.362
Hole Size
1-1/4-in Plow Bolt (36.5 mm square)
Material
Low Alloy Steel,Alloy Mixed: Metal
Cat
Lower Hole Pattern
3-2
Lower Hole Spacing (mm)
75
End Bit Type
EWL
Width (in)
19.567
Wear or Durability
ARM
Upper Hole Spacing (mm)
75
Overall Length (in)
32.185
Upper Hole Spacing (in)
2.953
Position
RH
Upper Hole Pattern
2-2
Lower Hole Spacing (in)
2.953
Thickness (in)
2.362
Hole Size
1-1/4-in Plow Bolt (36.5 mm square)
Material
Alloy Mixed: Metal,Low Alloy Steel
