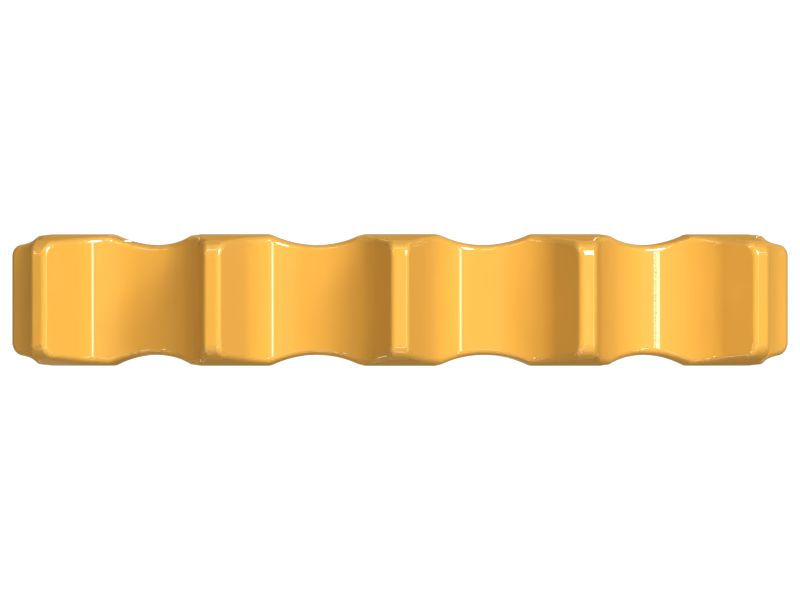

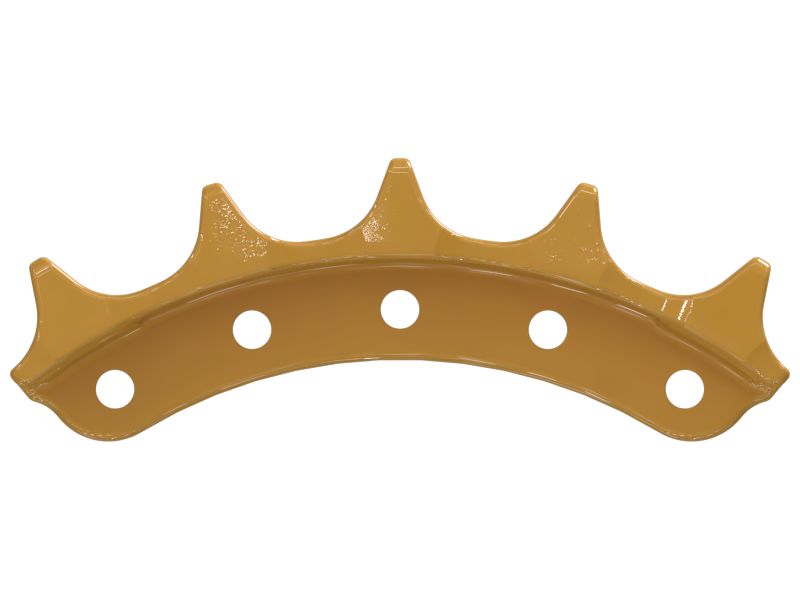

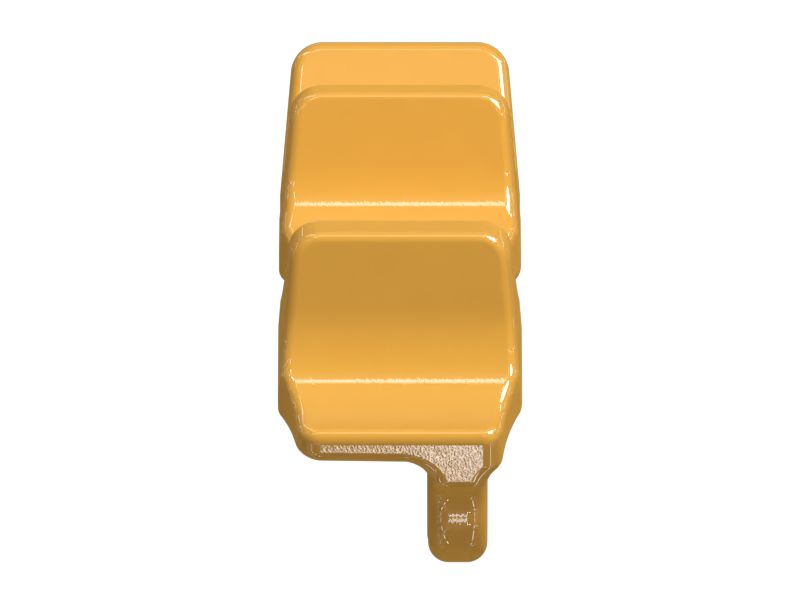

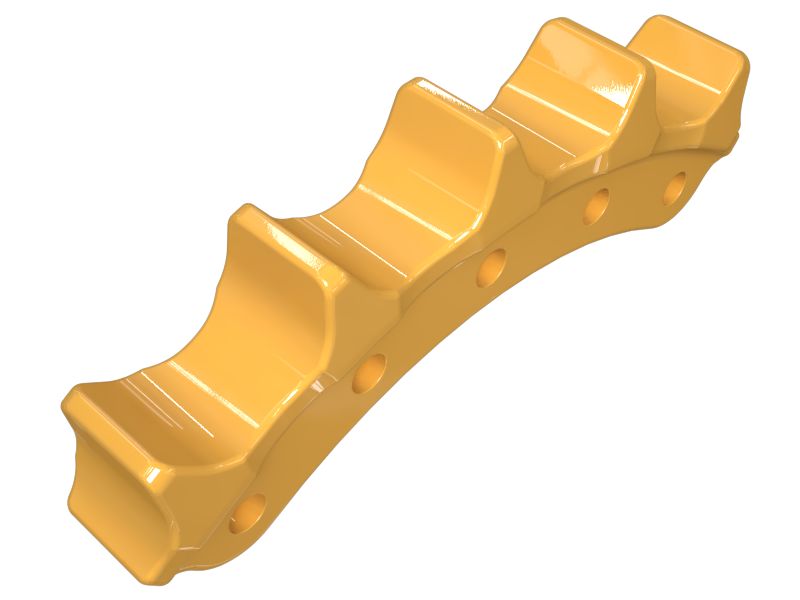

609-3880: 鏈輪段

Cat® Track Segment Plain Steel, 5 Bolts, 5 Teeth, 260.82mm Track Pitch

品牌: Cat

產品影像

609-3880: 鏈輪段

Cat® Track Segment Plain Steel, 5 Bolts, 5 Teeth, 260.82mm Track Pitch

品牌: Cat

是否適合，還是在尋找維修？新增您的設備，查看此零件是否適合或是否提供維修選項。

檢查價格

登入以檢視您的客戶價格

保固資訊

退貨政策

描述

The Sprocket Segment serves to drive and maintain track tension, segment meshes with the track links, transferring power from the drive system to propel the equipment forward and backward. It ensures smooth engagement with the track and facilitates efficient power transmission, maintaining optimal performance in different terrain conditions. Distributing load evenly across the track enhances durability and minimizes wear, thereby extending the operational life of the equipment.

Attributes:
• Facilitates smooth power transmission.
• Distributes load evenly across the track.
• Maintains optimal track tension.
• Enhances durability and reduces wear.

Applications:
The Sprocket Segment engages with the track links to efficiently transfer power from the drive system, ensuring smooth propulsion in diverse terrain conditions.
