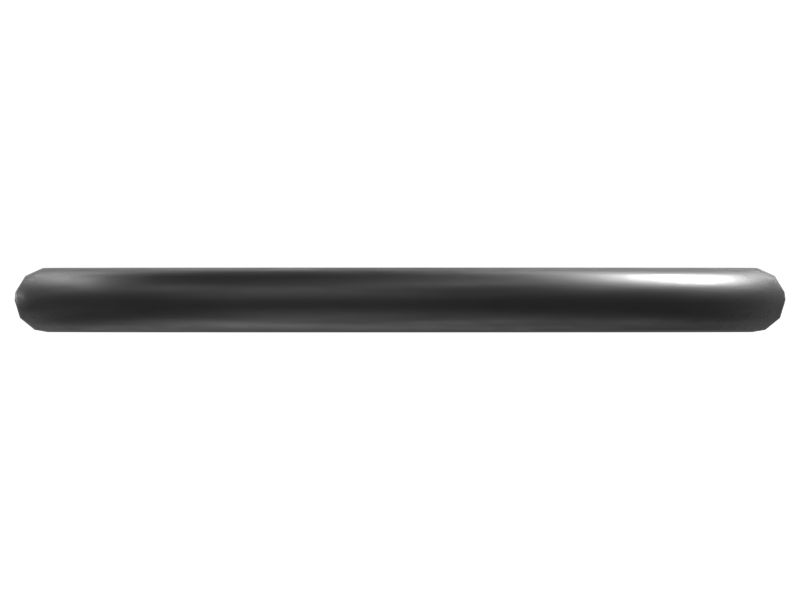

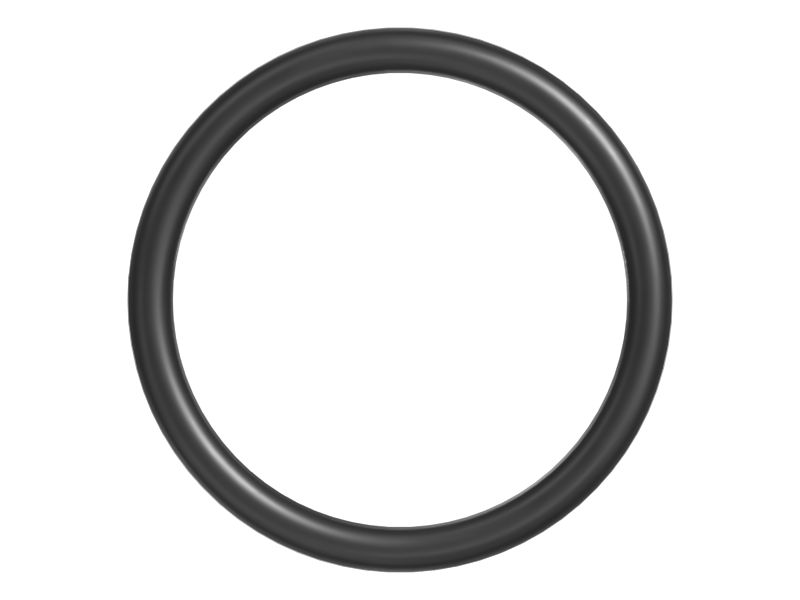

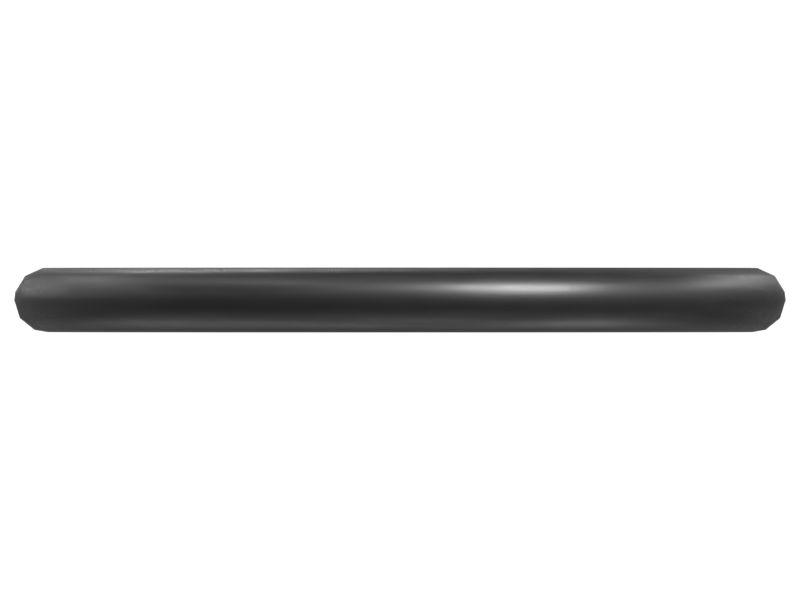

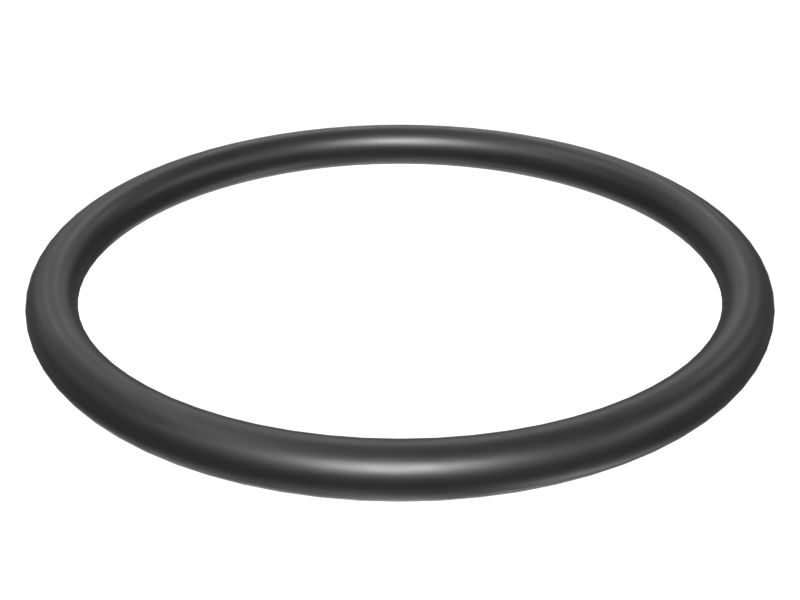

Description: O-Rings are used in static sealing and some dynamic applications.Cat® O-Rings are made from materials that are matched to the fluids, temperatures and pressures found in Cat engines and machines. The materials resist wear and extrusion, and provide superior resistance to seal compression set. In addition, certain Cat O-Rings are coated with PTFE to minimize seal twisting and cutting during seal installation. Dimensions of our O-Rings are consistently held to tight tolerances to ensure they fit properly into seal grooves with the necessary seal compression. With over 2500 O-Rings in different sizes and materials, Cat O-Rings are your best solution for your Cat and other mobile equipment O-Ring needs. Cat Sealing systems protect more expensive parts from leaks and contamination. Protect your investment with Genuine Cat Seals. O-Rings are used in many static and dynamic joints throughout Cat machines and engines.
View More
Warning:This product can expose you to chemicals including 1,3-Butadiene, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Material Description: Nitrile (NBR) rubber is capable of service temperatures of -40 to 100C and is resistant to fuel oils, gasoline, ultra low sulfur diesel fuel and lubricants. Nitrile rubber is not recommended for applications that require resistance to bio-diesel or coolant.
Notes: Dimensions and material descriptions provided for reference only.
Polymer: NBR (Nitrile butadiene)
Applications: Ambient temperature fuel handling; High and low pressure LPG service; Hydraulic fluids (to 10,335 kPa/1,500 psi); Power steering seals; Radiator thermostat seals
Material Hardness: 90A
Not Compatible With: Automotive and aircraft brake fluids; High levels of ozone; Ketones; Phosphate ester fluids; Strong acids; UV light
Compatible With: Abrasion resistant; Alpha-Olefin base synthetic lubricants; Ethylene Glycol; Hydrocarbon fuels; Petroleum base lubricants; Silicone oils and greases; Water, water base engine coolants; ORFS, STORS seals
Temperature (°C): -40 - 100
Dash Size: 916
Temperature (°F): -40 - 212
Fitting Size (in): 1-5/16 – 12
O-Ring Type: Straight Thread O-ring (STOR)
View More
Compatible Models for part number 7M-8485
GENERATOR
SR4B SR4 SR4BHV
TRUCK ENGINE
3408B 3406E 3406C 3406B 3306C C-15 1693 3408 3406
INTEGRATED TOOLCARRIER
IT12B IT14G IT28G IT28F IT28B IT18B
WHEEL SKIDDER
525 518 528
MINI HYD EXCAVATOR
301.8 307D 301.6 301.6C 301.8C 306 305.5
TRACK FELLER BUNCHER
1190 1390 TK751 1190T 1090
EXCAVATOR
320-A L 320-A N 321B 350-A L 350 L M325D MH 320N 245B 320 L M325D L MH 323F SA 225 235 320-A 215 375-A 245 M312 M315 M318
Description: O-Rings are used in static sealing and some dynamic applications.Cat® O-Rings are made from materials that are matched to the fluids, temperatures and pressures found in Cat engines and machines. The materials resist wear and extrusion, and provide superior resistance to seal compression set. In addition, certain Cat O-Rings are coated with PTFE to minimize seal twisting and cutting during seal installation. Dimensions of our O-Rings are consistently held to tight tolerances to ensure they fit properly into seal grooves with the necessary seal compression. With over 2500 O-Rings in different sizes and materials, Cat O-Rings are your best solution for your Cat and other mobile equipment O-Ring needs. Cat Sealing systems protect more expensive parts from leaks and contamination. Protect your investment with Genuine Cat Seals. O-Rings are used in many static and dynamic joints throughout Cat machines and engines.
View More
Warning:This product can expose you to chemicals including 1,3-Butadiene, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Material Description: Nitrile (NBR) rubber is capable of service temperatures of -40 to 100C and is resistant to fuel oils, gasoline, ultra low sulfur diesel fuel and lubricants. Nitrile rubber is not recommended for applications that require resistance to bio-diesel or coolant.
Notes: Dimensions and material descriptions provided for reference only.
Polymer: NBR (Nitrile butadiene)
Applications: Ambient temperature fuel handling; High and low pressure LPG service; Hydraulic fluids (to 10,335 kPa/1,500 psi); Power steering seals; Radiator thermostat seals
Material Hardness: 90A
Not Compatible With: Automotive and aircraft brake fluids; High levels of ozone; Ketones; Phosphate ester fluids; Strong acids; UV light
Compatible With: Abrasion resistant; Alpha-Olefin base synthetic lubricants; Ethylene Glycol; Hydrocarbon fuels; Petroleum base lubricants; Silicone oils and greases; Water, water base engine coolants; ORFS, STORS seals
Temperature (°C): -40 - 100
Dash Size: 916
Temperature (°F): -40 - 212
Fitting Size (in): 1-5/16 – 12
O-Ring Type: Straight Thread O-ring (STOR)
View More
Compatible Models for part number 7M-8485
GENERATOR
SR4B SR4 SR4BHV
TRUCK ENGINE
3408B 3406E 3406C 3406B 3306C C-15 1693 3408 3406
INTEGRATED TOOLCARRIER
IT12B IT14G IT28G IT28F IT28B IT18B
WHEEL SKIDDER
525 518 528
MINI HYD EXCAVATOR
301.8 307D 301.6 301.6C 301.8C 306 305.5
TRACK FELLER BUNCHER
1190 1390 TK751 1190T 1090
EXCAVATOR
320-A L 320-A N 321B 350-A L 350 L M325D MH 320N 245B 320 L M325D L MH 323F SA 225 235 320-A 215 375-A 245 M312 M315 M318
This part is designed to fit your Cat equipment based on the manufacturer’s specifications.
Any changes to the manufacturer’s configuration might result in the product not fitting your Cat equipment. Please consult your Cat Dealer before purchasing to ensure that this part is appropriate for your Cat equipment in its current condition and assumed configuration. This indicator cannot guarantee compatibility for all parts.
