503-1424: 454mm Inner Diameter Fan Type Clutch Plate
Cat® 454 Inner Diameter Transmission Planetary Clutch Plate enables smooth gear changes in automatic transmissions for efficient power transfer and performance
Brand: Cat
Product Images

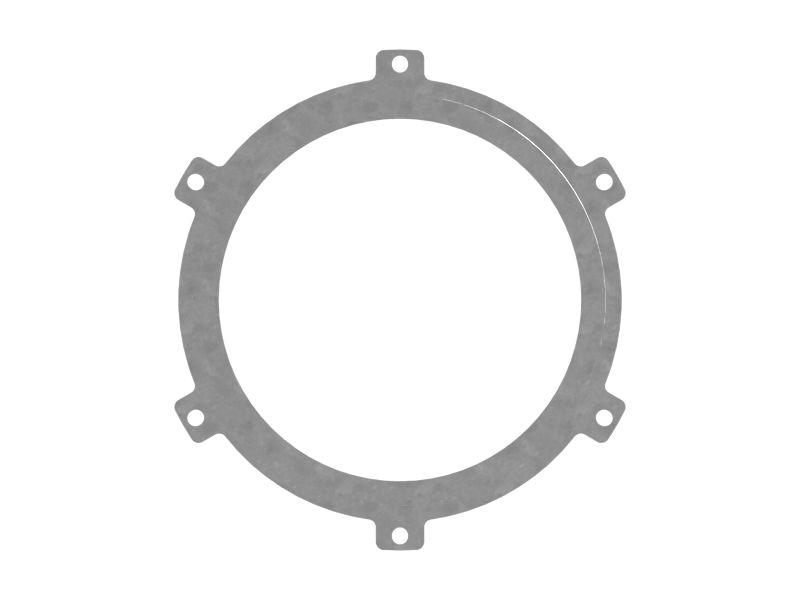

503-1424: 454mm Inner Diameter Fan Type Clutch Plate
Cat® 454 Inner Diameter Transmission Planetary Clutch Plate enables smooth gear changes in automatic transmissions for efficient power transfer and performance
Description: Cat drive train components must endure incredible torque, high impact loads, and frequent direction and gear changes. Cat designs and manufactures its transmissions and final drive components with these demands in mind. The result is a drive train that lasts longer and works harder over the life of the machine. Cat clutch plates are a key component in the planetary assemblies that power tough Cat transmissions to convert engine power into the exact combination of speed and force required by individual machines.
Attributes: • Hardened steel clutch plate • Six external flanges with dowel clearance holes provide exact OEM fit • Inside Diameter: 454 mm (17.874 in) • Thickness: 6.35 mm (0.250 in)
Application: Consult your owner's manual or contact your local Cat Dealer for more information.
Warning:This product can expose you to chemicals including Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Description: Cat drive train components must endure incredible torque, high impact loads, and frequent direction and gear changes. Cat designs and manufactures its transmissions and final drive components with these demands in mind. The result is a drive train that lasts longer and works harder over the life of the machine. Cat clutch plates are a key component in the planetary assemblies that power tough Cat transmissions to convert engine power into the exact combination of speed and force required by individual machines.
Attributes: • Hardened steel clutch plate • Six external flanges with dowel clearance holes provide exact OEM fit • Inside Diameter: 454 mm (17.874 in) • Thickness: 6.35 mm (0.250 in)
Application: Consult your owner's manual or contact your local Cat Dealer for more information.
Warning:This product can expose you to chemicals including Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Specifications
Specifications
Units of MeasureUSMetric
Material Description: Steel
Inside Diameter (mm): 454
Thickness (mm): 6.35
Inside Diameter (in): 17.874
Thickness (in): 0.25
Material: Carbon Steel
Units of MeasureUSMetric
Material Description: Steel
Inside Diameter (mm): 454
Thickness (mm): 6.35
View More
