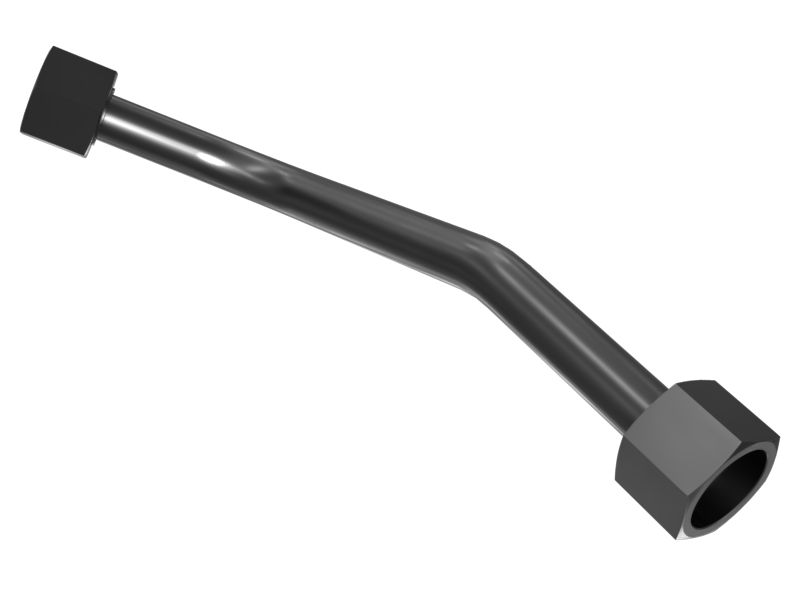

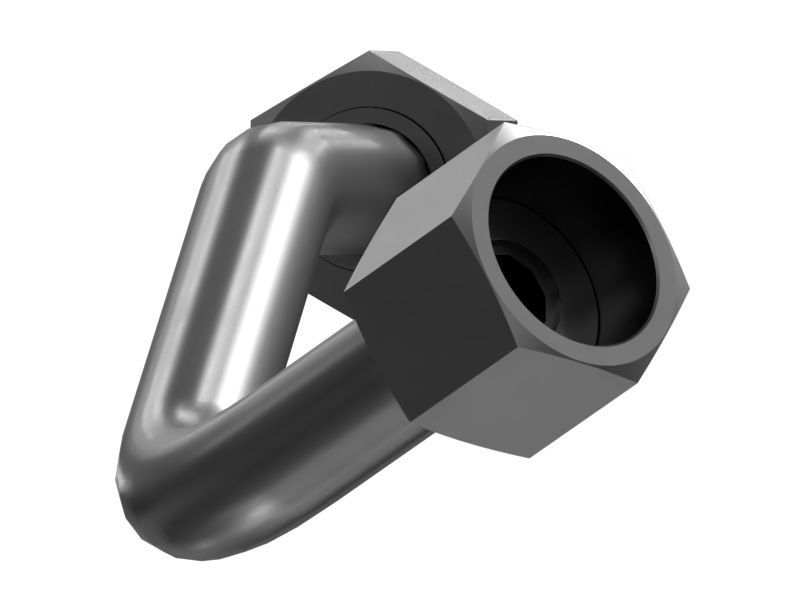

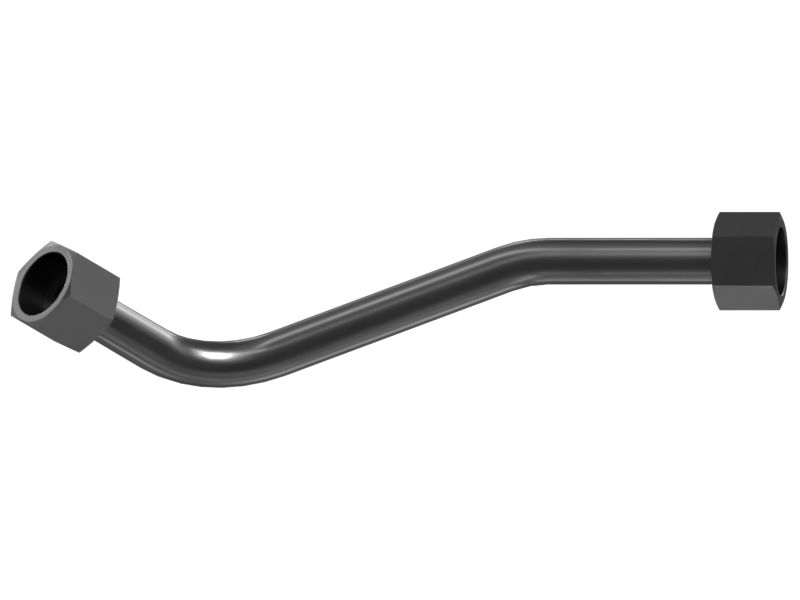

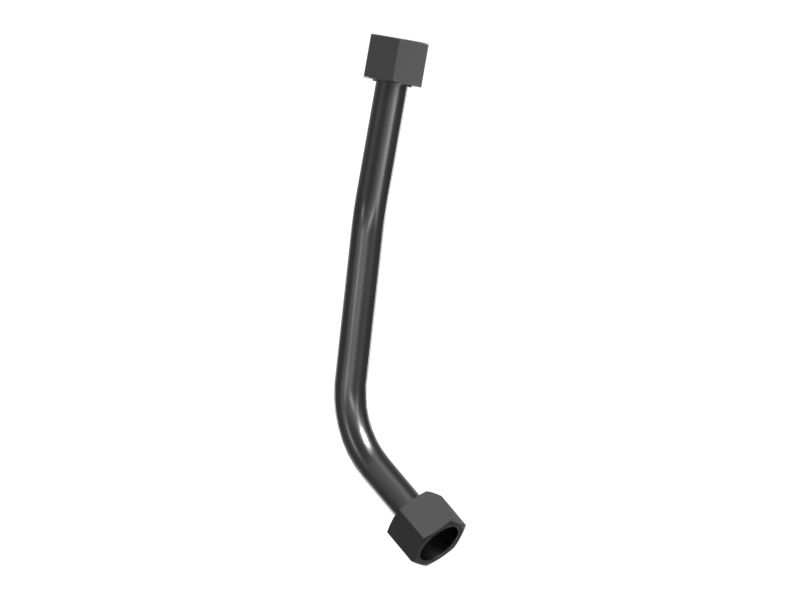

A Hydraulic Tube Assembly is fitted with various types of connectors and fittings to transfer fluids between components and provide a leak-free seal. It consists of a bulk tube, O-Ring Face Seal (ORFS) sleeves, and swivel nuts that are connected to the tee adapter and the hydraulic pump to carry the fluid in the hydraulic lines. The tubes are often bent and routed to fit within the available space and provide an efficient flow of fluid.

Attributes:
• Provided with swivel nuts for the secure connection
• Withstands a working pressure of 29000kPa and a minimum burst pressure of 116000kPa without deforming or breaking

Applications:
A Hydraulic Tube Assembly is used to provide a means for transferring hydraulic fluid between the tee adapter and the hydraulic pump in the hydraulic lines on the loader frame, ensuring the proper function of the pump.
