REQUIRED For Replacement labeled Engines, Long Blocks, and short blocks sold within the U.S. and U.S. Territories the engine core (i.e. old engine) that is removed MUST be returned to your selling Caterpillar dealer, so that they can return to Caterpillar  OR  destroy, as required by law. Proof of return or destruction will then be provided to the EPA and or California ARB if required. See PELJ1301 for additional details.

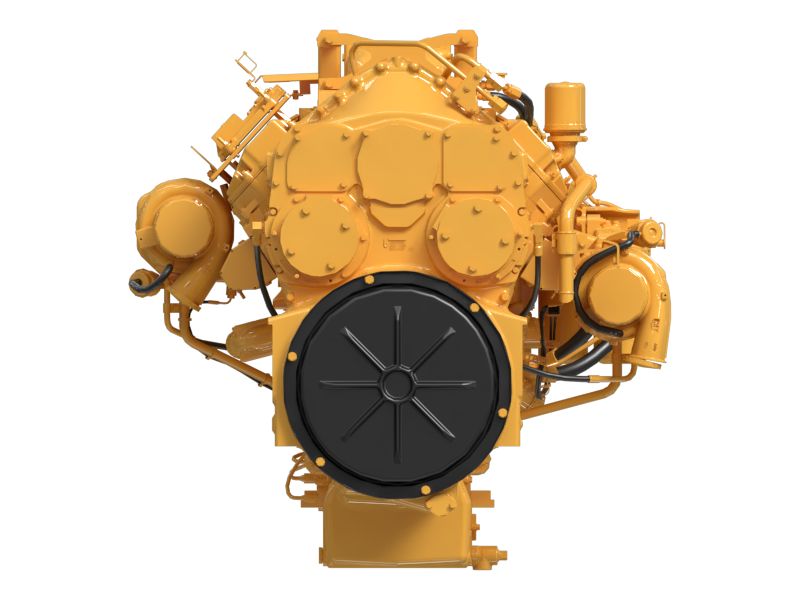

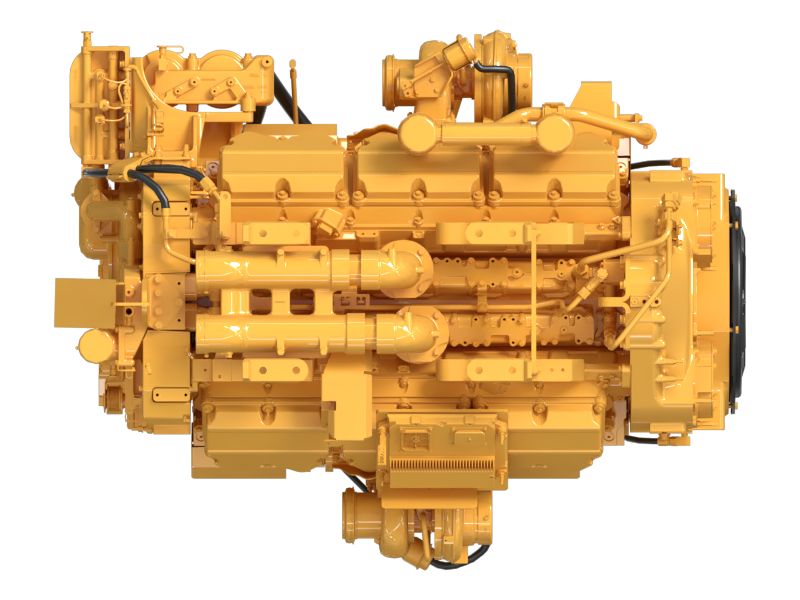

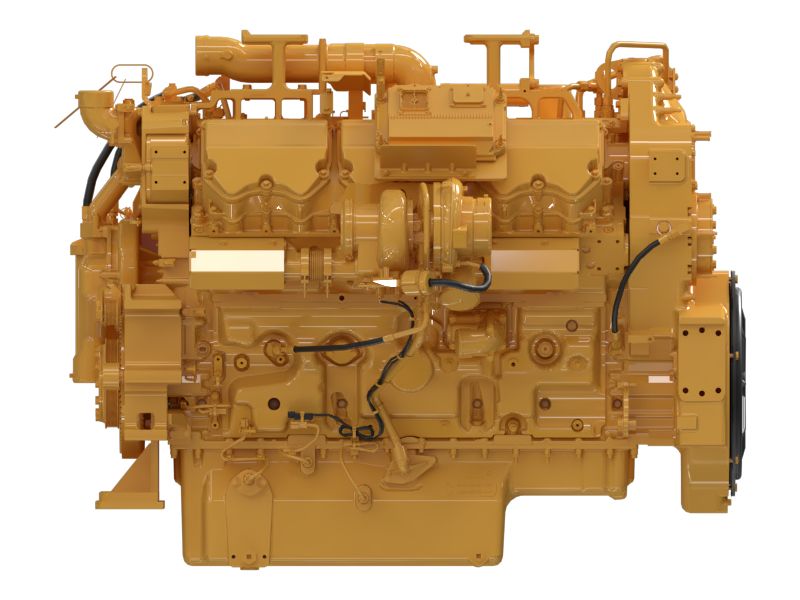

The Primary Engine Arrangement is a comprehensive system that organizes and connects the main engine components, including the crankshaft, pistons, cylinders, and fuel system. It serves as the core structure of the equipment, providing support and alignment for the engine parts while facilitating the transfer of power generated by combustion. It integrates fuel injection, ignition, and exhaust systems to facilitate smooth operation, its function is paramount, as it translates fuel energy into rotational force. This arrangement ensures smooth functionality and maximizes power output.

Attributes:
• Has a rated speed of 1800 revolutions per minute.
• Advanced engine management system for control.
• Withstands high loads and high torque.
• Reinforced mounting points for stability.
• Corrosion-resistant materials for enhanced durability.
• Designed to minimize noise and vibration transmission.

Applications:
The Primary Engine Arrangement is centrally located within the equipment to house and organize the engine components compactly and efficiently, ensuring proper alignment and functionality facilitating power generation through combustion, and transmitting it to other mechanical components for different operations.
