Wear Protection
Wear Protection
1 - 16 of 161 results
Sort By
1 - 16 of 161 results

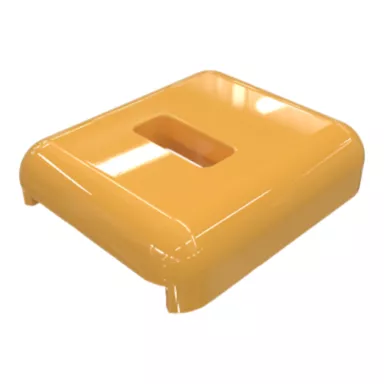

138-0052: Mawps Wear Plate
Shop Cat® 50 Series MAWPS wear plate part 138-0052 for your ground engaging machine.
Cat
Length (in)
11.811
Material
Low Alloy Steel
Wear or Durability
Standard
Thickness (in)
2.953
Series
50 Series
Width (in)
9.843

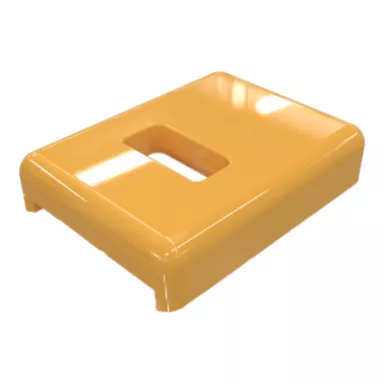

138-0033: Mawps Wear Plate
Cat® 30 Series Heavy Duty MAWPS Wear Plate
Cat
Length (in)
10.827
Material
Low Alloy Steel
Wear or Durability
Heavy Duty
Thickness (in)
2.362
Series
30 Series
Width (in)
7.874

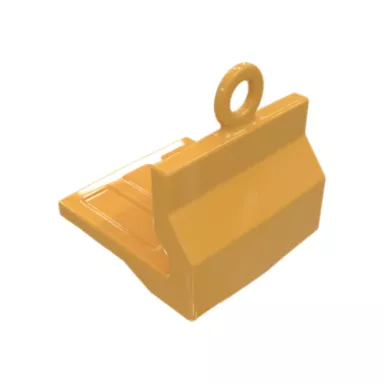

138-6551: Bucket Heel Shroud
Cat® 41 mm x 178 mm Curved Weld-On Heel Shroud
Cat
Bottom Strap Thickness (in)
1.614
Length (in)
8.0
Material
Low Alloy Steel
Wear or Durability
Standard
Lip Height (in)
1.6
Height (in)
6.0
Side Strap Length (in)
5.984
Shape
Curved
Attachment Method
Weld-on
Shroud Shape
Curved
Bottom Strap Length (in)
7.992
Width (in)
7.008
138-0032: Mawps Wear Plate
Cat® 30 Series MAWPS Wear Plate
Cat
Length (in)
10.827
Material
Low Alloy Steel
Wear or Durability
Standard
Thickness (in)
1.772
Series
30 Series
Width (in)
7.874
157-1027: Bucket Heel Shroud
Cat® 50 mm x 254 mm Curved Weld-On Heel Shroud
Cat
Bottom Strap Thickness (in)
1.969
Length (in)
10.6
Material
Low Alloy Steel
Wear or Durability
Standard
Lip Height (in)
2.0
Height (in)
8.0
Shape
Curved
Side Strap Length (in)
7.874
Attachment Method
Weld-on
Shroud Shape
Curved
Bottom Strap Length (in)
10.63
Width (in)
9.843

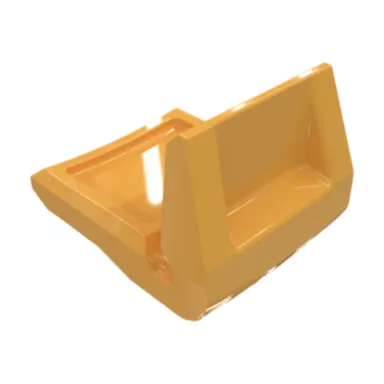

138-6529: Bucket Heel Shroud
Cat® 41 mm x 178 mm Straight Weld-On Heel Shroud
Cat
Bottom Strap Thickness (in)
1.614
Side Strap Length (in)
5.984
Length (in)
8.0
Material
Low Alloy Steel
Wear or Durability
Standard
Lip Height (in)
1.6
Height (in)
6.0
Shape
Straight
Attachment Method
Weld-on
Shroud Shape
Straight
Bottom Strap Length (in)
7.992
Width (in)
7.008

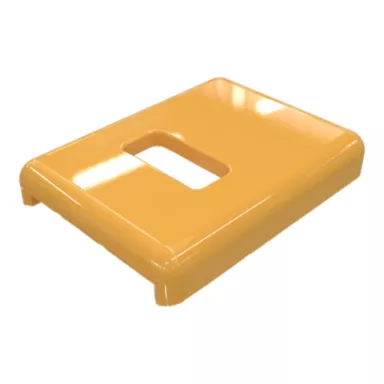

138-0006: Mawps Retainer
Cat® 10 Series/20 Series/30 Series/40 Series Retainer
Cat
Notes
MAWPS 10-40 series plus skeleton
Length (in)
3.543
Material
Alloy Steel
Thickness (in)
0.394
Series
10 Series/20 Series/30 Series
Width (in)
1.575
417-5696: Bucket Heel Shroud
Cat® 65 mm x 250 mm Curved Weld-On Heel Shroud
Cat
Material
Steel,Carbon Steel,Low Alloy Steel,Gray (Flake) Iron
Overall Length (in)
11.811
Overall Width (in)
9.843
Overall Height (in)
8.465
Bottom Strap Thickness (in)
2.559
Wear or Durability
Standard
Shape
Curved
Side Strap Length (in)
8.465
Attachment Method
Weld-on
Bottom Strap Length (in)
11.811
Width (in)
9.843

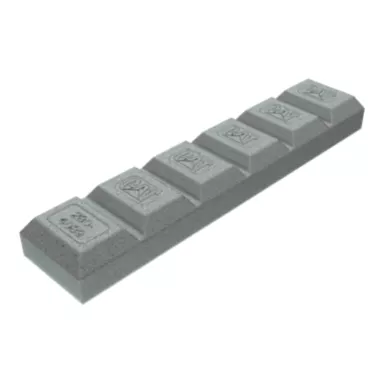

280-4088: Chocky Bar
Cat® 241 mm x 38 mm Chocky Bar
Cat
Length (in)
9.488
Material
Alloy Copper
Thickness (in)
0.984
Width (in)
1.496
280-4089: Chocky Bar
Cat® 241 mm x 51 mm Chocky Bar
Cat
Length (in)
9.488
Material
Alloy Copper
Thickness (in)
0.984
Width (in)
2.008

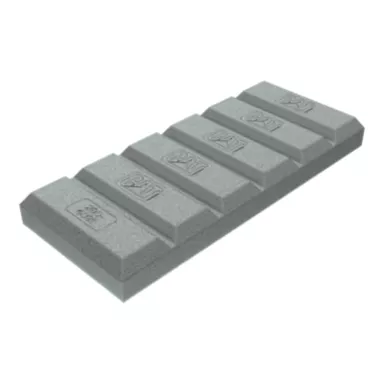

280-4091: Chocky Bar
Cat® 241 mm x 102 mm Chocky Bar
Cat
Length (in)
9.488
Material
Alloy Copper
Thickness (in)
0.984
Width (in)
4.016
157-1019: Bucket Heel Shroud
Cat® 50 mm x 254 mm Straight Weld-On Heel Shroud
Cat
Bottom Strap Thickness (in)
1.969
Length (in)
10.6
Material
Low Alloy Steel
Wear or Durability
Standard
Lip Height (in)
2.0
Height (in)
8.0
Side Strap Length (in)
7.874
Shape
Straight
Attachment Method
Weld-on
Shroud Shape
Straight
Bottom Strap Length (in)
10.63
Width (in)
9.843

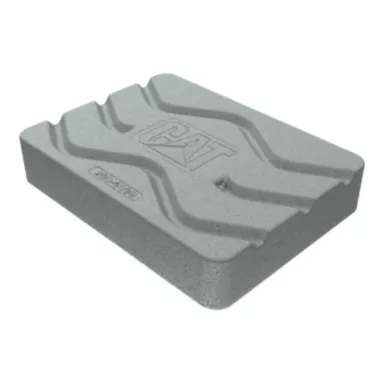

280-4099: Wear Block
Cat® 38 mm Wear Block
Cat
Length (in)
8.0
Material
Alloy Copper
Thickness (in)
1.496
Width (in)
6.0
280-4090: Chocky Bar
Cat® 241 mm x 64 mm Chocky Bar
Cat
Length (in)
9.488
Material
Alloy Copper
Thickness (in)
0.984
Width (in)
2.52

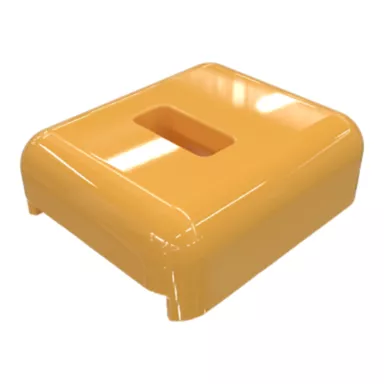

138-0053: Mawps Wear Plate
Cat® 50 Series Heavy Duty MAWPS Wear Plate
Cat
Length (in)
11.811
Material
Low Alloy Steel
Wear or Durability
Heavy Duty
Thickness (in)
3.937
Series
50 Series
Width (in)
9.843
438-4558: Bucket Heel Shroud
Cat® 99 mm x 244 mm Straight Weld-On PTA Heel Shroud
Cat
Bottom Strap Thickness (in)
3.898
Material
Alloy Steel
Wear or Durability
Pta
Shape
Straight
Side Strap Length (in)
9.37
Attachment Method
Weld-on
Bottom Strap Length (in)
13.74
Width (in)
9.606
Key
Key
Factory Fit
This part is designed to fit your Cat equipment based on the manufacturer’s specifications.
Any changes to the manufacturer’s configuration might result in the product not fitting your Cat equipment. Please consult your Cat Dealer before purchasing to ensure that this part is appropriate for your Cat equipment in its current condition and assumed configuration. This indicator cannot guarantee compatibility for all parts.
Remanufactured
Non-Returnable
Kit
Replaced
Cat® Wear Protection is designed to protect your Cat machines, buckets and other valuable equipment components so you have less downtime and greater productivity. Our wide variety of product designs and sizes provide you with maximum wear protection in virtually any type of environment or application.
Tough Machines Need Tough Protection
Chocky Bar

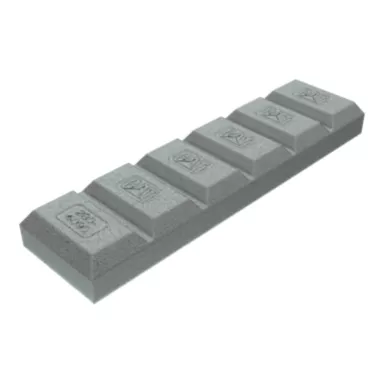

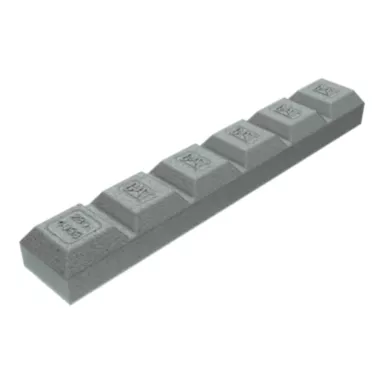

This distinct shape conforms to a variety of surfaces and applications. The “V-grove” design allows the bars to be bent around a side-bucket profile or separated to meet different length requirements.Mechanically Attached Wear Plate System (MAWPS)

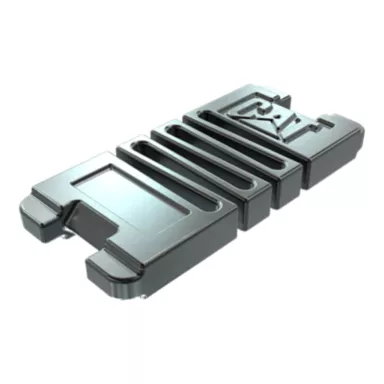

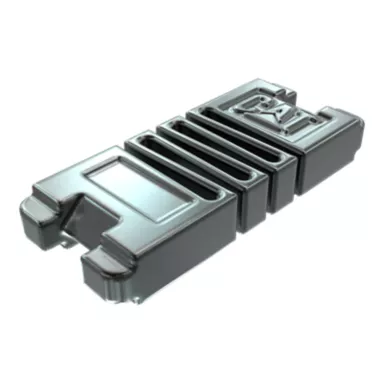

The solid MAWPS is designed for extended wear protection in a variety of areas, such as bucket bottoms and sides, dozer push arms, hydraulic excavator ski runners and sides and crusher hoppers. It offers equivalent wear protection at less weight than weld-on or bolt-on wear plates. The compression retainer provides a hammerless method of installation and removal that takes about two minutes, reducing downtime during replacement. The retainer snaps into place to firmly hold the wear plate to the base plate. See below for our MAWPS replacement kits.Heal Shrouds (Straight and Curved)

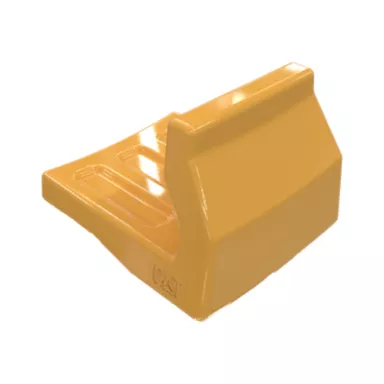

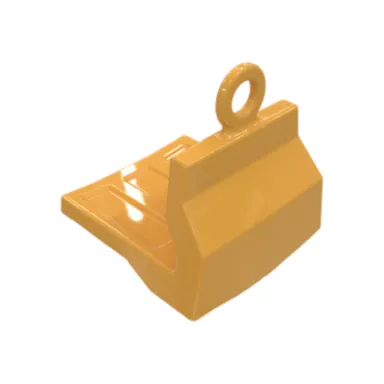

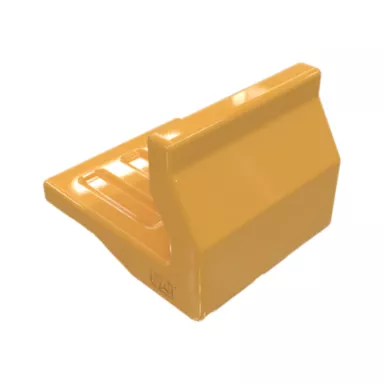

Heel shrouds wrap around the lower outside bucket corners and provide extra durability for more productivity. Cat weld-on heel shrouds are specifically reinforced on the inside corner to prevent interference with the bucket structure and weld joints. Heal Shrouds are available straight and curved, and in two different sizes, to best match bucket size. Wear Button - Four different sizes of “tri-bar” design protect your engines and buckets.Wear Block
Cat wear blocks offer a thicker profile for extended wear life. The zigzag design reduces wear found in parallel-channel products.Roll Bar
Cat roll bars provide maximum protection while minimizing wear as the edge moves through material. They also deflect impact, improve material penetration and weigh less than other options.Bolt Protectors
Designed to provide maximum protection to hardware and retention components, Cat bolt protectors are welded around the components to protect them from wear. Chrome white iron and a mild steel backing plate combine for a uniquely engineered design that provides an effective solution for a wide range of environments.Consult with your nearby Cat dealer today for the wear protection products that will best match your needs.
