Valmistajan teknisten tietojen perusteella tämä osa on suunniteltu sopimaan Cat-laitteeseesi.
Mahdolliset muutokset valmistajan kokoonpanoon voivat johtaa siihen, että tuote ei sovi Cat-laitteeseesi. Ota yhteyttä Cat-edustajaan ennen ostoa varmistaaksesi, että tämä osa sopii Cat-laitteeseesi sen nykyisessä tilassa ja oletetussa kokoonpanossa. Tämä osoitin ei takaa kaikkien osien yhteensopivuutta.
Tehdaskunnostettu
Ei-palautettava
Sarja
Vaihdettu
Cat® Rolling components in tracked machines include carrier rollers, track rollers, idlers, and sprockets. These parts rotate to support and guide the track system.
Reasons to Choose Cat:
Bottom Line: Caterpillar rolling components keep your machine running stronger, longer, and more efficiently, no matter the jobsite.
Cat® Idler Group Standard Application, 292mm Rim Width, Interchangeable, 766mm Tread Diameter, Conventional Tread
Cat
Tread Diameter (in)
30,157
Tread Type
Conventional Tread
Application
Standard Application
Center Flange Diameter (in)
31.732
Center Flange Width (in)
5.217
UC System
HD
Shaft Length (in)
21.693
Shaft Protrusion Length (in)
2.733
Idler Rim Width (in)
11.496
Machine Side
Interchangeable
Shaft OD (in)
5.365
Cat® Idler Group Standard Application, 338mm Rim Width, Interchangeable, 892mm Tread Diameter, Conventional Tread
Cat
Tread Diameter (in)
35,118
Tread Type
Conventional Tread
Application
Standard Application
Center Flange Width (in)
5.886
Center Flange Diameter (in)
36.693
UC System
HD
Shaft Length (in)
24.921
Shaft Protrusion Length (in)
2.851
Idler Rim Width (in)
13.307
Machine Side
Interchangeable
Shaft OD (in)
6.389
Cat®-telarullaryhmä vakiosovelluksiin, YKSI LAIPPA, kulutuspinnan halkaisija 278 mm, asennusleveys 412,16 mm, yhteensopiva kannatintelan kanssa
Cat
Laipan tyyppi
Yksi laippa
Kulutuspinnan halkaisija (in)
10,945
Application
Standard Application
Shaft OD (in)
2.677
Inside Spread (in)
5.299
Mounting Width (in)
16.227
Carrier Roller Compatible
Yes
Link Outside Spread (in)
13.724
Shaft Length (in)
21.102
UC System
HD
Outer Flange Diameter (in)
12.283
Cat® Yhden laipan telarulla alavaunuun
Cat
Laipan tyyppi
Yksi laippa
Kulutuspinnan halkaisija (in)
11,299
Application
Standard Application
Shaft OD (in)
5.365
Inside Spread (in)
5.697
Mounting Width (in)
19.219
Carrier Roller Compatible
Yes
Link Outside Spread (in)
16.063
Shaft Length (in)
25.276
UC System
HD
Outer Flange Diameter (in)
12.638
Cat®-voimansiirron vetopyöräsegmentti, jossa on yli kuusi hammasta, parantaa telaketjukoneiden vakautta ja hallittavuutta. Sopii koneisiin, jotka ovat yhteensopivia osan 602-0406 kanssa.
Cat
Back Lash (in)
0.079
Sound Segment
No
Relieved
Yes
Pitch Circle Radius (in)
23.166
Pocket Angle (degrees)
40
Pitch (in)
12,5
Inner Radius (in)
17,047
Bushing Radius (in)
2.264
Packing Offset Radius (in)
23.13
Material Type
Tough Steel
Bolt Circle Radius (in)
18.268
Sprocket Mounting Type
Offset
Material
Alloy Steel
UC System
HD
Bolt Thread Size
1.125
Tooth Width (in)
5.118
Number of Teeth
6
Number of Bolts
8
Tip Radius (in)
23,425
Cat® yksilaippainen telarulla, laipan halkaisija: 275 mm
Cat
Kulutuspinnan halkaisija (in)
9,724
Application
Standard Application
Shaft OD (in)
2.283
Inside Spread (in)
3.606
Mounting Width (in)
12.841
Carrier Roller Compatible
Yes
Link Outside Spread (in)
9.173
Flange Type
SINGLE FLANGE
Shaft Length (in)
17.953
UC System
HD
Outer Flange Diameter (in)
10.827
Cat®-telasegmentti, kova teräs, 6 pulttia, 5 hammasta, telan nousu 261 mm
Cat
Back Lash (in)
0.079
Sound Segment
No
Relieved
Yes
Pitch Circle Radius (in)
20.659
Pocket Angle (degrees)
40
Pitch (in)
10,276
Inner Radius (in)
15,197
Bushing Radius (in)
1.949
Packing Offset Radius (in)
20.63
Material Type
Tough Steel
Bolt Circle Radius (in)
16.535
Sprocket Mounting Type
Offset
Material
Alloy Steel
UC System
HD
Bolt Thread Size
1
Tooth Width (in)
4.528
Number of Teeth
5
Number of Bolts
6
Tip Radius (in)
20,827

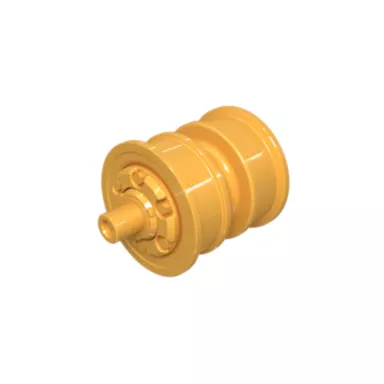

Cat® Kaksilaippainen telarulla alavaunulle
Cat
Laipan tyyppi
Kaksoislaippa
Kulutuspinnan halkaisija (in)
10,906
Application
Standard Application
Shaft OD (in)
5.365
Inside Spread (in)
5.555
Mounting Width (in)
19.219
Carrier Roller Compatible
No
Link Outside Spread (in)
13.56
Shaft Length (in)
25.276
UC System
HD
Outer Flange Diameter (in)
12.638
Cat® Kaksilaippainen telarulla alavaunulle
Cat
Laipan tyyppi
Kaksoislaippa
Kulutuspinnan halkaisija (in)
10,551
Application
Standard Application
Shaft OD (in)
2.677
Inside Spread (in)
4.933
Mounting Width (in)
16.227
Carrier Roller Compatible
No
Link Outside Spread (in)
12.157
Shaft Length (in)
21.102
UC System
HD
Outer Flange Diameter (in)
12.283
Cat® Track Roller Group Standard Application, DOUBLE FLANGE, 241mm Tread Diameter, 306.74mm Mounting Width
Cat
Flange Type
DOUBLE FLANGE
Tread Diameter (in)
9,488
Mounting Width (in)
12.076
Application
Standard Application
UC System
HD
Shaft Length (in)
17.975
Carrier Roller Compatible
No
Link Outside Spread (in)
9.512
Inside Spread (in)
3.819
Shaft OD (in)
2.283
Outer Flange Diameter (in)
10.827
Cat® Yksi ulompi laippatelarulla telarullan alavaunuun
Cat
Leveys (in)
5,472
Bushing Bearing Inner Diameter (in)
7.092
Mounting Bolt Traverse Spacing (in)
9.849
Mounting Bolt Axial Spacing (in)
24.472
Hub Width (in)
16.614
Outside Diameter (in)
18,346
Hub Diameter (in)
14.803
Carrier Roller Compatible
No
Bore Diameter (in)
7,092
Material
Sealants / Adhesives Adhesive
UC System
HD
Cat® Kaksilaippainen telarulla telarullan alavaunuun
Cat
Laipan tyyppi
Kaksoislaippa
Kulutuspinnan halkaisija (in)
8,268
Mounting Cap Bolt Hole Diameter (in)
0.866
Application
Standard Application
Shaft OD (in)
2.341
Link Outside Spread (in)
7.72
Mounting Cap Bolt Thread Size
M20
UC System
HDXL
Mounting Bolt Traverse Spacing (in)
4.5
Mounting Bolt Axial Spacing (in)
13.051
Inside Spread (in)
3.831
Mounting Width (in)
10.159
Carrier Roller Compatible
No
Shaft Length (in)
14.508
Outer Flange Diameter (in)
9.449
Cat® Yksilaippainen rullalaakeri telarullalle
Cat
Laipan tyyppi
Yksi laippa
Kulutuspinnan halkaisija (in)
8,268
Mounting Cap Bolt Hole Diameter (in)
0.866
Application
Standard Application
Shaft OD (in)
2.341
Link Outside Spread (in)
9.26
Mounting Cap Bolt Thread Size
M20
UC System
HD
Mounting Bolt Traverse Spacing (in)
4.5
Mounting Bolt Axial Spacing (in)
12.925
Inside Spread (in)
3.969
Mounting Width (in)
10.159
Carrier Roller Compatible
No
Shaft Length (in)
14.508
Outer Flange Diameter (in)
9.449
Cat® Tela-alustaisessa telarungossa käytetty tela-käynti
Cat
Kulutuspinnan halkaisija (in)
21,457
Halkaisija (in)
23.0
Center Flange Width (in)
3.681
Shaft Protrusion Length (in)
1.985
Idler Rim Width (in)
7.472
Application
Standard Application
Machine Side
Interchangeable
Tread Type
Conventional Tread
Shaft OD (in)
4.241
Shaft Length (in)
14.646
Center Flange Diameter (in)
23.346
UC System
HDXL
Vetopyörä (segmentti)
Cat
Pultin koko (in)
3/4
Vetopyörän segmenttien määrä
5,0
Vetopyörän hampaiden määrä
5,0
Vetopyörän pulttien määrä
7,0
Back Lash (in)
0.079
Sound Segment
No
Relieved
No
Pitch Circle Radius (in)
17.09
Pocket Angle (degrees)
40
Pitch (in)
8,5
Inner Radius (in)
12,52
Bushing Radius (in)
1.559
Packing Offset Radius (in)
17.047
Material Type
Tough Steel
Bolt Circle Radius (in)
13.622
Sprocket Mounting Type
Offset
Material
Alloy Steel
UC System
HD
Bolt Thread Size
0.75
Tooth Width (in)
3.465
Number of Teeth
5
Number of Bolts
7
Tip Radius (in)
17,283
Cat® Idler Group Standard Application, 257mm Rim Width, Interchangeable, 720mm Tread Diameter, Conventional Tread
Cat
Sovellus
Normaali sovellus
Kulutuspinnan tyyppi
Perinteinen kulutuspinta
Koneen puoli
Vaihdettava
Center Flange Width (in)
4.37
Shaft Protrusion Length (in)
2.339
Idler Rim Width (in)
10.118
Tread Diameter (in)
28,346
Shaft OD (in)
4.99
Shaft Length (in)
19.488
Center Flange Diameter (in)
29.921
UC System
HD
