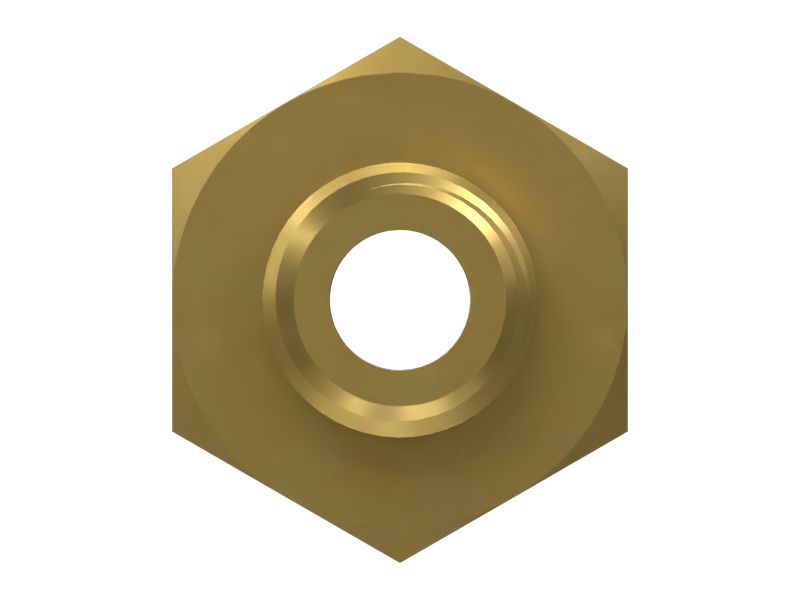

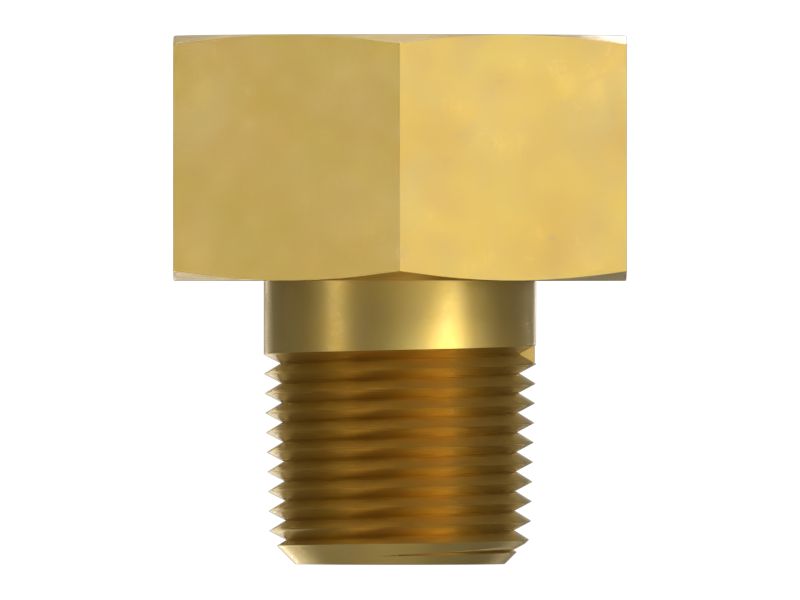

Cat® 1/4-18 X 3/4-18 Inverted Flared Connector used in Check Valve
ブランド: Cat
Cat® 1/4-18 X 3/4-18 Inverted Flared Connector used in Check Valve
ブランド: Cat
住所
または連絡先フォームを使用
An Inverted Flared Connector is used to connect two pieces of tubing or hose in a check valve. It is a straight piece of pipe with a flared end on each side. The flared ends are used to connect the connector to the tubing or hose using a flaring tool.
Attributes:
● Enables smooth and effective transfer of fluid from one component to another
● Manufactured to precise specifications and is durable and reliable
Applications:
An Inverted Flared Connector is used for connecting, terminating, and controlling flow in the check valve.
CATϜu30DBースアセンブリ製品警告
Improper selections of hose and coupling combinations will void warranties and may result in serious personal injury or death, property damage, or component and machine system failure. Cat® hose assembly products are designed and tested as a system to achieve a reliable connection, thus maximizing hydraulic system safety and dependability. It is also recommended that appropriate and properly maintained Caterpillar tooling is used to ensure hoses are crimped to specifications. Use of Caterpillar hose with other manufacturer’s couplings or the use of Caterpillar couplings with other manufacturer’s hose may result in the production of unreliable, unsafe or under-performing hose assemblies. It is not recommended or authorized by Caterpillar. For additional information see SAE J1273 section 6.3 and ISO 17165-2 section 6.3.
CATϜu30DBースアセンブリ製品警告
Improper selections of hose and coupling combinations will void warranties and may result in serious personal injury or death, property damage, or component and machine system failure.
この部品は、メーカー仕様に基づいて、お使いのCAT機種に適合するように設計されています。
メーカーのコンフィギュレーションに変更があった場合、製品がお使いのCAT機種に適合しなくなることがあります。この部品が現在の状態および想定のコンフィギュレーションでお使いのCAT機種に適していることを確認するには、購入前に最寄りのCatディーラにお問い合わせください。このインジケータは、すべての部品について互換性を保証することはできません。
