Provides increased productivity and cost saving benefits to customers. Operators have the ability to tilt compatible work tools for more efficient jobsite versatility and productivity.
Increase machine versatility and improve overall production.
Increase machine versatility and improve overall production.
Increase machine versatility and improve overall production.
Increase machine versatility and improve overall production.
Increase machine versatility and improve overall production.
Increase machine versatility and improve overall production.
Cat® Pin Lock Couplers are fully compatible with Wain-Roy and Gannon-style buckets.
Cat® Pin Lock Couplers are fully compatible with Wain-Roy and Gannon-style buckets.
Increase machine versatility, reduce costs, and improve overall production with Cat® Pin Puller Couplers for Backhoe Loaders.
Increase machine versatility and improve overall production.
Increase machine versatility and improve overall production.
Increase machine versatility, reduce costs, and improve overall production with Cat® Pin Puller Couplers for Backhoe Loaders.
Increase machine versatility, reduce costs, and improve overall production with Cat® Pin Puller Couplers for Backhoe Loaders.
Utilitze one coupler to match existing work tool attachments with new Cat® machines or similarly-sized competitive machines.
The S Type Coupler is a pin grabber style dedicated coupler. It ensures an exchangeability of tools within a fleet of machines with different platforms. Consistent tight fit to attachment, low offset, and reliability are the key features.
Viewing 1 - 16 of 19
This part is designed to fit your Cat equipment based on the manufacturer’s specifications.
Any changes to the manufacturer’s configuration might result in the product not fitting your Cat equipment. Please consult your Cat Dealer before purchasing to ensure that this part is appropriate for your Cat equipment in its current condition and assumed configuration. This indicator cannot guarantee compatibility for all parts.
Remanufactured
Non-Returnable
Kit
Replaced
Remanufactured
Non-Returnable
Kit
Replaced
Viewing 1 - 16 of 19
Viewing 1 - 16 of 19

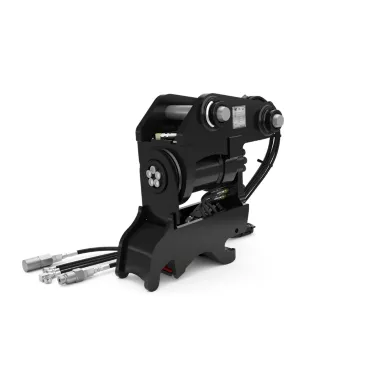

Cat
Weight
255.7 lb
Overall Width
11.7 in
Length
22.6 in
Overall Height
21.5 in
Drive Method
Helical Rotary Actuator
Hydraulic Flow
7.6-15.1 lpm (2-4 gpm)
Hydraulic Pressure - Actuator
3002.3 psi
Hydraulic Pressure - Coupler
3655 psi
Pin Diameter
1.8 in
Machine Class
5 Ton Mini Excavators
Interface Type
Pin On
Required Hydraulics
Dedicated Factory Installed
Tilt Angle Range
90° Left/Right
Cat
Weight
169.8 lb
Width
10.7 in
Length
20.8 in
Overall Height
10.7 in
Pin Diameter
1.8 in
Machine Class
5 Ton Mini Excavators
Interface Type
Pin On
Required Hydraulics
Dedicated Factory Installed
Cat
Weight
81.6 lb
Width
10.6 in
Length
16.9 in
Overall Height
8.7 in
Pin Diameter
1.6 in
Machine Class
3-4 Ton Mini Excavators
Interface Type
Pin On
Required Hydraulics
None Required
Cat
Weight
90.4 lb
Width
9.9 in
Length
16.7 in
Overall Height
10.5 in
Pin Diameter
1.6 in
Machine Class
3-4 Ton Mini Excavators
Interface Type
Pin On
Required Hydraulics
Dedicated Factory Installed
Cat
Weight
337.3 lb
Width
14.9 in
Length
30.5 in
Overall Height
7.6 in
Pin Diameter
2.4 in
Machine Class
10 Ton Mini Excavators
Interface Type
Pin On
Required Hydraulics
Dedicated Factory Installed
Cat
Weight
37.5 lb
Width
9.4 in
Length
14.1 in
Overall Height
7.6 in
Pin Diameter
1.4 in
Machine Class
2 Ton Mini Excavators
Interface Type
Pin On
Required Hydraulics
None Required
Cat
Weight
196.2 lb
Width
11.5 in
Length
23.3 in
Overall Height
14.6 in
Pin Diameter
2 in
Machine Class
8 Ton Mini Excavators
Interface Type
Pin On
Required Hydraulics
None Required
Cat
Weight
174.2 lb
Width
13.7 in
Length
26 in
Overall Height
16 in
Pin Diameter
2 in
Machine Class
8 Ton Mini Excavators
Interface Type
Pin On
Required Hydraulics
None Required

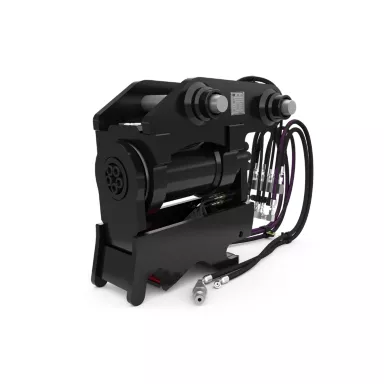

Cat
Weight
256.2 lb
Width
16.9 in
Length
23.8 in
Overall Height
22.3 in
Pin Diameter
1.8 in
Machine Class
8 Ton Mini Excavators
Interface Type
Pin On
Required Hydraulics
Dedicated Factory Installed
Tilt Angle Range
90° Left/Right
Cat
Weight
260.1 lb
Width
12 in
Length
21.4 in
Overall Height
21.1 in
Pin Diameter
60 mm/60 mm (2.4 in/2.4 in)
Machine Class
450 Backhoe Loaders
Interface Type
Pin On
Cat
Weight
343.9 lb
Width
14.9 in
Length
30.5 in
Overall Height
13.7 in
Pin Diameter
60 mm/60 mm (2.4 in/2.4 in)
Machine Class
450 Backhoe Loaders
Interface Type
Pin On
Required Hydraulics
Dedicated Factory Installed
Cat
Weight
211.6 lb
Width
14.6 in
Length
23.4 in
Overall Height
13.7 in
Pin Diameter
2 in
Machine Class
8 Ton Mini Excavators
Interface Type
Pin On
Required Hydraulics
Dedicated Factory Installed

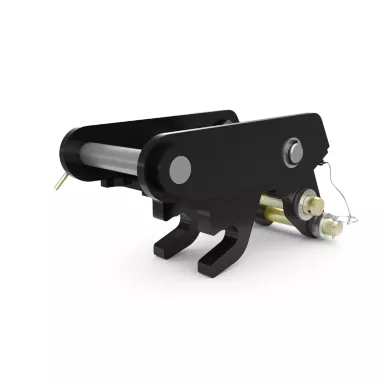

Cat
Weight
211.6 lb
Width
13.4 in
Length
25.3 in
Overall Height
13.6 in
Pin Diameter
45 mm/50 mm (1.8 in/2 in)
Machine Class
415-430 Backhoe Loaders
Interface Type
Pin On

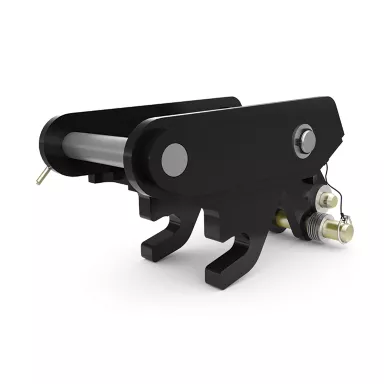

Cat
Weight
220.5 lb
Width
13.4 in
Length
25.7 in
Overall Height
14 in
Pin Diameter
45 mm/50 mm (1.8 in/2 in)
Machine Class
415-430 Backhoe Loaders
Interface Type
Pin On

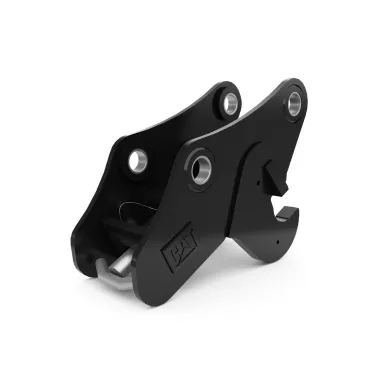

Cat
Weight
244.7 lb
Width
14.5 in
Length
31.7 in
Overall Height
20.4 in
Pin Diameter
60 mm/60 mm (2.4 in/2.4 in)
Machine Class
10 Ton Mini Excavators, 450 Backhoe Loaders
Interface Type
Pin On
Required Hydraulics
None Required

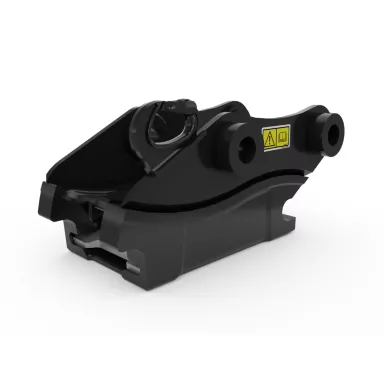

Cat
Weight
196.9 lb
Lifting Hook Capacity
6613.9 lb
Width
13.5 in
Overall Length
24.8 in
Overall Height
12.5 in
Pin Diameter
2 in
Machine Class
8 Ton Mini Excavators
Interface Type
Pin On
Required Hydraulics
Dedicated Factory Installed
Maximum Operating Pressure
5076.3 psi
Coupler Type
S-50 Pin Grabber
