Tubes, Tube Assemblies, & Tube Components
Tubes, Tube Assemblies, & Tube Components

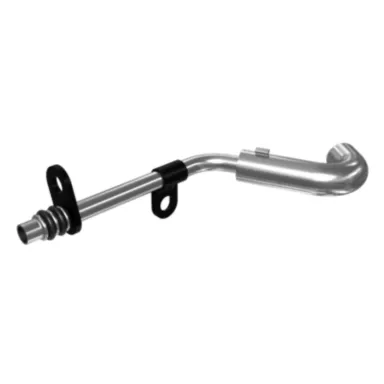

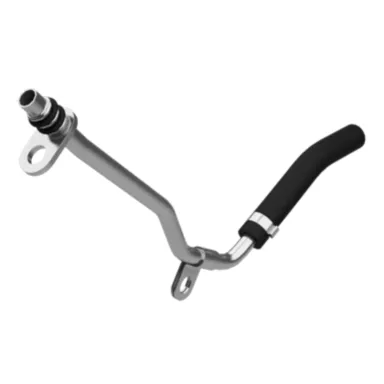

604-2388: Water Pump Pipe
Cat® Water Pump Pipe For Engine
Cat
Weight (lb)
0.07
Material
Alloy Zinc,Plastic Plastic,Polyamide Plastic,Corrosion Preventative Fluid,Carbon Steel

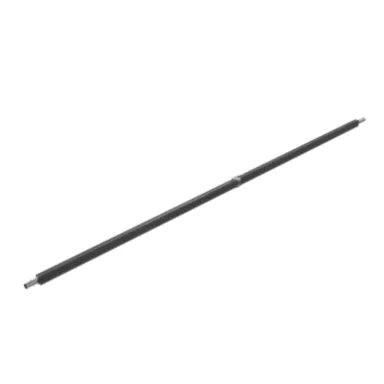

9W-5531: Tube Assembly-Magnet
Cat® Magnetic Screen Assembly
Cat
Diameter (in)
2.559
Length (in)
9.094
Material
Sealants / Adhesives Adhesive
Overall Length (in)
9.1
Outside Diameter (in)
2.6
Height (in)
2.6

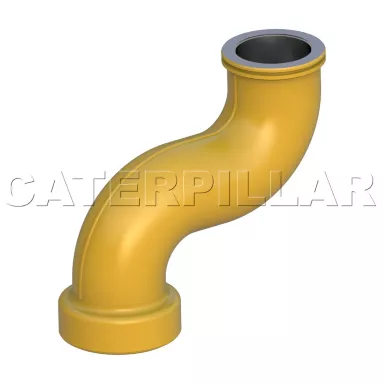

255-3544: 169.93mm Outer Diameter Exhaust Air Line Tube
Cat® Steel Tube Assembly
Cat
Length (in)
20.0
Material
Alloy Steel,Thermal Insulation,Structural Steel,Carbon Steel,Stainless Steel,Alloy Mixed: Metal
Height (in)
8.0

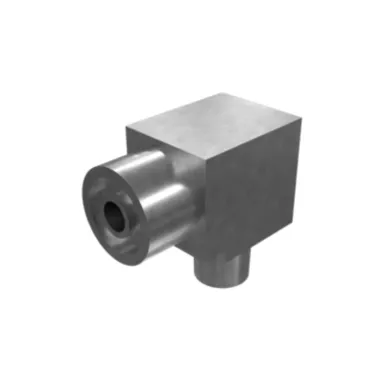

7X-0492: 90 Degree Elbow Adapter
Cat® 90 Degree Elbow Adapter for hydraulic grease line
Cat
Length (in)
1.5
Material
Alloy Steel,Carbon Steel
Height (in)
0.6

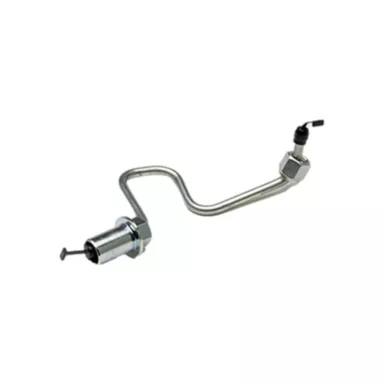

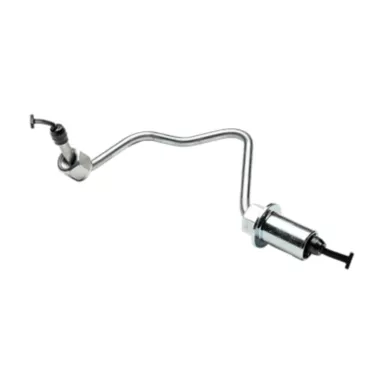

385-4319: Fuel Pressure Sensor Pipe
Cat® Pre Valve Fuel Pressure Sensor Pipe for primary engine
Cat
Overall Width (in)
7.0
Overall Height (in)
1.5
Material
Stainless Steel,Corrosion Preventative Fluid,Carbon Steel,Other Hose,Alloy Zinc
Overall Length (in)
9.0

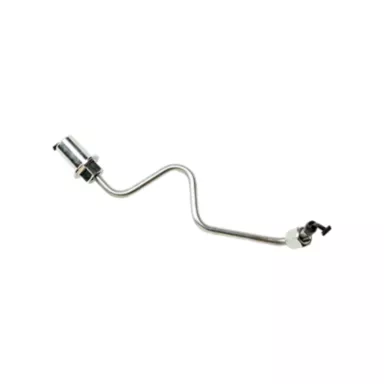

385-4320: Fuel Pressure Sensor Pipe
Cat® Post Valve Fuel Pressure Sensor Pipe for primary engine
Cat
Overall Height (in)
0.9
Overall Width (in)
1.5
Material
Other Hose,Carbon Steel,Corrosion Preventative Fluid,Stainless Steel,Alloy Zinc
Overall Length (in)
7.5

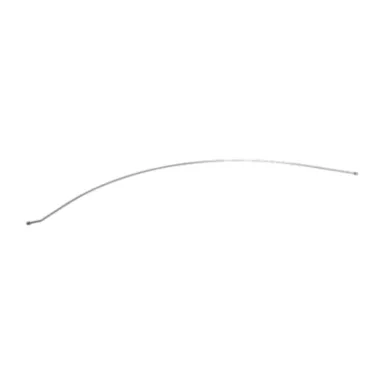

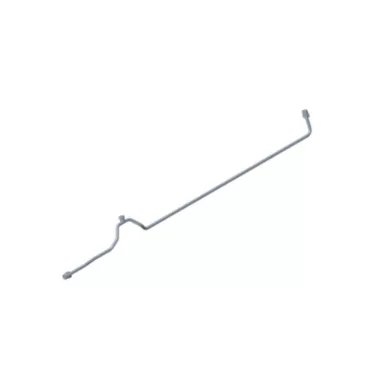

476-3252: Fuel Rail Line
Cat® 44.45mm Outer Diameter Fuel Rail Line for the fuel system
Cat
Material
Carbon Steel
250-6083: Exhaust Pipe Tube
Cat® Exhaust Pipe Tube channels exhaust gases from the engine, expelling them safely away, reducing noise, and improving engine efficiency
Cat
Length (in)
77.0
Material
Thermal Insulation,Structural Steel,Alloy Mixed: Metal,Alloy Steel
Height (in)
11.2
486-0731: 127.00mm Hoist Line Hydraulic Steel Tube
Fluid Carrying Tube Assembly
Cat
Material
Steel,Alloy Steel
Connector Type
Flange; Straight
Flange Type
-80 Code 61
Outer Diameter (in)
5.0
451-1488: 1/8-27 NPT Threaded Nipple Pipe
Cat® Grease Lines Nipple Pipe ensures efficient lubrication of chassis components for optimal performance and longevity
Cat
Inside Diameter (in)
0.21
Outer Diameter (in)
0.4
Length (in)
3.42
Inner Diameter (in)
0.2
Material Description
Steel
External Thread Size
1/8-27 Npt (Both Ends)
Outside Diameter (in)
0.4
Thread Length (in)
0.4
Thread Size (in)
1/8-27
Overall Length (in)
3.4
Weight (lb)
0.1
Material
Alloy Zinc,Carbon Steel
438-5135: Fluid Carrying Tube Assembly
Fluid Carrying Tube Assembly
Cat
Material
Steel,Alloy Steel
Connector Type
Flange; Hose Bead
Flange Type
Not specified
Outer Diameter (in)
6.0
Length (in)
Not specified
Height (in)
8.0

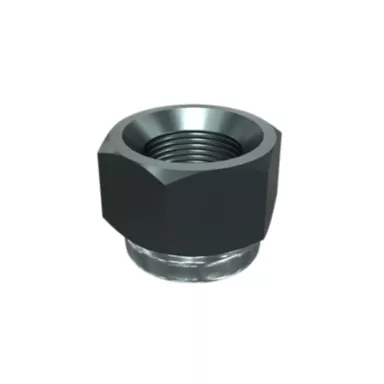

471-1016: Quick Disconnect Fitting Cap
Cat® Hydraulic Hoses and Lines Quick Disconnect Fitting Cap in Hydraulic System
Cat
