Designed to easily handle a wide array of bulky, irregularly shaped objects encountered in demolition, industrial, construction, recycling, storm debris clean-up, landscaping and other aggressive applications.
Designed to easily handle a wide array of bulky, irregularly shaped objects encountered in demolition, industrial, construction, recycling, storm debris clean-up, landscaping and other aggressive applications.

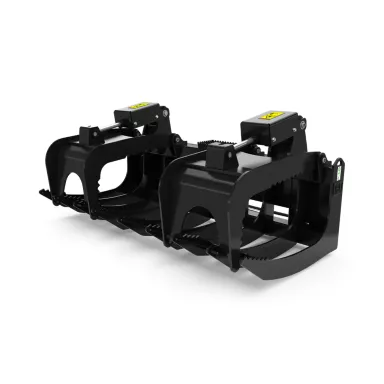

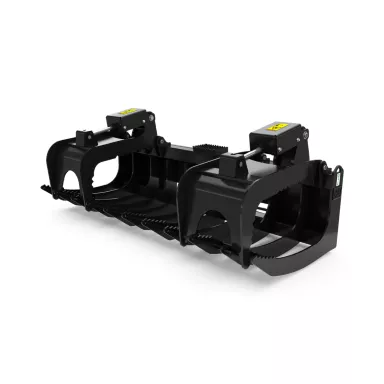

Cat® Industrial Grapple Rakes are designed to handle a wide array of bulky, irregularly shaped objects encountered in demolition, industrial, construction, recycling, storm debris cleanup, land clearing and other aggressive applications.

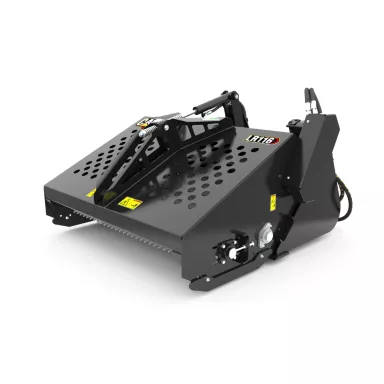

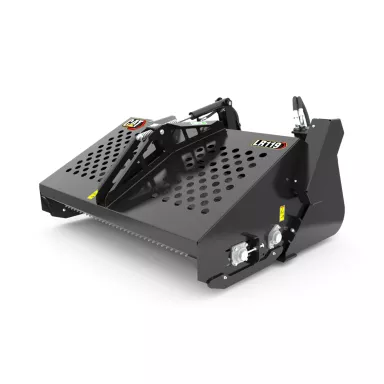

Uses the scarifying action of the hardened teeth to pulverize, aerate, level and condition the soil, while collecting and depositing rock and debris in the integrated hopper bucket for quick removal.

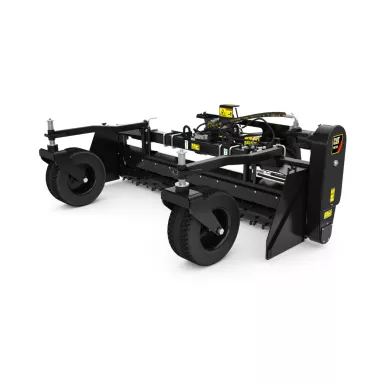

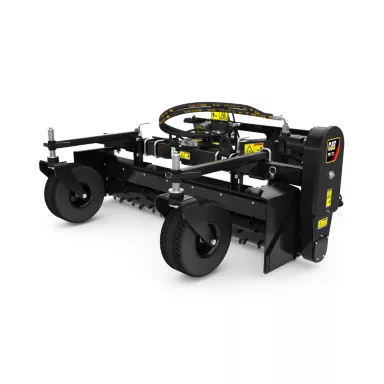

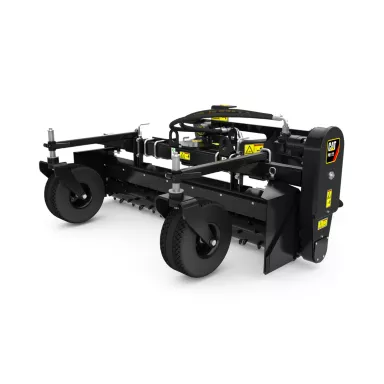

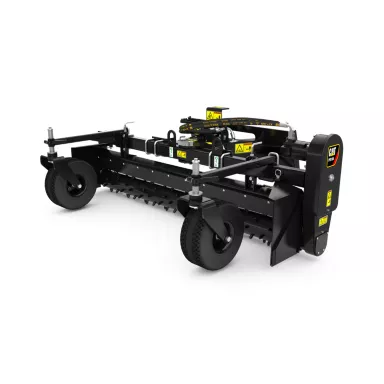

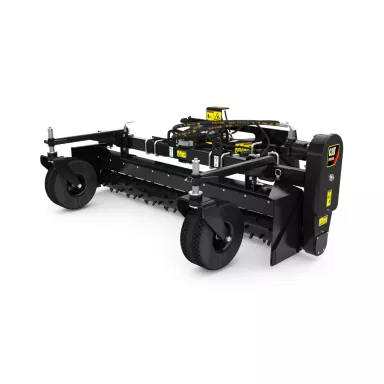

Offers the versatility to de-thatch, remove old lawns and weeds, grade, level, rake, remove debris and prepare seedbeds with one work tool.
Viewing 1 - 12 of 12
KeyKey
Factory Fit
This part is designed to fit your Cat equipment based on the manufacturer’s specifications.
Any changes to the manufacturer’s configuration might result in the product not fitting your Cat equipment. Please consult your Cat Dealer before purchasing to ensure that this part is appropriate for your Cat equipment in its current condition and assumed configuration. This indicator cannot guarantee compatibility for all parts.
Remanufactured
Non-Returnable
Kit
Replaced
Remanufactured
Non-Returnable
Kit
Replaced
Add EquipmentTo find the parts that fit.
Add Equipment
Viewing 1 - 12 of 12
Sort by RelevanceSort by NameSort by Part Number
Filter & SortFilter & Sort
Sort by RelevanceSort by NameSort by Part Number
Specifications
USMetric
View ResultsCancel
Cat
Width
84 in
Height
33 in
Weight
1115.1 lb
Length
40 in
Optimal Hydraulic Flow
42-86 L/min (11-23 gpm)
Optimal Hydraulic Pressure
145-235 bar (2100-3400 psi)
Number of Tines
11
Required Hydraulics
Standard Flow
Cat
Working Width
62 in
Bucket Capacity - Struck
0.4 yd³
Weight
1311.7 lb
Overall Width (in)
66
Raking Width
54.5 in
Overall Width
66.3 in
Height
38.9 in
Length
63.8 in
Optimal Hydraulic Flow
42-86 L/min (11-23 gpm)
Optimal Hydraulic Pressure
145-235 bar (2100-3400 psi)
Motor Displacement
19.2 in³
Driven Shaft Speed
165 rpm @ 80 L/min (21 gpm)
Number of Hard Face Tines
372
Rock Size Range
19-152 mm (0.75-6 in)
Drive Method
Chain Reduction
Drive Chain
#80H
Conveyor Chain
#2060H
Required Hydraulics
Standard Flow
Cat
Working Width
74.1 in
Bucket Capacity - Struck
0.4 yd³
Weight
1439.6 lb
Overall Width (in)
78
Raking Width
65.6 in
Overall Width
78.3 in
Height
38.9 in
Length
63.8 in
Optimal Hydraulic Flow
42-86 L/min (11-23 gpm)
Optimal Hydraulic Pressure
145-235 bar (2100-3400 psi)
Motor Displacement
19.2 in³
Driven Shaft Speed
165 rpm @ 80 L/min (21 gpm)
Number of Hard Face Tines
444
Rock Size Range
19-152 mm (0.75-6 in)
Drive Method
Chain Reduction
Drive Chain
#80H
Conveyor Chain
#2060H
Required Hydraulics
Standard Flow
Cat
Working Width (in)
72
Roller Width
72 in
Working Width @ Max Angle (in)
68
Overall Width
81 in
Maximum Angle - Right or Left
20 degrees
Angling Type (in)
Manual
Raking Width at Maximum Angle
68 in
Overall Length
64 in
Overall Height
33.3 in
Weight
899.5 lb
Required Hydraulics
Standard Flow
Optimal Hydraulic Flow
49-86 L/min (13-23 gpm)
Optimal Hydraulic Pressure
230 bar (3335.9 psi)
Cat
Working Width (in)
84
Roller Width
84 in
Working Width @ Max Angle (in)
79
Overall Width
93 in
Maximum Angle - Right or Left
20 degrees
Angling Type (in)
Manual
Raking Width at Maximum Angle
79 in
Overall Length
64 in
Overall Height
33.3 in
Weight
1025.1 lb
Required Hydraulics
Standard Flow
Optimal Hydraulic Flow
57-86 L/min (15-23 gpm)
Optimal Hydraulic Pressure
230 bar (3335.9 psi)
Cat
Width
72 in
Height
33 in
Weight
1069.9 lb
Length
40 in
Optimal Hydraulic Flow
42-86 L/min (11-23 gpm)
Optimal Hydraulic Pressure
145-235 bar (2100-3400 psi)
Number of Tines
9
Required Hydraulics
Standard Flow
Cat
Working Width (in)
72
Roller Width
72 in
Working Width @ Max Angle (in)
68
Overall Width
81 in
Maximum Angle - Right or Left
20 degrees
Angling Type (in)
Hydraulic
Raking Width at Maximum Angle
68 in
Overall Length
64 in
Overall Height
33.3 in
Weight
925.9 lb
Required Hydraulics
Standard Flow
Optimal Hydraulic Flow
49-86 L/min (13-23 gpm)
Optimal Hydraulic Pressure
230 bar (3335.9 psi)
Cat
Working Width (in)
84
Roller Width
84 in
Working Width @ Max Angle (in)
79
Overall Width
93 in
Maximum Angle - Right or Left
20 degrees
Angling Type (in)
Hydraulic
Raking Width at Maximum Angle
79 in
Overall Length
64 in
Overall Height
33.3 in
Weight
1049.4 lb
Required Hydraulics
Standard Flow
Optimal Hydraulic Flow
57-86 L/min (15-23 gpm)
Optimal Hydraulic Pressure
230 bar (3335.9 psi)
Cat
Working Width (in)
90
Roller Width
90 in
Working Width @ Max Angle (in)
85
Overall Width
99 in
Maximum Angle - Right or Left
20 degrees
Angling Type (in)
Hydraulic
Raking Width at Maximum Angle
85 in
Overall Length
64 in
Overall Height
37.5 in
Weight
1320.6 lb
Required Hydraulics
Standard Flow
Optimal Hydraulic Flow
57-86 L/min (15-23 gpm)
Optimal Hydraulic Pressure
230 bar (3335.9 psi)
Cat
Width (in)
null
Cat
Overall Width (in)
null
Cat
Working Width (in)
null
Working Width @ Max Angle (in)
null
Angling Type (in)
null
