099-0699: 90.2mm ID Bucket Cylinder Backup Ring

Home

Hardware, Seals, & Consumables

Seals, Gaskets, & O-Rings

Backup Rings

Cat® Bucket Cylinder Backup Ring supports the primary seal within the bucket cylinder, resists extrusion, and enhances sealing performance

Brand: Cat

Product Images

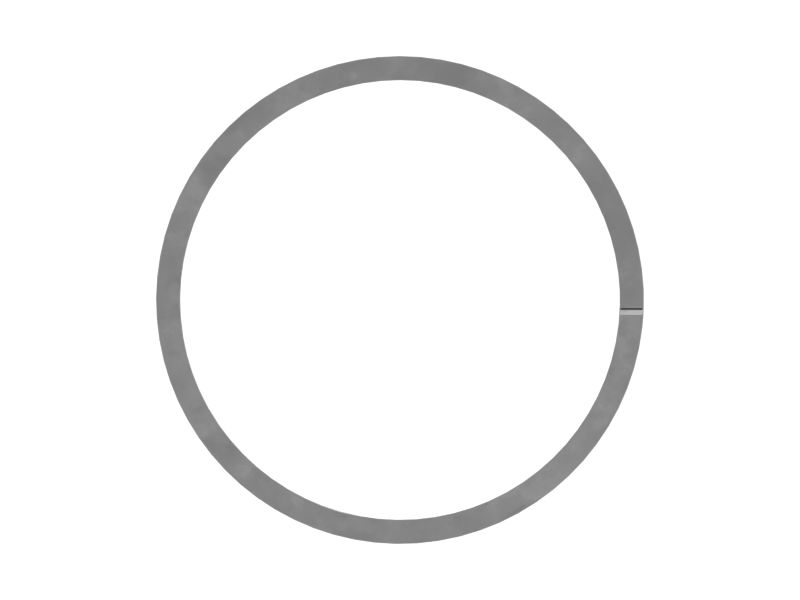

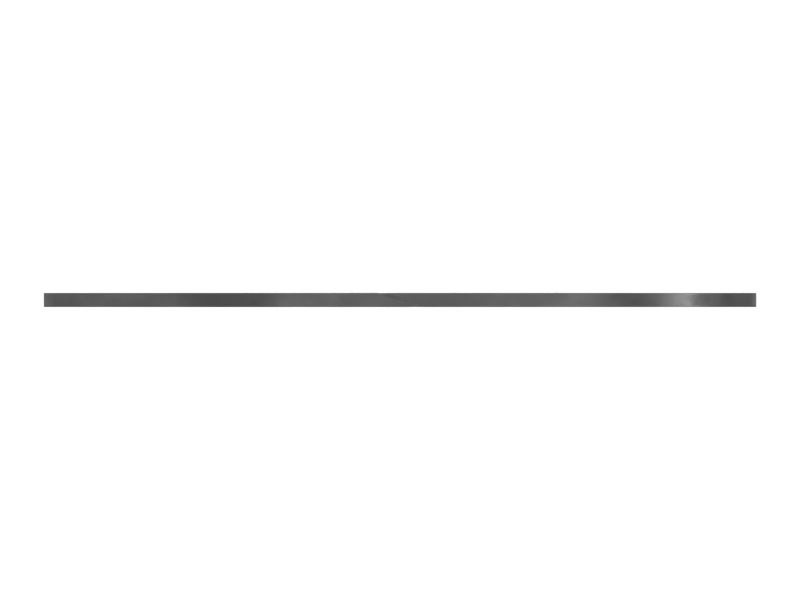

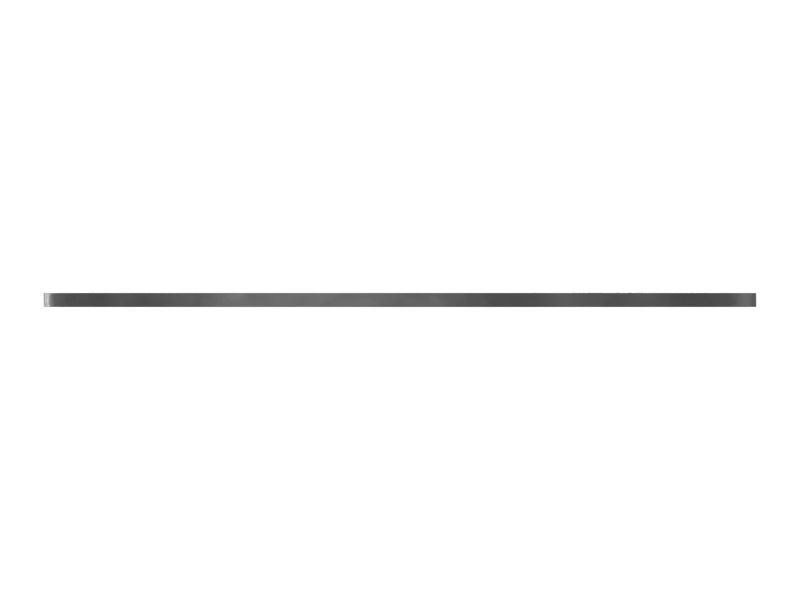

099-0699: 90.2mm ID Bucket Cylinder Backup Ring

099-0699: 90.2mm ID Bucket Cylinder Backup Ring

Cat® Bucket Cylinder Backup Ring supports the primary seal within the bucket cylinder, resists extrusion, and enhances sealing performance

Brand: Cat

Will It Fit?

Add your equipment to see if this part fits or if there are repair options available.

Add Equipment

Will it fit or looking for a repair?Add your equipment to see if this part fits or if there are repair options available.

Check Price

Warranty Information

Return Policy

Frequently bought together

099-0699

095-1625

6V-8467

View All Parts

Frequently bought together

099-0699: 90.2mm ID Bucket Cylinder Backup Ring

095-1625: 5.7 x 89.6mm 90A NBR O-Ring

6V-8467: 3.1 x 99.4mm 75A NBR O-Ring

170-9856: Cat® U-Cup Seal

096-1055: 65mm ID Scarf Cut Backup Ring

165-9282: 65mm Shaft Diameter Bucket Cylinder Lip Type Seal

Diagram

Description

Specifications

Compatible Models

Parts diagram for 099-0699

Specifications for part number 099-0699

Units of Measure

Metric

Material Description:

Nylon Plastic provides good resistance to fuels, oils and lubricants. Many different formulations are used, some of which can support high mechanical loads, and perform well at elevated temperatures.

Cross Section Width (in):

0.07

Notes:

Dimensions and Material Descriptions provided for reference only. Color may differ from image.

Cross Section Width (mm):

1.9

Cross Section Height (mm):

4.8

Material:

Nylon Plastic,Nylon, 6, 6/12, 6/6 Plastic

Inside Diameter (mm):

90.2

Inside Diameter (in):

3.55

Cross Section Height (in):

0.19

Compatible Models for part number 099-0699

MINI HYD EXCAVATOR

307C 307B 307-A 308D 308C

EXCAVATOR

312B L 307 322B L 311-A 320-A L 325-A FM L 325B L 329D L 325D L 320B 320C 320D E240C E240B 320-A N 312B 312C E200B 325-A 325 L 330C L E110B 311B 311C 320D L 320B L 312C L 312-A 325-A L 325C L 322C FM 330C 314C 322B 322C 320-A 323D L 320 L 322 L EL240B EL240C 307-A 330B L 324D L EL200B 322-A L E120B 313B 325C 325D

Key

Factory Fit

This part is designed to fit your Cat equipment based on the manufacturer’s specifications.

Any changes to the manufacturer’s configuration might result in the product not fitting your Cat equipment. Please consult your Cat Dealer before purchasing to ensure that this part is appropriate for your Cat equipment in its current condition and assumed configuration. This indicator cannot guarantee compatibility for all parts.
