118-7303: Master Track Link Pin End Left Hand

Home

Cat® Track Link 215.9mm Track Pitch, Press Fit, Slip Fit Master

Brand: Cat

Discontinued

Discontinued

Discontinued

Discontinued

Product Images

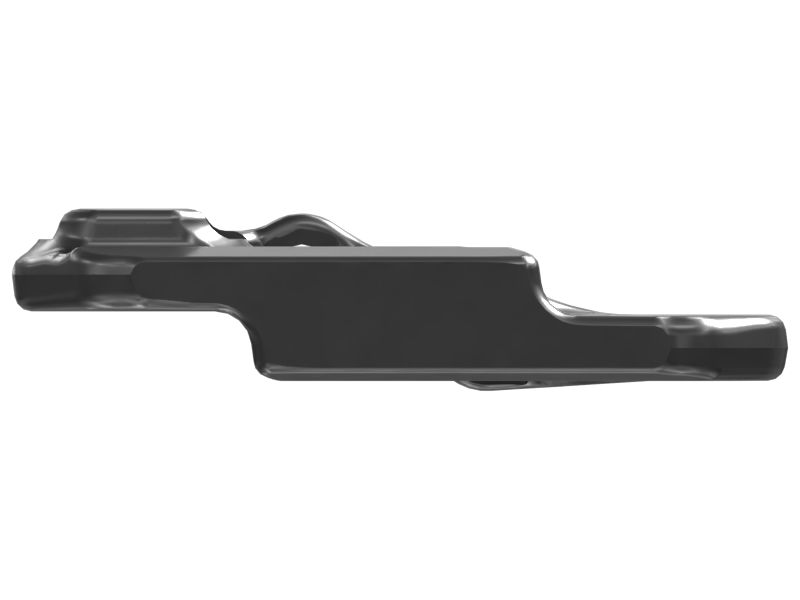

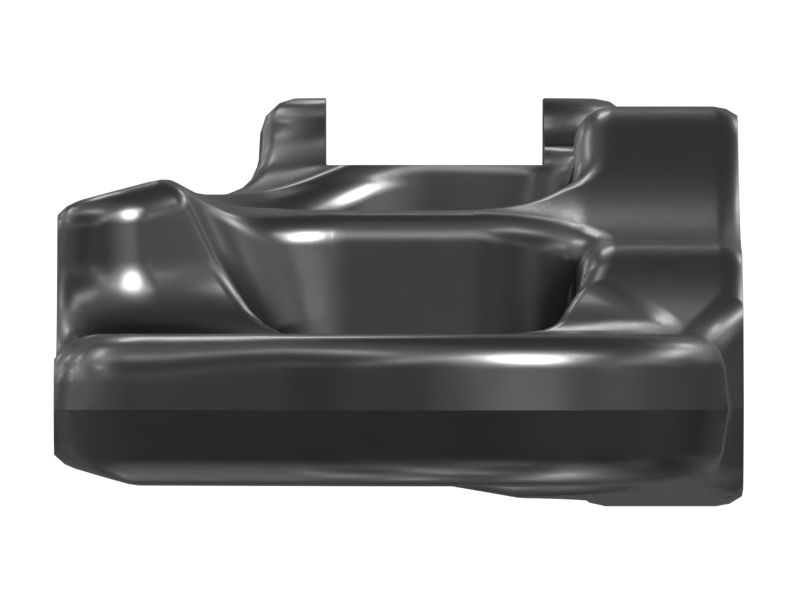

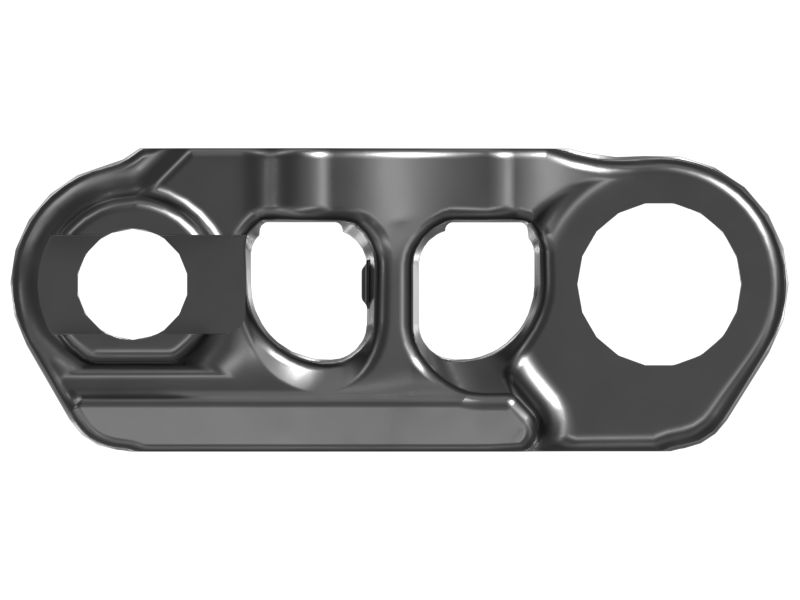

118-7303: Master Track Link Pin End Left Hand

118-7303: Master Track Link Pin End Left Hand

Contact your dealer for replacement options.

Cat® Track Link 215.9mm Track Pitch, Press Fit, Slip Fit Master

Brand: Cat

Will It Fit?

Add your equipment to see if this part fits or if there are repair options available.

Add Equipment

Will it fit or looking for a repair?Add your equipment to see if this part fits or if there are repair options available.

DISCONTINUED

Warranty Information

Return Policy

Diagram

Description

Specifications

Compatible Models

Parts diagram for 118-7303

Specifications for part number 118-7303

Units of Measure

Metric

Bore To Rail (in):

2.694

Track Link Crown Height (in):

Pin End Strap Thickness (mm):

Track Link Crown Height (mm):

Pin Retention System:

Press Fit

Eyebrow Thickness (in):

Overall Height (mm):

124.0

UC System:

Steel Spec:

1E0669

Pin End Strap Thickness (in):

1.654

Bushing End Strap Thickness (in):

1.063

Bushing End Strap Thickness (mm):

Eyebrow Thickness (mm):

Bolt Hole Diameter (in):

0.906

Track Pin Bore Diameter (in):

1.799

Bolt Hole Diameter (mm):

Bolt Size (mm):

Master Link Type:

Slip Fit Master

Track Pitch (mm):

215.9

Rail To Pin Boss OD (mm):

36.4

Bolt Size (in):

Track Pitch (in):

8.5

Track Pin Bore Diameter (mm):

45.7

Rail To Pin Boss OD (in):

1.433

Bushing Bore Diameter (mm):

67.6

Overall Height (in):

4.882

Wear Sensor:

Master Bolt Thread:

M22

Bore To Rail (mm):

68.42

Bushing Bore Diameter (in):

2.661

Compatible Models for part number 118-7303

UNDERCARRIAGE

OEMS

TRACK FELLER BUNCHER

TK1051

ROTARY/TRACK DRILLS

MD6290

EXCAVATOR

336D2 336 MHPU 330D MH 328D LCR 336D2 XE 336D2 LXE 330C LN 330B 330C FM 330C 330D 336D 336E 312D 336D LN 336D2 GC 340D L 340MHPU 336D2 L 336 330C MH 330D LN 330B L 330C L 330B LN 330D L 336D L 325C

MOBILE HYD POWER UNIT

349D2 336F 340D2 L 336D 330D 336D L 345D 345C L 349D L

Compare Alternate Parts

Bore To Rail (in)

Track Link Crown Height (in)

Eyebrow Thickness (in)

Description

118-7303: Master Track Link Pin End Left Hand

2.694

Cat® Track Link 215.9mm Track Pitch, Press Fit, Slip Fit Master

449-2673: Track Link

8.5

2.694

Cat® Track Link 215.9mm Track Pitch, Press Fit, Slip Fit Master

449-2674: Track Link

8.5

2.694

Cat® Track Link 215.9mm Track Pitch, Press Fit, Slip Fit Master
