1B-3623: 0.625-18 Hex Head Bolt

Cat® Hex Head Bolt for engine crankshaft damper tightly connects the crankshaft damper to the engine, for smoother engine operation

Brand: Cat

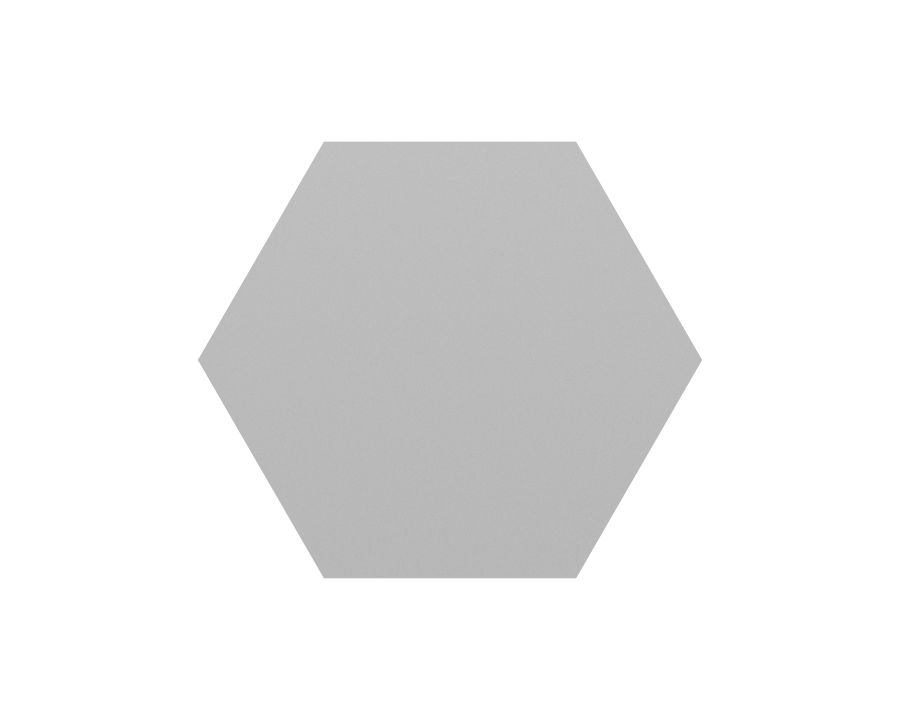

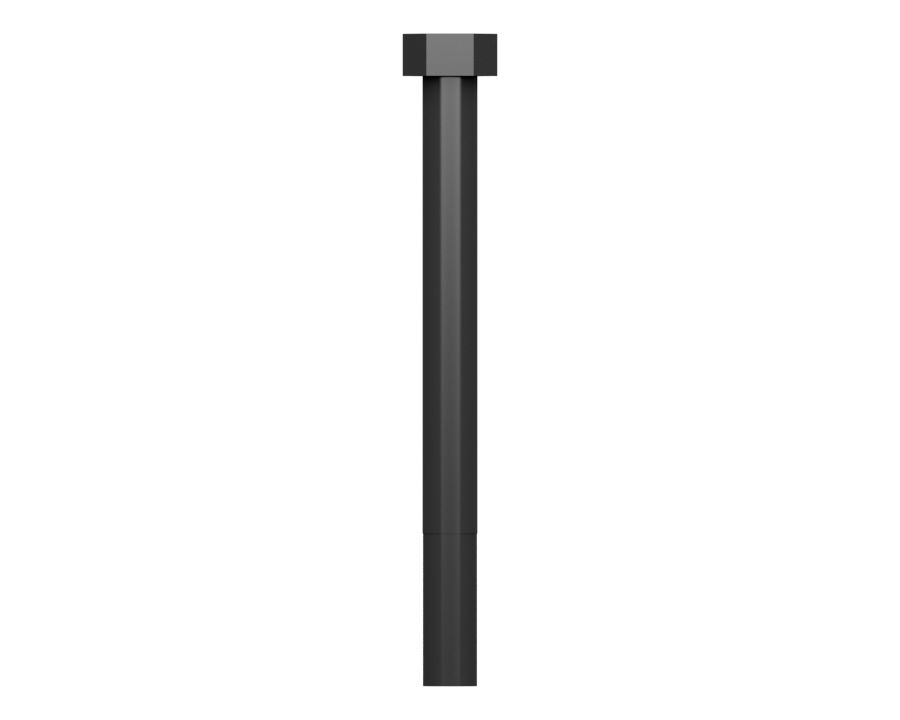

Product Images

1B-3623: 0.625-18 Hex Head Bolt

Cat® Hex Head Bolt for engine crankshaft damper tightly connects the crankshaft damper to the engine, for smoother engine operation

Brand: Cat

Will It Fit?

Add your equipment to see if this part fits or if there are repair options available.

Add Equipment

Will it fit or looking for a repair?Add your equipment to see if this part fits or if there are repair options available.

Check Price

Warranty Information

Return Policy

Diagram

Description

Specifications

Compatible Models

Parts diagram for 1B-3623

Specifications for part number 1B-3623

Units of Measure

Metric

Bolt Length (in):

Bolt Length (mm):

177.8

Bolt Type:

Hex Head

Head Height (in):

0.48

Coating:

Zinc Phosphate + Oil

Grip Length (in):

5.25

Drive (in):

Grip Length (mm):

133.35

Material:

Steel,Carbon Steel,Alloy Zinc

Thread:

Fine

Material Description:

SAE J429 Grade 8. Head Marking - 6 radial lines (150 ksi Ultimate Tensile Strength)

Thread Size (in - TPI) (in):

5/8-18

Hand of Thread:

Head Height (mm):

11.90625

Thread Size (in):

0.025

Thread Size (mm):

0.625

Total Bolt Length - 3 (in):

Hole Thread Pitch:

Thread Size (dia x pitch) (mm):

5/8x18

Drive (mm):

23.8125

Finish:

Phosphate and Oil Coated

Grip Length - 2 (in):

5.25

Class or Grade:

SAE J429 Grade 8 (150 ksi)

Head Height - 4 (in):

0.48

Grade:

Overall Length (mm):

177.8

Head Width - 5 (in):

0.94

Compatible Models for part number 1B-3623

GENERATOR

SR4

GENERATOR SET

3508B

PETROLEUM ENGINE

C15 C18

TRACK-TYPE TRACTOR

D9T D9 D10N D8 D8T D8R D10R

ENGINE - MACHINE

3408

GEN SET ENGINE

3406 3406B

PIPELAYER

PL83 PL87 583T 587T

ENGINE - INDUSTRIAL

3406B

INDUSTRIAL ENGINE

C15 3406 3412 C18 3408B

FRONT SHOVEL

385C

GAS ENGINE

G3406

EXCAVATOR

390D 385C L 390D L 365C L 385C FS 365C L MH 385C L MH 365C 385C 374D L

MOBILE HYD POWER UNIT

365C L 385C 385C L

Key

Factory Fit

This part is designed to fit your Cat equipment based on the manufacturer’s specifications.

Any changes to the manufacturer’s configuration might result in the product not fitting your Cat equipment. Please consult your Cat Dealer before purchasing to ensure that this part is appropriate for your Cat equipment in its current condition and assumed configuration. This indicator cannot guarantee compatibility for all parts.
