202-4296: 545mm Tread Track Idler

Home

Undercarriage

Rolling Components

Idler Groups

Cat® Idler Group Standard Application, 189.8mm Rim Width, Interchangeable, 545mm Tread Diameter, Conventional Tread

Brand: Cat

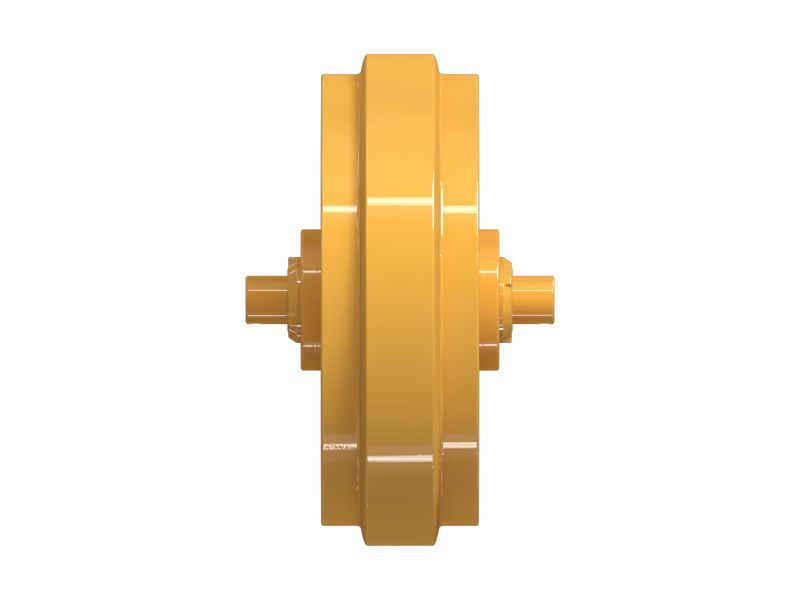

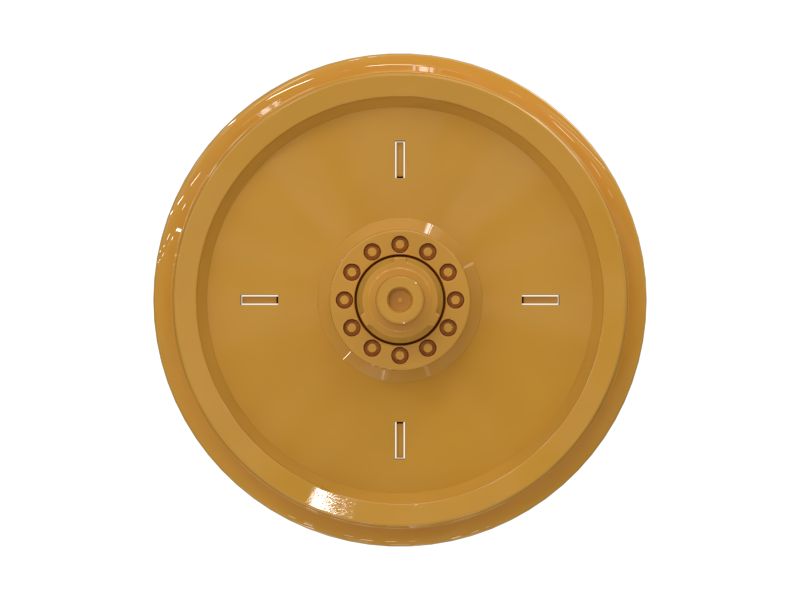

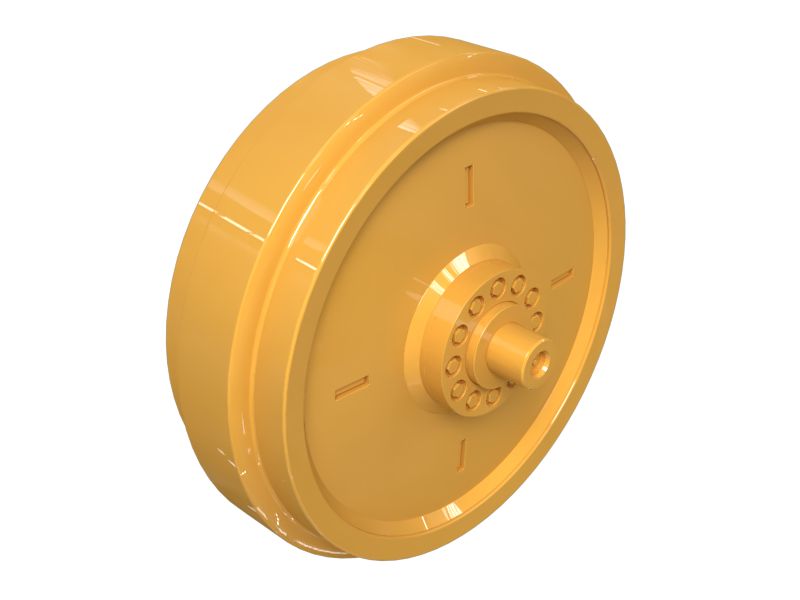

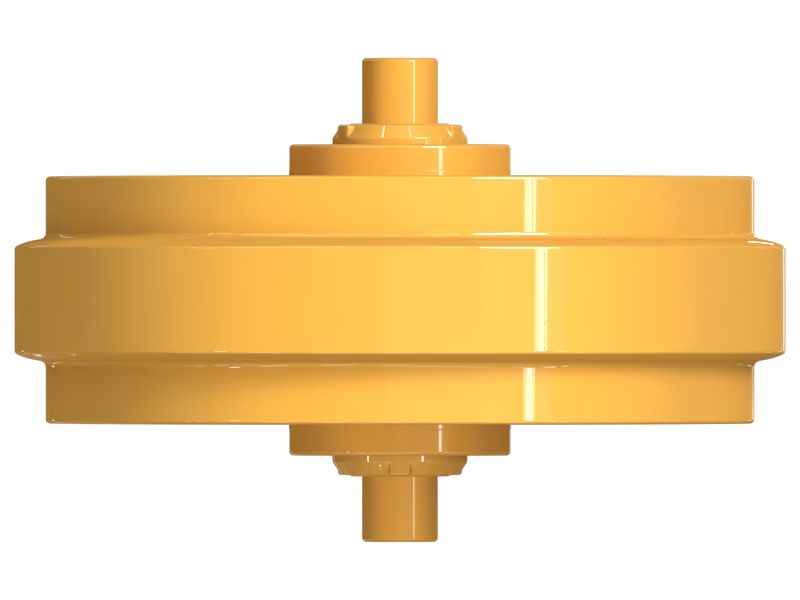

Product Images

202-4296: 545mm Tread Track Idler

Cat® Idler Group Standard Application, 189.8mm Rim Width, Interchangeable, 545mm Tread Diameter, Conventional Tread

Brand: Cat

Will it fit or looking for a repair?Add your equipment to see if this part fits or if there are repair options available.

Check Price

Warranty Information

Return Policy

Description

Warning:This product can expose you to chemicals including Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

Specifications

Diameter (in):

2.3

Diameter (mm):

58,58

Application:

Standard Application

Flange Diameter (mm):

593

UC System:

HDXL

Idler Rim Width (mm):

189.8

Shaft Protrusion Length (in):

1.985

Undercarriage Width (mm):

Height (in):

2.3

Idler Rim Width (in):

7.472

Shaft Protrusion Length (mm):

50.42

Machine Side:

Interchangeable

Height (mm):

Flange Diameter (in):

23.35

Tread Diameter (in):

21.457

Center Flange Width (mm):

93.5

Tread Type:

Conventional Tread

Length (in):

2.283

Tread Diameter (mm):

545

Bolt Size (in):

3/4

Center Flange Diameter (in):

23.346

Center Flange Width (in):

3.681

Shaft Length (in):

14.646

Center Flange Diameter (mm):

593

Shaft Length (mm):

372

Shaft Diameter (mm):

Shaft OD (mm):

107.71

Shaft Diameter (in):

Shaft OD (in):

4.241

Length (mm):

Compatible Models

Track-Type Tractor

Warranty Information

Return Policy

Parts diagram for 202-4296

Frequently bought together

202-4296

288-0934

235-5974

View All Parts

Frequently bought together

202-4296: 545mm Tread Track Idler

288-0934: Single Flange Track Roller Bearing

235-5974: Carrier Roller Group

288-0935: Double Flange Track Roller

173-0946: Sprocket Segment

452-1402: Cap-Track Roller

Diagram

Description

Specifications

Compatible Models

Description for part number 202-4296

Description:

Idlers guide the track in and out of the track rollers. They intermittently support the machine's weight and provide a way to control track slack and tension.

Specifications for part number 202-4296

Units of Measure

Metric

Diameter (in):

2.3

Diameter (mm):

58,58

Application:

Standard Application

Flange Diameter (mm):

593

UC System:

HDXL

Idler Rim Width (mm):

189.8

Shaft Protrusion Length (in):

1.985

Undercarriage Width (mm):

Height (in):

2.3

Idler Rim Width (in):

7.472

Shaft Protrusion Length (mm):

50.42

Machine Side:

Interchangeable

Height (mm):

Flange Diameter (in):

23.35

Tread Diameter (in):

21.457

Center Flange Width (mm):

93.5

Tread Type:

Conventional Tread

Length (in):

2.283

Tread Diameter (mm):

545

Bolt Size (in):

3/4

Center Flange Diameter (in):

23.346

Center Flange Width (in):

3.681

Shaft Length (in):

14.646

Center Flange Diameter (mm):

593

Shaft Length (mm):

372

Shaft Diameter (mm):

Shaft OD (mm):

107.71

Shaft Diameter (in):

Shaft OD (in):

4.241

Length (mm):

Compatible Models for part number 202-4296

TRACK-TYPE TRACTOR

D6R D6T D6R LGP D6R II D6T XW D6T LGP D6T LGPPAT D6T XW PAT D6 XE D6R III D6T XL D6XE D6

Compare Alternate Parts

202-4296: 545mm Tread Track Idler

Diameter (in)

2.3

Shaft Protrusion Length (in)

1.985

Height (in)

2.3

Description

Cat® Idler Group Standard Application, 189.8mm Rim Width, Interchangeable, 545mm Tread Diameter, Conventional Tread

395-4326: Track Idler Group

Idler Rim Width (in)

7.472

Tread Diameter (in)

21.457

Shaft Length (in)

14.646

Description

Cat® Idler Group Standard Application, 189.8mm Rim Width, Interchangeable, 545mm Tread Diameter, Conventional Tread

206-1897: Track Idler Group

Diameter (in)

2.3

Shaft Protrusion Length (in)

1.985

Height (in)

2.3

Description

Cat® Idler Group Landfill Application, 189.8mm Rim Width, Interchangeable, 545mm Tread Diameter, Conventional Tread

206-2087: Track Idler Group

Diameter (in)

2.3

Shaft Protrusion Length (in)

1.985

Height (in)

2.3

Description

Cat® Idler Group Landfill Application, 189.8mm Rim Width, Interchangeable, 545mm Tread Diameter, Conventional Tread

650-2724: 545mm Outer Diameter Track Idler

Tread Diameter (in)

21.457

Center Flange Diameter (in)

23.346

Shaft Length (in)

14.646

Description

Cat® Idler Group Standard Application, 189.9mm Rim Width, Interchangeable, 545mm Tread Diameter, Conventional Tread
