208-5235: Bucket Tip
Product Images

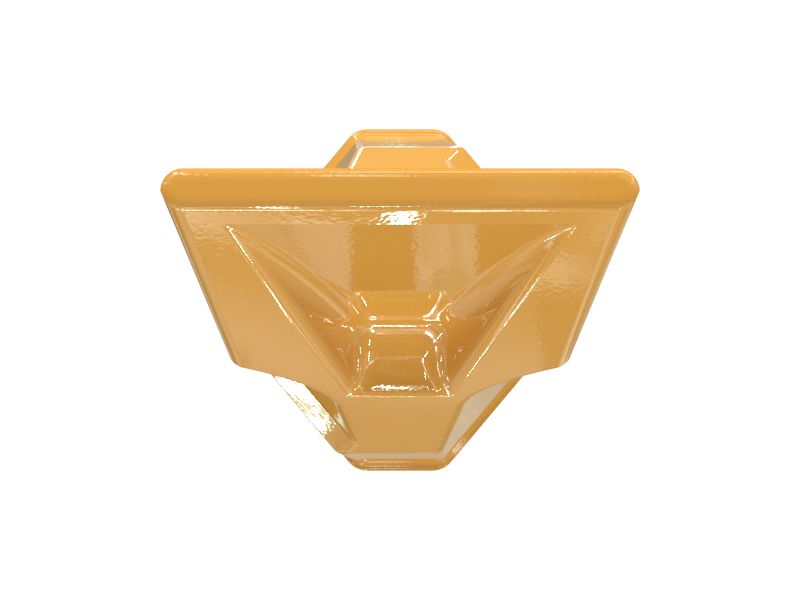

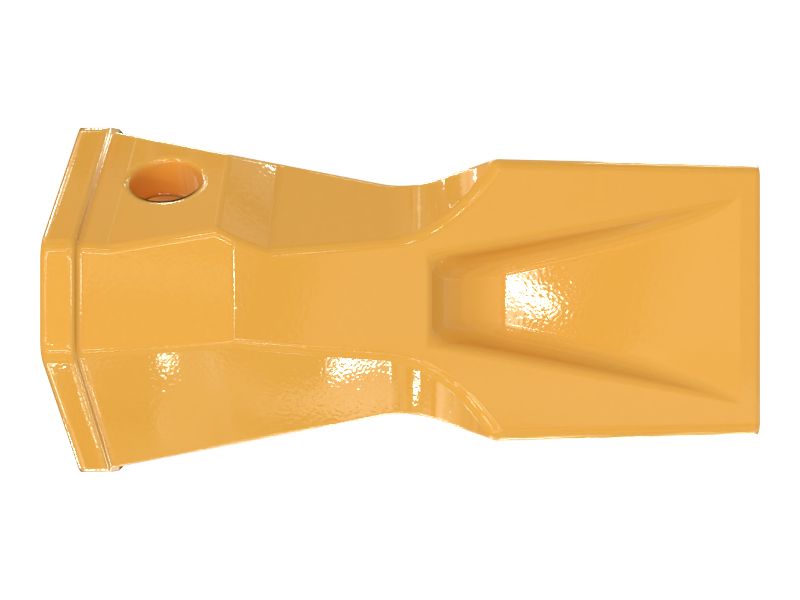

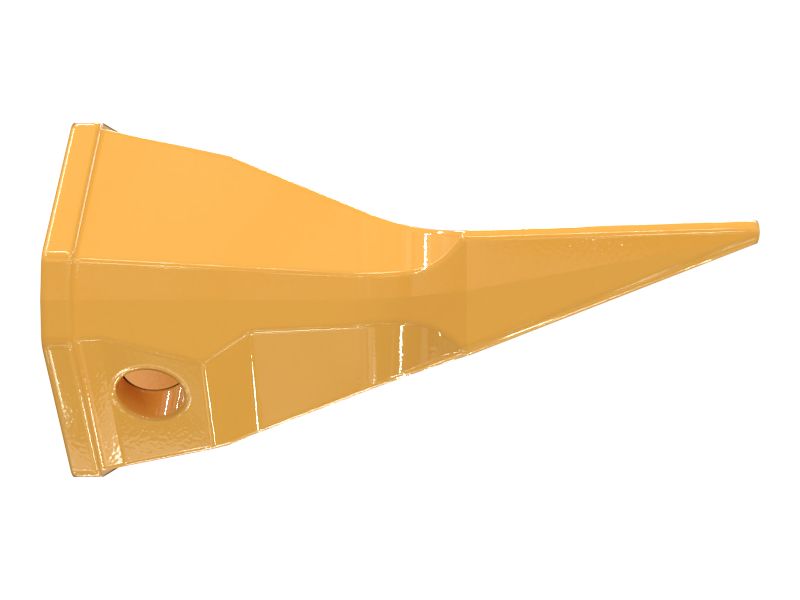

208-5235: Bucket Tip
Cat® DRS230 Penetration Bucket Tip
Brand: Cat
Check Price
Check Price
Login to view your customer price
Warranty Information
Warranty Information
Generally, warranty for parts purchased on Parts.Cat.Com is 12 months from the invoice date as defined in the Caterpillar Limited Warranty. Parts Warranty covers defects in material and workmanship throughout the Warranty period once it has been installed. For complete Warranty detail contact your local Cat Dealer.
Need More Help? Contact Us
Find a DealerEmail
Return Policy
Return Policy Information
Unless otherwise noted by a non-returnable part
icon, most parts can be returned to your authorized Cat® dealer under their return policy.
Need More Help? Contact Us
Find a DealerEmail
Warranty Information
Warranty Information
Generally, warranty for parts purchased on Parts.Cat.Com is 12 months from the invoice date as defined in the Caterpillar Limited Warranty. Parts Warranty covers defects in material and workmanship throughout the Warranty period once it has been installed. For complete Warranty detail contact your local Cat Dealer.
Need More Help? Contact Us
Find a DealerEmail
Return Policy
Return Policy Information
Unless otherwise noted by a non-returnable part
icon, most parts can be returned to your authorized Cat® dealer under their return policy.
Need More Help? Contact Us
Find a DealerEmail
KeyKey
Factory Fit
This part is designed to fit your Cat equipment based on the manufacturer’s specifications.
Any changes to the manufacturer’s configuration might result in the product not fitting your Cat equipment. Please consult your Cat Dealer before purchasing to ensure that this part is appropriate for your Cat equipment in its current condition and assumed configuration. This indicator cannot guarantee compatibility for all parts.
Remanufactured
Non-Returnable
Kit
Replaced
Remanufactured
Non-Returnable
Kit
Replaced
Chat with an expert
Add Equipment
Add Equipment
Add Equipment
To find the parts that fit.To find the parts that fit.
Parts diagram for 208-5235
View Detailed Parts Diagrams
Add Your Equipment
Description for part number 208-5235
Made from through-hardened DH-2 steel, both the tips and adapters of the Diagonal Retention System (DRS) deliver optimal strength and resistance to abrasive wear. The DRS features a right-hand drive pin slot at a 40° angle from the previous horizontal system.
Featuring a leading edge with 60% less cross-sectional area, Penetration tips provide maximum penetration with densely-compacted materials. The single center rib self-sharpens as it wears, increasing wear life and reducing downtime. We also offer Penetration tips with Abrasion Resistant Material (ARM). Cast from steel with properties that maintain hardness for long wear life, our durable teeth make it possible for your machines to deliver the performance you demand.
Designed for longer life and easier serviceability, our DRS line of tips and adapters provides a variety of tips for your excavating needs. Choosing genuine Cat® teeth is always the right choice for your hard-working iron.
Attributes: • Leading edge with 60% less cross-sectional area • Single center rib that self-sharpens during wear
Applications: • Densely-compacted materials
View More
Warning:This product can expose you to chemicals including Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Specifications for part number 208-5235
Units of Measure
USMetric
Width (mm): 76.2
Height (mm): 76.2
Length (in): 6.3
Tip Size: DRS230
Material: Low Alloy Steel
Height (in): 3
Length (mm): 160.02
View More
Compatible Models for part number 208-5235
BACKHOE LOADER
424D 420D 430D 432D 420F 430F 416C 428D 416D 428C
View More
DiagramDescriptionSpecificationsCompatible Models
Parts diagram for 208-5235
View Detailed Parts Diagrams
Add Your Equipment
Description for part number 208-5235
Made from through-hardened DH-2 steel, both the tips and adapters of the Diagonal Retention System (DRS) deliver optimal strength and resistance to abrasive wear. The DRS features a right-hand drive pin slot at a 40° angle from the previous horizontal system.
Featuring a leading edge with 60% less cross-sectional area, Penetration tips provide maximum penetration with densely-compacted materials. The single center rib self-sharpens as it wears, increasing wear life and reducing downtime. We also offer Penetration tips with Abrasion Resistant Material (ARM). Cast from steel with properties that maintain hardness for long wear life, our durable teeth make it possible for your machines to deliver the performance you demand.
Designed for longer life and easier serviceability, our DRS line of tips and adapters provides a variety of tips for your excavating needs. Choosing genuine Cat® teeth is always the right choice for your hard-working iron.
Attributes: • Leading edge with 60% less cross-sectional area • Single center rib that self-sharpens during wear
Applications: • Densely-compacted materials
View More
Warning:This product can expose you to chemicals including Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Specifications for part number 208-5235
Units of Measure
USMetric
Width (mm): 76.2
Height (mm): 76.2
Length (in): 6.3
Tip Size: DRS230
Material: Low Alloy Steel
Height (in): 3
Length (mm): 160.02
View More
Compatible Models for part number 208-5235
BACKHOE LOADER
424D 420D 430D 432D 420F 430F 416C 428D 416D 428C
View More
Will it fit or looking for a repair?Add your equipment to see if this part fits or if there are repair options available.
