Cat® Idler Group Standard Application, 159mm Rim Width, Interchangeable, 507mm Tread Diameter, Conventional Tread

Brand: Cat

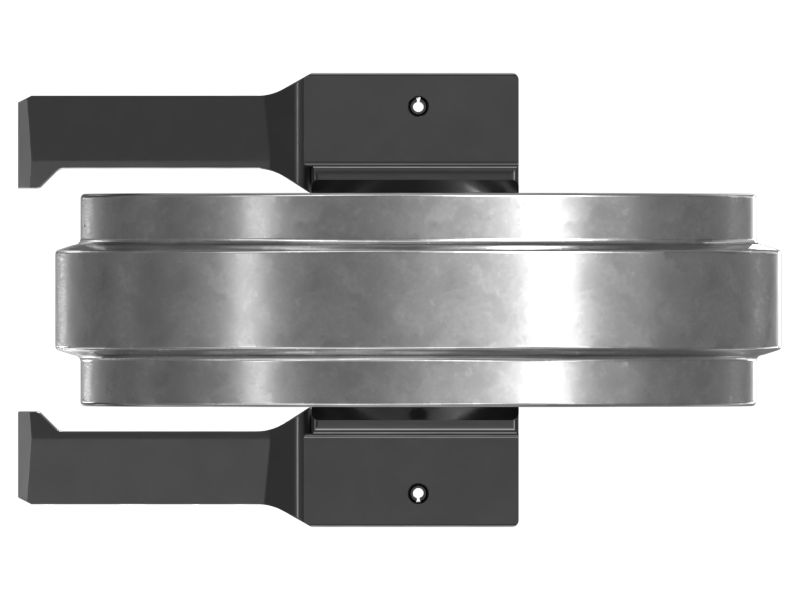

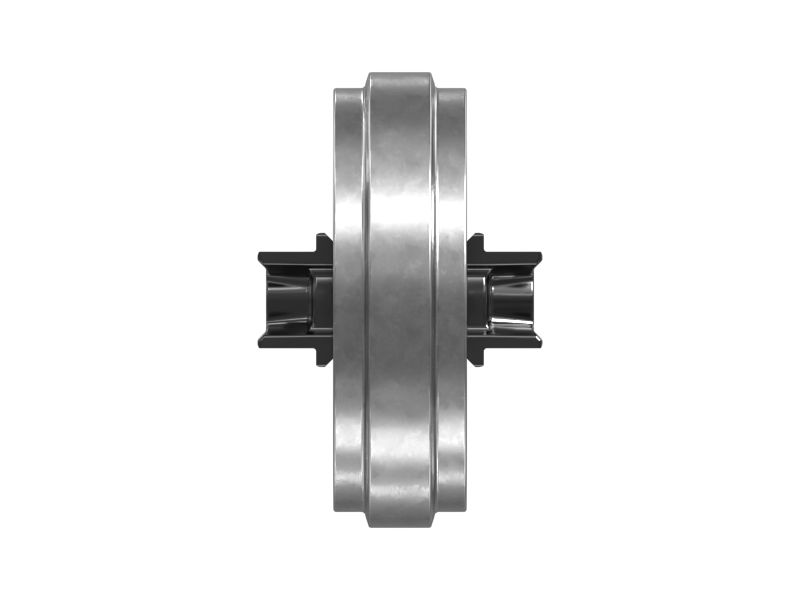

Product Images

248-7143: Idler Group

Cat® Idler Group Standard Application, 159mm Rim Width, Interchangeable, 507mm Tread Diameter, Conventional Tread

Brand: Cat

Will it fit or looking for a repair?Add your equipment to see if this part fits or if there are repair options available.

Check Price

Warranty Information

Return Policy

Frequently bought together

248-7143

8E-9805

158-4381

View All Parts

Frequently bought together

248-7143: Idler Group

8E-9805: Track Sprocket

158-4381: Track Seal

8E-5600: Carrier Roller Group

188-3064: Track Pin

7Y-0682: 70mm Outer Diameter Plastic Back Up Ring

Diagram

Description

Specifications

Compatible Models

Parts diagram for 248-7143

Specifications for part number 248-7143

Units of Measure

Metric

Diameter (in):

2.6

Diameter (mm):

64.9

Application:

Standard Application

Flange Diameter (mm):

545

Idler Rim Width (mm):

159

UC System:

Shaft Protrusion Length (in):

3.169

Undercarriage Width (mm):

64.9

Height (in):

2.6

Shaft Protrusion Length (mm):

80.5

Idler Rim Width (in):

6.26

Mounting Cap Bolt Thread Size:

M16

Machine Side:

Interchangeable

Height (mm):

64.9

Bolt Size (mm):

Flange Diameter (in):

21.46

Tread Diameter (in):

19.961

Center Flange Width (mm):

Tread Type:

Conventional Tread

Length (in):

2.555

Tread Diameter (mm):

507

Bolt Size (in):

Center Flange Width (in):

2.874

Center Flange Diameter (in):

21.457

Shaft Length (in):

12.598

Bearing Mounting Length (mm):

300

Center Flange Diameter (mm):

545

Shaft Length (mm):

320

Bearing Mounting Length (in):

11.811

Shaft Diameter (mm):

64.9

Shaft OD (mm):

64.92

Shaft Diameter (in):

Shaft OD (in):

2.556

Length (mm):

64.9

Compatible Models for part number 248-7143

UNDERCARRIAGE

OEMS

ROTARY/TRACK DRILLS

MD5150C MD5075 MD5075C

HEX BASED SPL SOLUTION

320E

EXCAVATOR

318E L 320E L 316F L 320C L 320D2 GC 318D2 320D2 FM 320B 323F SA 320C 320D 320D LN 320E 323 GC 316F 323GC 320D GC 320E LRR 319D L 315D L 323E L 317 325F LCR 323D2 L 320D2 323F LN 319D 320D LRR 315C 318D2 L 320C FM 319C 321D LCR 323F 320E LN 311C 323D 318F L 320 323F OEM 318B N 318D L 320F L 320B N 320D L 320B L 316E L 320D FM RR 325 313D2 323 323E LN 318C 318F 318B 320D FM OTHER 320D RR 320D2 L 313D2 LGP 319D LN 323F L 323D L 317 GC 323D LN 323D2 321C 320 GC 320E RR 325F

MOBILE HYD POWER UNIT

329D L 329E 330D2 330FMHPU 325D C7.1 323D L 323F OEM 330F 345C L

Compare Alternate Parts

248-7143: Idler Group

Diameter (in)

2.6

Shaft Protrusion Length (in)

3.169

Height (in)

2.6

Description

Cat® Idler Group Standard Application, 159mm Rim Width, Interchangeable, 507mm Tread Diameter, Conventional Tread

474-1714: Idler Group

Tread Diameter (in)

19.961

Center Flange Width (in)

2.94

Center Flange Diameter (in)

21.457

Description

Cat® Idler Group Standard Application, 159mm Rim Width, Interchangeable, 507mm Tread Diameter, Conventional Tread
