Description
Description

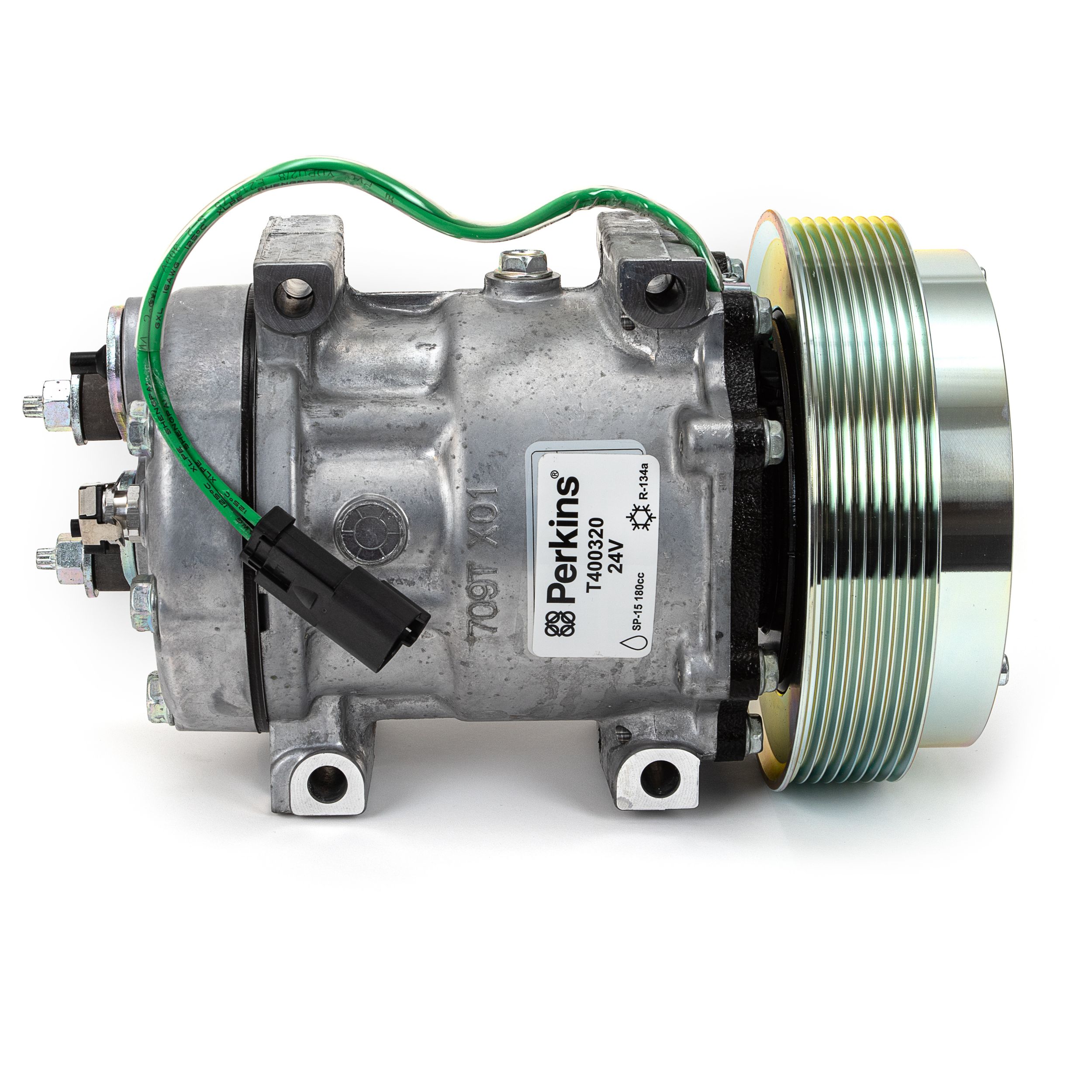

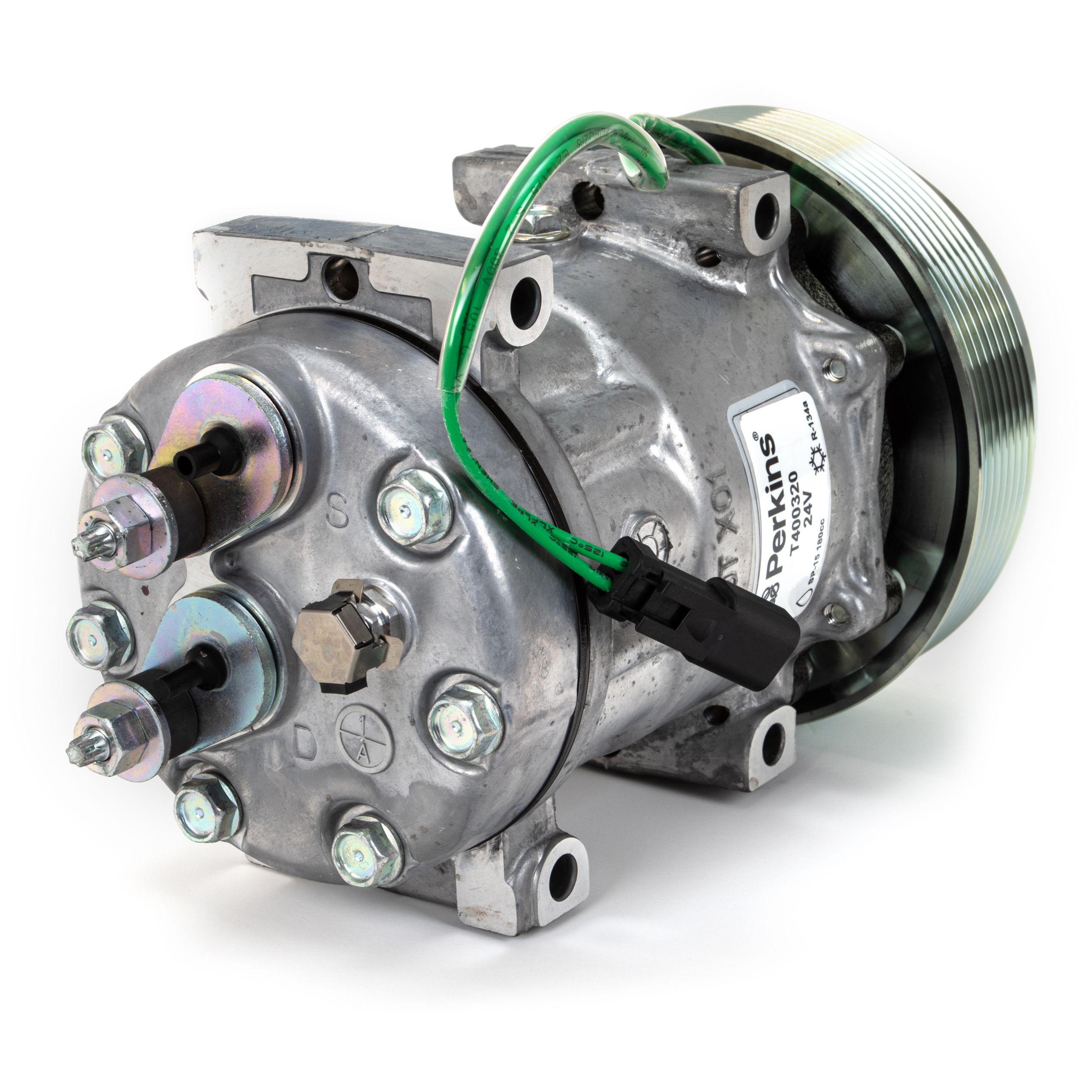

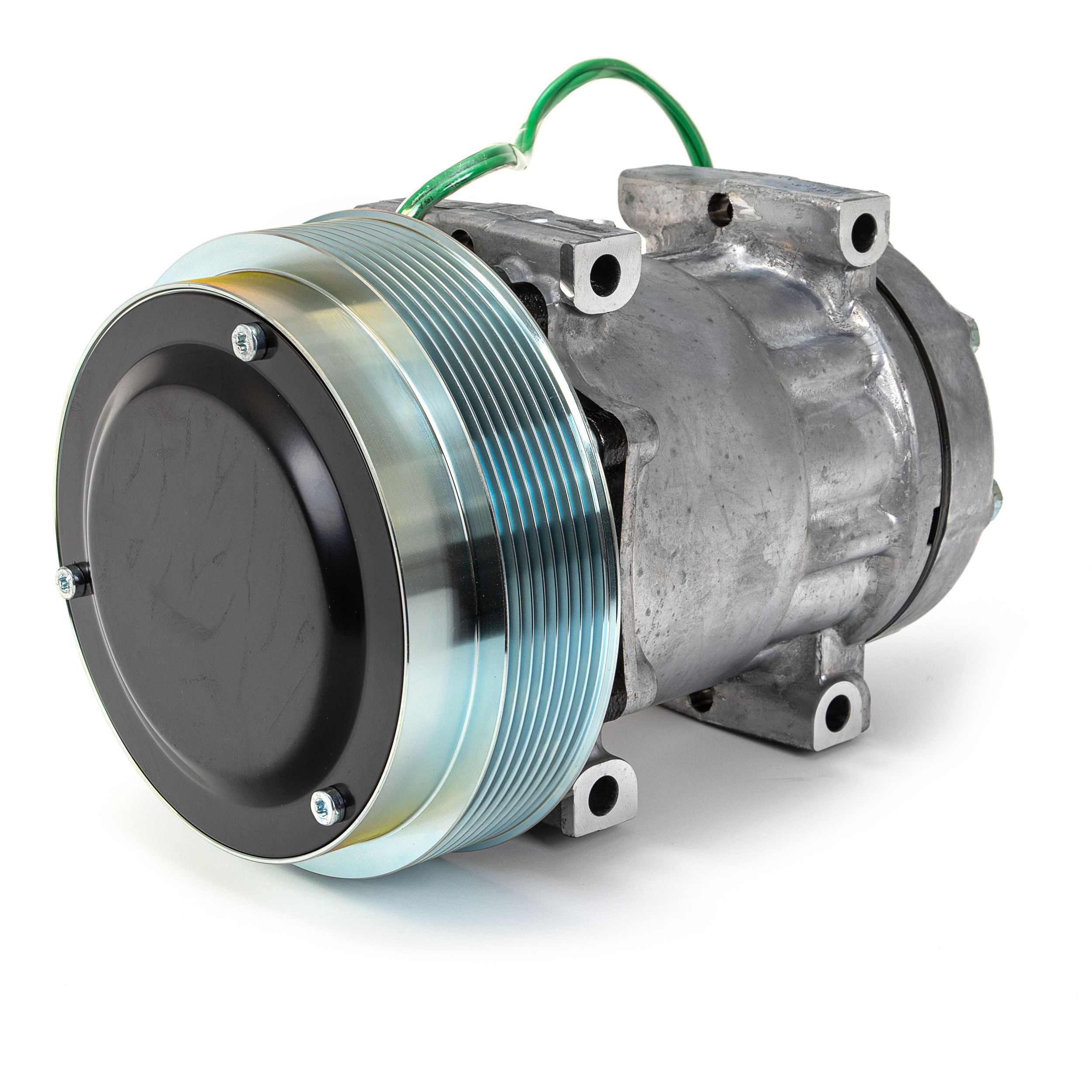

Description: The HVAC system provides heating, cooling and filtering of fresh and/or recirculating air in the operator compartment of a Cat machine. Cat compressors pressurize fluid to maintain flow rate and increase pressure required for the application.
Attributes: • Heavy duty 7 cylinder compressor • Cast aluminum body • Clutch type: Sealed Heavy Duty • Clutch voltage: 24 V • Belt type: PV-8 • Refrigerant compatibility: R134a • Includes pigtail harness with 2 pin DT connector • Recommended RPM: 2700±200 • Max RPM: 4000 • For use only on systems which provide a low pressure shut-off switch in the high pressure side
Application: Compressor used to circulate refrigerant throughout the HVAC system in Cat heavy-duty equipment. Consult your owner's manual or contact your local Cat Dealer for more information.
Warning:This product can expose you to chemicals including Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Description: The HVAC system provides heating, cooling and filtering of fresh and/or recirculating air in the operator compartment of a Cat machine. Cat compressors pressurize fluid to maintain flow rate and increase pressure required for the application.
Attributes: • Heavy duty 7 cylinder compressor • Cast aluminum body • Clutch type: Sealed Heavy Duty • Clutch voltage: 24 V • Belt type: PV-8 • Refrigerant compatibility: R134a • Includes pigtail harness with 2 pin DT connector • Recommended RPM: 2700±200 • Max RPM: 4000 • For use only on systems which provide a low pressure shut-off switch in the high pressure side
Application: Compressor used to circulate refrigerant throughout the HVAC system in Cat heavy-duty equipment. Consult your owner's manual or contact your local Cat Dealer for more information.
Warning:This product can expose you to chemicals including Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Generally, warranty for parts purchased on Parts.Cat.Com is 12 months from the invoice date as defined in the Caterpillar Limited Warranty. Parts Warranty covers defects in material and workmanship throughout the Warranty period once it has been installed. For complete Warranty detail contact your local Cat Dealer.
Need More Help? Contact Us
Find a DealerEmail
Return Policy
Return Policy Information
Unless otherwise noted by a non-returnable part
icon, most parts can be returned to your authorized Cat® dealer under their return policy.
Description: The HVAC system provides heating, cooling and filtering of fresh and/or recirculating air in the operator compartment of a Cat machine. Cat compressors pressurize fluid to maintain flow rate and increase pressure required for the application.
Attributes: • Heavy duty 7 cylinder compressor • Cast aluminum body • Clutch type: Sealed Heavy Duty • Clutch voltage: 24 V • Belt type: PV-8 • Refrigerant compatibility: R134a • Includes pigtail harness with 2 pin DT connector • Recommended RPM: 2700±200 • Max RPM: 4000 • For use only on systems which provide a low pressure shut-off switch in the high pressure side
Application: Compressor used to circulate refrigerant throughout the HVAC system in Cat heavy-duty equipment. Consult your owner's manual or contact your local Cat Dealer for more information.
View More
Warning:This product can expose you to chemicals including Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Specifications for part number 324-9711
Units of Measure
USMetric
Length (in): 1.3 (Stroke)
Material: Alloy Aluminum
Overall Length (in): 10.2
Bore Diameter (mm): 29.3
Pins: 2
Connector Type: 2 Pin DT
Outside Diameter (in): 6
Outside Diameter (mm): 152
Material Description: Cast Aluminum
Bore Diameter (in): 1.2
Overall Length (mm): 258.3
Voltage (VAC): 24 (VDC)
Length (mm): 32.8 (Stroke)
View More
Compatible Models for part number 324-9711
TRACK-TYPE TRACTOR
D9T D8T D6T XW D6T LGPPAT D6T LGP D11T D10T2 D6T XL PAT D6T XW PAT D6T XL
PIPELAYER
PL83 PL72 PL87
HYDRAULIC SHOVEL
6015B
View More
