333-5632: Undercarriage Track Link

Home

Undercarriage

Track Components

Link Assemblies

Cat® Link Assembly Press Fit Master, 38 Sections, Press Fit, Sealed, 135mm Track Pitch

Brand: Cat

Discontinued

Product Images

333-5632: Undercarriage Track Link

Contact your dealer for replacement options.

Cat® Link Assembly Press Fit Master, 38 Sections, Press Fit, Sealed, 135mm Track Pitch

Brand: Cat

Will It Fit?

Add your equipment to see if this part fits or if there are repair options available.

Add Equipment

Will it fit or looking for a repair?Add your equipment to see if this part fits or if there are repair options available.

DISCONTINUED

Diagram

Description

Specifications

Compatible Models

Parts diagram for 333-5632

Specifications for part number 333-5632

Units of Measure

Metric

Link Inside Spread Sprocket (in):

1.953

Number of Track Sections:

38.0

Rotating Bushing Track (Rbt):

Material:

Carbon Steel

Pin Retention System:

Press Fit

Rail To Bushing OD (mm):

18.5

UC System:

Link Inside Spread Roller (in):

2.256

Rail To Bushing OD (in):

0.728

Shoe Bolt Hole Spacing B (mm):

Link Inside Spread Roller (mm):

57.3

Shoe Bolt Hole Spacing C (mm):

104

Shoe Bolt Hole Spacing A (in):

1.811

Link Height (mm):

Number of Sections:

Shoe Bolt Hole Spacing A (mm):

Shoe Bolt Hole Spacing B (in):

3.15

Bushing OD (in):

1.381

Link Outside Spread (in):

4.012

Bushing OD (mm):

35.07

Bolt Hole Diameter (in):

0.492

Grease Track Type:

Not Applicable

Link Inside Spread Sprocket (mm):

49.6

Link Outside Spread (mm):

101.9

Seal And Lube Type:

Sealed

Bolt Hole Diameter (mm):

12.5

Bolt Size (mm):

1/2

Master Link Type:

Press Fit Master

Track Pitch (mm):

135.0

Rail To Pin Boss OD (mm):

19.7

Bolt Size (in):

1/2

Track Pitch (in):

5.315

Rail To Pin Boss OD (in):

0.776

Track Bolt Thread:

M12

Pin Length (in):

5.512

Shoe Bolt Hole Spacing C (in):

4.094

Link Height (in):

2.638

Wear Sensor:

Track Stiffening System:

Not Applicable

Master Bolt Thread:

M12

Pin Length (mm):

140

Compatible Models for part number 333-5632

MINI HYD EXCAVATOR

306E 306 306E2 305.5E2 305.5E

Compare Alternate Parts

Link Inside Spread Sprocket (in)

Link Inside Spread Roller (in)

Rail To Bushing OD (in)

Description

333-5632: Undercarriage Track Link

1.953

2.256

0.728

Cat® Link Assembly Press Fit Master, 38 Sections, Press Fit, Sealed, 135mm Track Pitch

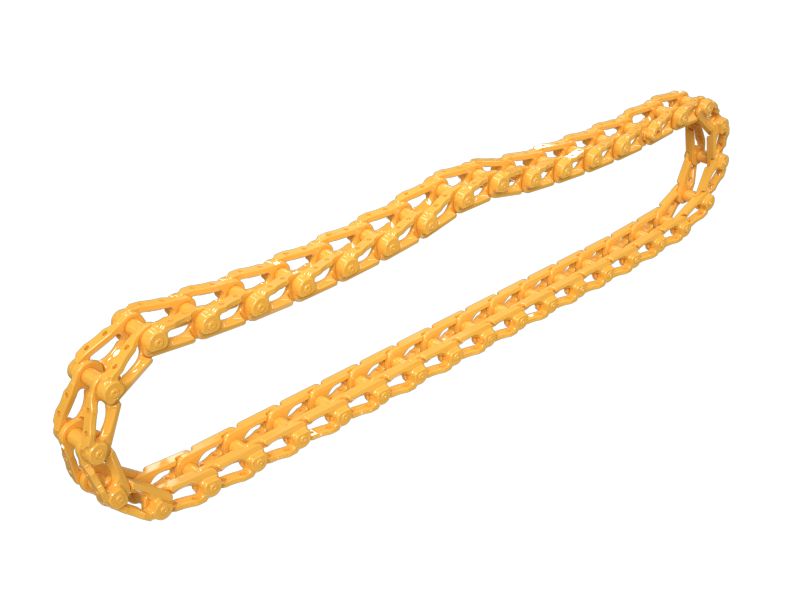

601-4920: Link Assembly

1.937

2.181

0.709

Cat® Link Assembly GLT, Press Fit Master, 38 Sections, Press Fit, Sealed, 135mm Track Pitch

158-4766: Link Assembly

1.811

3.15

1.378

Cat® Link Assembly 38 Sections, 135mm Track Pitch
