488-4875: Electronic Control Module

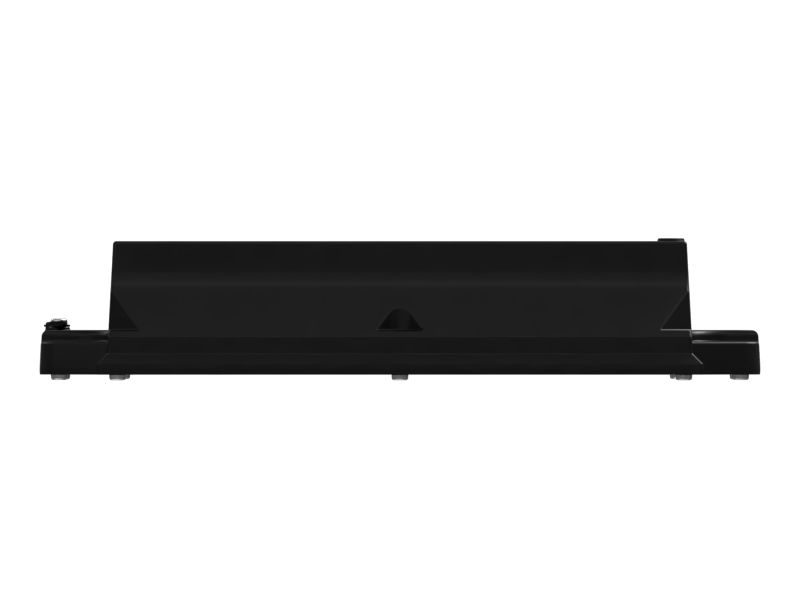

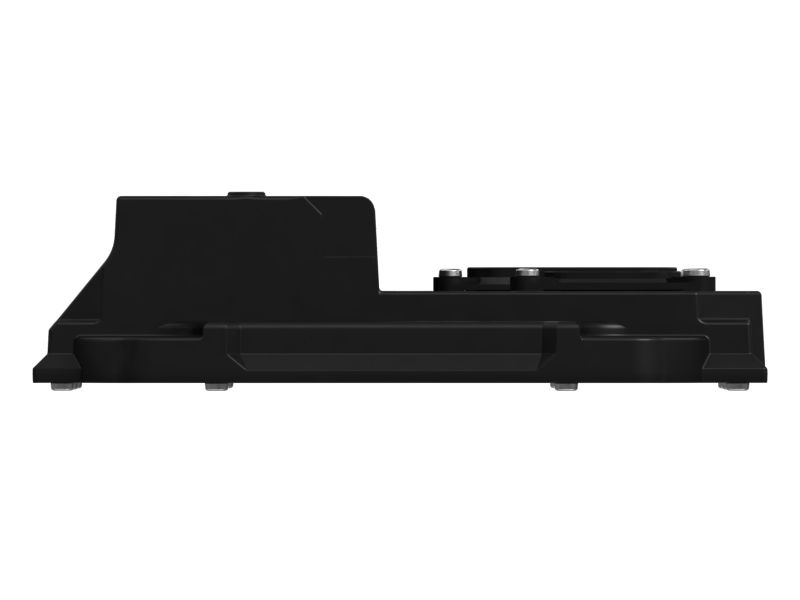

Cat® Basic Electronic Control Module with Connector Plugs used in Engine

Brand: Cat

Frequently bought together

488-4875

228-7100

214-7568

View All Parts

Frequently bought together

488-4875: Electronic Control Module

228-7100: 9.4mm Inside Diameter Seal-O-Ring

214-7568: STOR O-Ring Seal (SAE 9/16-18)

8T-9655: Two Piece Isolation Mount

228-7101: 2.1 x 11.4mm 90A FKM O-Ring

238-5081: 2.46 x 19.18mm 90A FKM O-Ring

Diagram

Description

Specifications

Compatible Models

Description for part number 488-4875

Description:
Cat communication control groups provide remote monitoring and equipment managing systems for efficient operation of heavy-duty equipment.

Attributes:
• Programmable electronic engine control group
• A4E4 V3.1 software
• 70-pin and 120-pin Key 2 connection
• Cast aluminum housing
• RoHS compliant
• Labeled, including part and serial number
• Designed to work in unison with the rest of your Cat components to ensure maximum potential of your equipment

Application:
Consult your owner’s manual or contact your local Cat Dealer for more information. Cat components can operate in heavy-duty applications such as severe vibration, shock, extreme operating temperature ranges, thermal cycle, thermal shock, humidity, corrosion and excessive dust.

Warning:This product can expose you to chemicals including Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

Specifications for part number 488-4875

Units of Measure

Metric

Compatible Models for part number 488-4875

GENERATOR

SR500 SR5 SR4B

GENERATOR SET

DE1400 D1250 C27 C32 XQP1100 C175-20 C32 GEN SET C175-16 DE1500 3516C GEN DE1250S D1000 DE1250 C175-16GENSET 3516C 3516B C32 GENSET D800

POWER MODULE

3516B PM3516 XQ2280 XQC1200 XQC1600

ENGINE

3516E 3512B

PETROLEUM ENGINE

C175-16

LOCOMOTIVE ENGINE

C175-16

OFF HIGHWAY TRUCK

777G 777E 777 775 789D 773 798 AC 796 AC

MOTOR GRADER

PETROLEUM GEN SET

3512B

HYDRAULIC SHOVEL

6015B 6020 6015 6040 6030 T4 6020B 6030 T2 6030

TRACK-TYPE TRACTOR

D10T2 D10T D11T

GEN SET ENGINE

C280-16 POWER SYS

ENGINE - MACHINE

3516C

ROTARY DRILL

MD6310 MD6250

MARINE ENGINE

3512C C280-16 C280-12 C175-16 3516C

INDUSTRIAL ENGINE

3512B 3516B 3516C C27

EXPANDED MINING PRODUCTS

LD350

QUARRY TRUCK

773E

TRUCK

793F AC 793F CMD 775G 797 773G LRC 775G OEM 793F OEM 793F XQ 795F XQ 793D 773G 797F 793F 795F AC 794 AC 775G LRC 773G OEM 789D 785C 785D 777G 797B 777F

SHOVEL

6040

Compare Alternate Parts

Length (in)

Width (in)

Height (in)

Description

488-4875: Electronic Control Module

14.0

10.1

2.6

Cat® Basic Electronic Control Module with Connector Plugs used in Engine

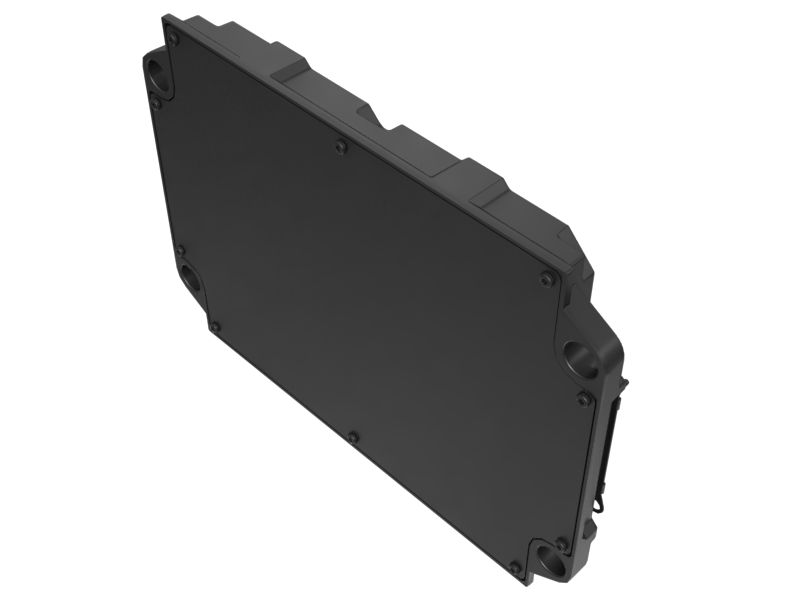

11R-0536: Cat® Reman New with Core (NWC) Control Module (ECM)

Cat® Reman Electronic Control Module (ECM) (NWC) (A4E4V3.1 LGE) (Programmable)

20R-8183: Cat® Reman Electronic Control Module (ECM)

Cat® Reman Electronic Control Module (ECM) (A4E4V3.1) (LGE)
