HomeHydraulicsHydraulic Cylinders & ComponentsHydraulic Cylinder Seals5J-5020: Two Piece Seal
Home
HydraulicsHydraulic Cylinders & ComponentsHydraulic Cylinder Seals

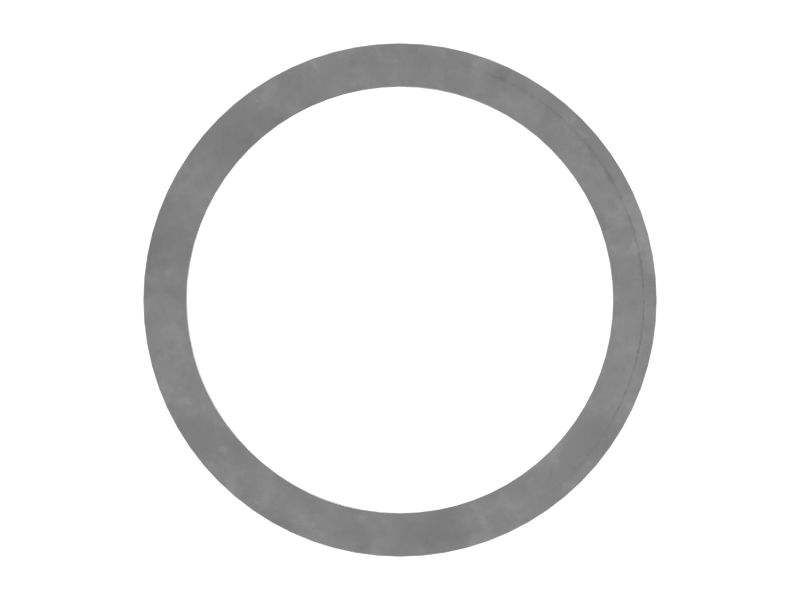

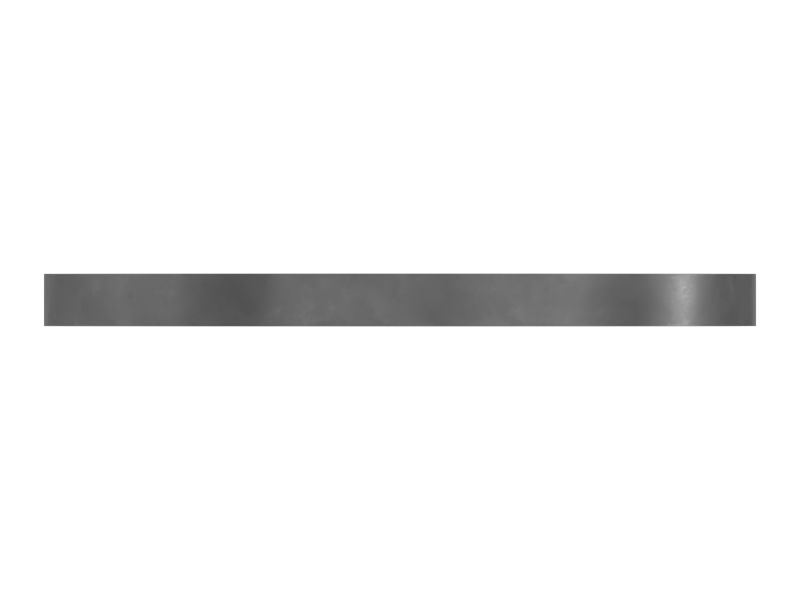

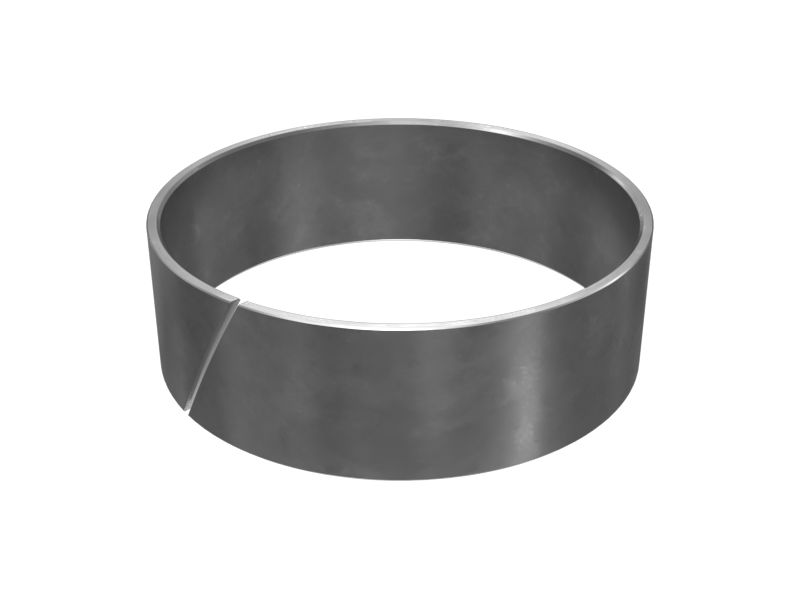

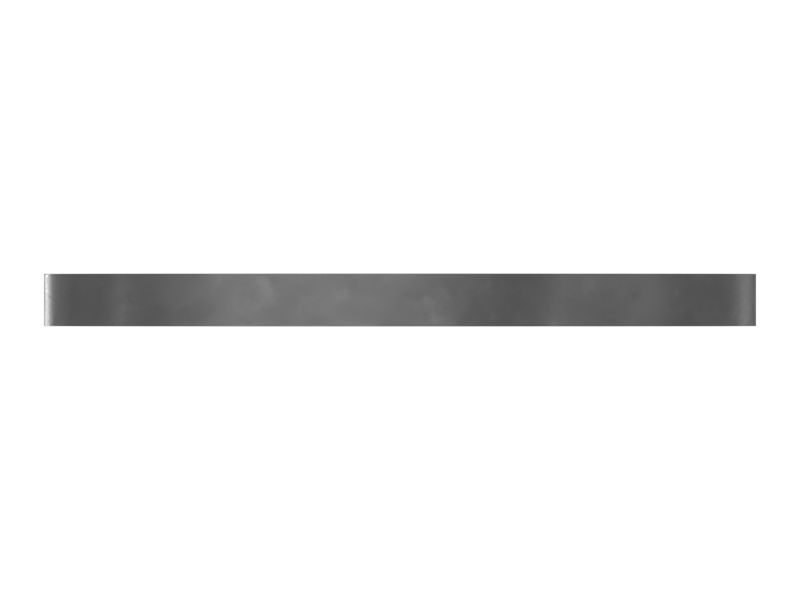

5J-5020: Two Piece Seal
5J-5020: Two Piece Seal

Cat® Two Piece Seal for Ripper Lift Cylinder

Brand: Cat

Product Images
5J-5020: Two Piece Seal
5J-5020: Two Piece Seal
5J-5020: Two Piece Seal
5J-5020: Two Piece Seal
5J-5020: Two Piece Seal

Cat® Two Piece Seal for Ripper Lift Cylinder

Brand: Cat

Check Price
Check Price
Login to view your customer price
Warranty Information
Return Policy
Available Cat Reman parts
The following parts are alternative Cat® Reman
The Cat Reman difference can be found in our commitment to deliver like new quality. From design and engineering to assembly and quality control, our top talent uses state-of-the-art techniques to create our line of over 8,000 Cat Reman products –– all backed by a same-as-new, 12-month Caterpillar Parts Warranty†.

† Limitations may apply. For complete details about the applicable Caterpillar Limited Warranty, contact an authorized Cat dealer.

parts.
The following parts are alternative Cat® Reman
Cat Reman
The Cat Reman difference can be found in our commitment to deliver like new quality. From design and engineering to assembly and quality control, our top talent uses state-of-the-art techniques to create our line of over 8,000 Cat Reman products –– all backed by a same-as-new, 12-month Caterpillar Parts Warranty†.
† Limitations may apply. For complete details about the applicable Caterpillar Limited Warranty, contact an authorized Cat dealer.
parts.
544-4874
544-4874 : Hydraulic Cylinder Piston Seal
Check Price
Description
Description

A two-piece seal, consisting of a piston ring and an expander, which prevents oil transfer between the rod end of the cylinder and the cap end. The piston seal is usually made of Teflon, with nylon available for pressure greater than 3000 psi (20,670 kpa). The various shaped expanders are nitrile.

Warning:This product can expose you to chemicals including 1,3-Butadiene, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

A two-piece seal, consisting of a piston ring and an expander, which prevents oil transfer between the rod end of the cylinder and the cap end. The piston seal is usually made of Teflon, with nylon available for pressure greater than 3000 psi (20,670 kpa). The various shaped expanders are nitrile.

Warning:This product can expose you to chemicals including 1,3-Butadiene, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Specifications
Specifications
Units of MeasureUSMetric
Groove Width - A (+/- 0.002inch) (in): 0.38
Groove Diameter - B (+/- 0.0762 mm) (mm): 107.32
Bore Diameter (in): 5.00
Bore Diameter (mm): 127.00
Seal Shape: Type 1
Groove Diameter - B (+/- 0.003inch) (in): 4.23
Groove Width - A (+/- 0.0508 mm) (mm): 9.63
Units of MeasureUSMetric
Groove Width - A (+/- 0.002inch) (in): 0.38
Groove Diameter - B (+/- 0.0762 mm) (mm): 107.32
Bore Diameter (in): 5.00
View More
Compatible Models
Compatible Models
Underground Art Truck
AE40AD45BAD60AD55AD55BAD63AD45AD40
Shovel Logger
345C
Bucket
BUCKET HYDBUCKET
Load Haul Dump
R3000HR1700 IIR2900GR1700GR1300R2900
Winch
5556H
Motor Grader
24H1612F140B16G14G14E
Wheel Skidder
530B
Track-Type Tractor
D6H XLD6H XRD6R IIID8KD6H IID6R IID5H XLD4ED4E SRD5HD6CD6RD6MD6ND6H
Pipelayer
594H594
Tool Bar
6
Log Loadr Forst Mach
558
Asphalt Finisher
MF41WD
Excavator
322B L324D FM LL325D FM LL325B L324D FM320C FM568 FM LL320D FM RR325C FM330B L330D FM548325D FM320D2 FM320D558320B FM LL568 FM245322C FM320D FM245D320B LL330C FM245B538
Ripper Scarifier
16G
Wheel Tractor
623B621B615621R621E621G621H627621623615C627B
Hydraulic Control
44143183B140
Track Loader
973C973D973K973977H977K977L955C955H955K955L
Soil Compactor
825C825B
Wheel Dozer
834824B834B824C824
Landfill Compactor
826C826B
Wheel Loader
962972G972K972M980988950K962K950M962M988B980B930966C938M966G926M966K966M950
Articulated Truck
D300ED300D
Ripper
8D654D5977
Truck
785769769B
Wheel Scraper
615621623B623E613613C613B627B627E615C613C II621E621B
Logger
322C
Bulldozer
65A5P5S814S6S6SU977A8C8A824S8S8U8R8259554A
Track-Type Loader
973977K
Feller Buncher
FB518
View More
Underground Art Truck
AE40AD45BAD60AD55AD55BAD63AD45AD40
Warranty Information
Return Policy
Parts diagram for 5J-5020
View Detailed Parts Diagrams
Add Your Equipment
Frequently bought together
5J-50205J-5020
2K-40962K-4096
5F-31445F-3144
View All Parts
DiagramDescriptionSpecificationsCompatible Models
Parts diagram for 5J-5020
View Detailed Parts Diagrams
Add Your Equipment
Description for part number 5J-5020

A two-piece seal, consisting of a piston ring and an expander, which prevents oil transfer between the rod end of the cylinder and the cap end. The piston seal is usually made of Teflon, with nylon available for pressure greater than 3000 psi (20,670 kpa). The various shaped expanders are nitrile.

View More
Warning:This product can expose you to chemicals including 1,3-Butadiene, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Specifications for part number 5J-5020

Units of Measure

USMetric
Groove Width - A (+/- 0.002inch) (in): 0.38
Groove Diameter - B (+/- 0.0762 mm) (mm): 107.32
Bore Diameter (in): 5.00
Bore Diameter (mm): 127.00
Seal Shape: Type 1
Groove Diameter - B (+/- 0.003inch) (in): 4.23
Groove Width - A (+/- 0.0508 mm) (mm): 9.63
View More
Compatible Models for part number 5J-5020

UNDERGROUND ART TRUCK

AE40 AD45B AD60 AD55 AD55B AD63 AD45 AD40

SHOVEL LOGGER

345C

BUCKET

BUCKET HYD BUCKET

LOAD HAUL DUMP

R3000H R1700 II R2900G R1700G R1300 R2900

WINCH

55 56H

MOTOR GRADER

24H 16 12F 140B 16G 14G 14E

WHEEL SKIDDER

530B

TRACK-TYPE TRACTOR

D6H XL D6H XR D6R III D8K D6H II D6R II D5H XL D4E D4E SR D5H D6C D6R D6M D6N D6H

PIPELAYER

594H 594

TOOL BAR

6

LOG LOADR FORST MACH

558

ASPHALT FINISHER

MF41WD

EXCAVATOR

322B L 324D FM LL 325D FM LL 325B L 324D FM 320C FM 568 FM LL 320D FM RR 325C FM 330B L 330D FM 548 325D FM 320D2 FM 320D 558 320B FM LL 568 FM 245 322C FM 320D FM 245D 320B LL 330C FM 245B 538

RIPPER SCARIFIER

16G

WHEEL TRACTOR

623B 621B 615 621R 621E 621G 621H 627 621 623 615C 627B

HYDRAULIC CONTROL

44 143 183B 140

TRACK LOADER

973C 973D 973K 973 977H 977K 977L 955C 955H 955K 955L

SOIL COMPACTOR

825C 825B

WHEEL DOZER

834 824B 834B 824C 824

LANDFILL COMPACTOR

826C 826B

WHEEL LOADER

962 972G 972K 972M 980 988 950K 962K 950M 962M 988B 980B 930 966C 938M 966G 926M 966K 966M 950

ARTICULATED TRUCK

D300E D300D

RIPPER

8D 6 5 4 D5 977

TRUCK

785 769 769B

WHEEL SCRAPER

615 621 623B 623E 613 613C 613B 627B 627E 615C 613C II 621E 621B

LOGGER

322C

BULLDOZER

6 5A 5P 5S 814S 6S 6SU 977A 8C 8A 824S 8S 8U 8R 825 955 4A

TRACK-TYPE LOADER

973 977K

FELLER BUNCHER

FB518

View More
Compare Alternate Parts
5J-5020
This part:
5J-5020: Two Piece Seal
Groove Width - A (+/- 0.002inch) (in)

0.38

Bore Diameter (in)

5.00

Groove Diameter - B (+/- 0.003inch) (in)

4.23

Description

Cat® Two Piece Seal for Ripper Lift Cylinder

544-4874
This part:
544-4874: Hydraulic Cylinder Piston Seal

Description

Cat® General Duty Hydraulic Cylinder Piston Seal used for proper functioning and prevent fluid leakage during the movements
