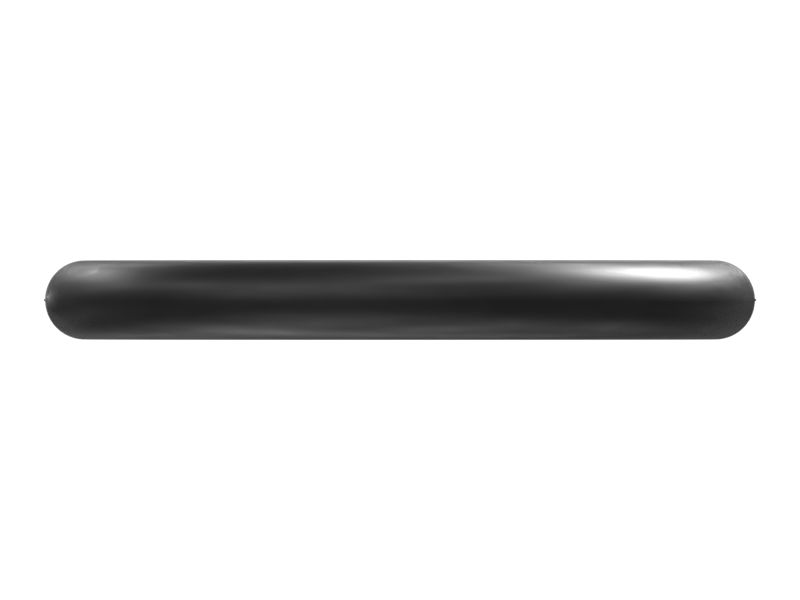

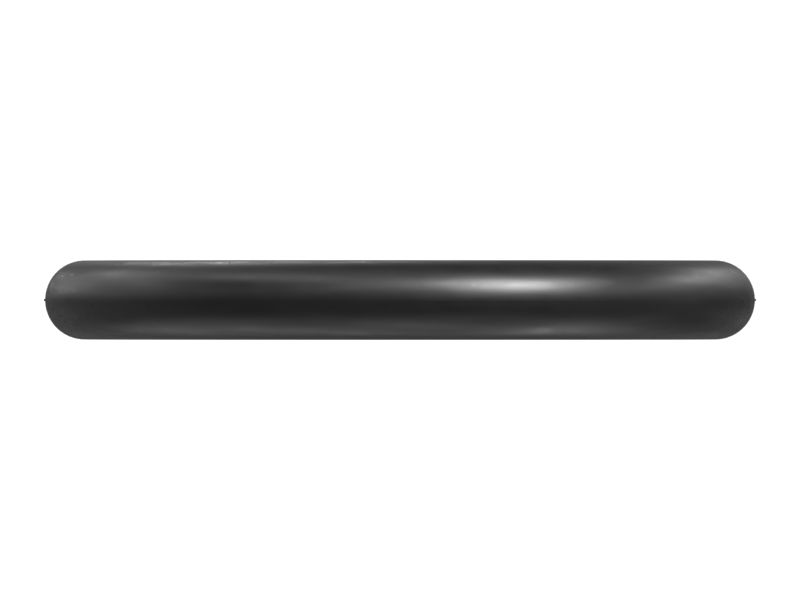

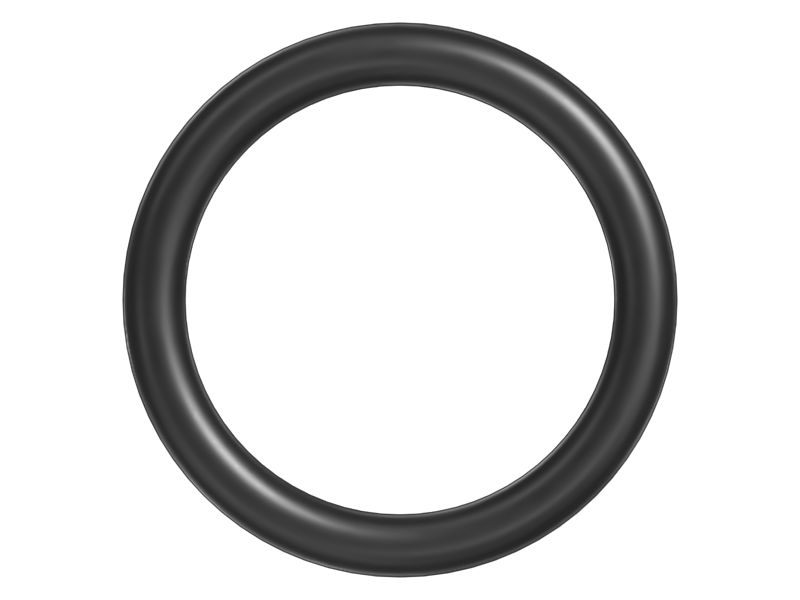

Description: O-Rings are used in static sealing and some dynamic applications.
Attributes: Cat® O-Rings are made from materials that are matched to the fluids, temperatures and pressures found in Cat engines and machines. The materials resist wear and extrusion, and provide superior resistance to seal compression set. In addition, certain Cat O-Rings are coated with PTFE to minimize seal twisting and cutting during seal installation.
Dimensions of our O-Rings are consistently held to tight tolerances to ensure they fit properly into seal grooves with the necessary seal compression.
With over 2500 O-Rings in different sizes and materials, Cat O-Rings are your best solution for your Cat and other mobile equipment O-Ring needs.
Cat Sealing systems protect more expensive parts from leaks and contamination. Protect your investment with Genuine Cat Seals.
Applications: O-Rings are used in many static and dynamic joints throughout Cat machines and engines.
View More
Warning:This product can expose you to chemicals including Carbon black (airborne, unbound particles of respirable size), which is known to the State of California to cause cancer, and Perfluorooctanoic acid (PFOA), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Material Description: EPDM rubber is capable of service temperatures of -55 to 121C and is resistant to air, water and glycol based fluids such as engine coolant and diesel exhaust fluid. EPDM rubber is not recommended in applications that require resistance to fuel oils, gasoline, diesel fuel and lubricants.
Notes: Dimensions and material descriptions provided for reference only.
Polymer: EPDM (Ethylene-propylene diene)
Applications: Ebullient cooled engine cooling systems
Not Compatible With: Aromatic fuels; Diester lubricants; Petroleum fluids
Material Hardness: 70A
Compatible With: Alcohols; Automotive brake fluids; Hot, cold water; Ketones; Ozone and sunlight; Phosphate ester fluids; Silicone fluids; Some dilute acids; Steam (200 Degree C max); Steam (400 Degree F max)
Temperature (°C): -55° - 135°
Dash Size: 325
Temperature (°F): -67° - 275°
Seal/O-Ring Type: Standard
Primary Sealing Material: Rubber
View More
Compatible Models for part number 6V-9769
PUMPER
SPT343
GENERATOR
SR4 SR4B SR4BHV
WHEEL TRACTOR
621E
GENERATOR SET
G3516B
TRUCK ENGINE
3406C 3406B 3176
RECLAIMER MIXER
RM-350
VEHICULAR ENGINE
3516 3512
PETROLEUM ENGINE
3508C 3512C 3512B
LOCOMOTIVE ENGINE
3512 3516B 3508
LANDFILL COMPACTOR
826C
MOTOR GRADER
18
WHEEL LOADER
980 XE 972K 966K 982 XE
ROAD RECLAIMER
RR-250
SOIL STABILIZER
SS-250
ENGINE - MACHINE
C4.4
GEN SET ENGINE
3406C 3406B 3508 G3508 3512 3516 G3516B
MARINE AUXILIARY
3516C
MARINE ENGINE
3512C 3516 3512 3508 3406B 3516B 3516C
STABILIZER MIXER
SM-350
ENGINE - INDUSTRIAL
3406B 3406C
INDUSTRIAL ENGINE
3516B 3516C 3508 3406C 3406 3512 3516
WHEEL SCRAPER
623F 623E
GAS ENGINE
G3516B
View More
