8T-5668: 63.5mm Inner Diameter Piston Guide Ring

Home

Hydraulics

Hydraulic Cylinders & Components

Hydraulic Cylinder Seals

Cat® 63.5mm Inner Diameter Piston Plastic Guide Ring with Angle Split used in Hydraulic Cylinder

Brand: Cat

Product Images

8T-5668: 63.5mm Inner Diameter Piston Guide Ring

8T-5668: 63.5mm Inner Diameter Piston Guide Ring

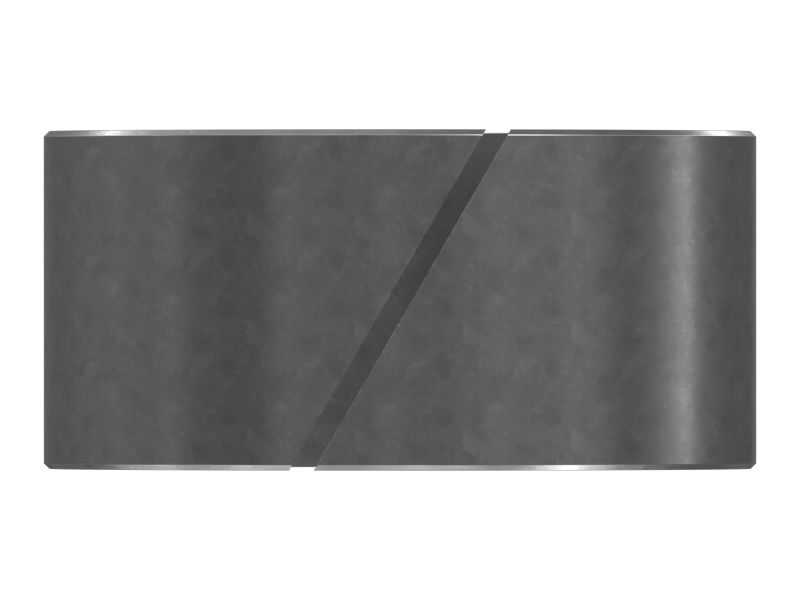

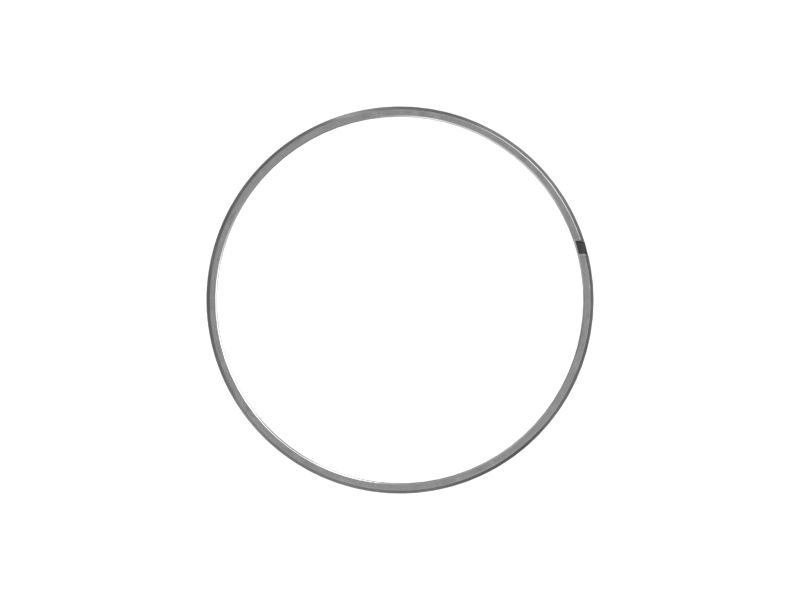

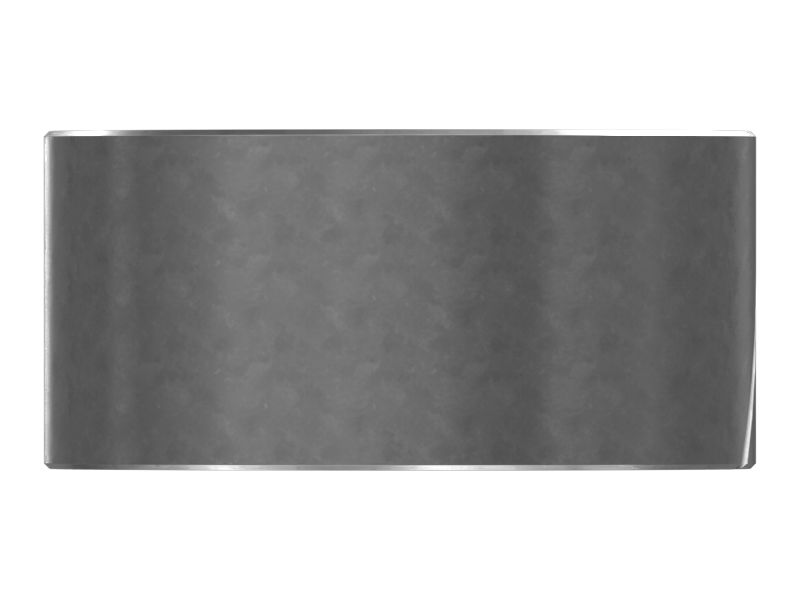

Cat® 63.5mm Inner Diameter Piston Plastic Guide Ring with Angle Split used in Hydraulic Cylinder

Brand: Cat

Will it fit or looking for a repair?Add your equipment to see if this part fits or if there are repair options available.

Check Price

Warranty Information

Return Policy

Description

Description:
Cat wear rings guide hydraulic pistons, or rods, to maintain alignment and to stop metal to metal contact, which reduces wear and keeps an even pressure distribution on the seals.

Attributes:
• Material: Nylon type 6
• 30° angle cut
• Fits 63.5 mm diameter rod
• Thickness: 1.5 mm

Application:
Used as needed to service hydraulic cylinder components to keep your equipment leak free. Consult your owner's manual or contact your local Cat Dealer for more information.
