315-9865: 90° 标准弯头

描述

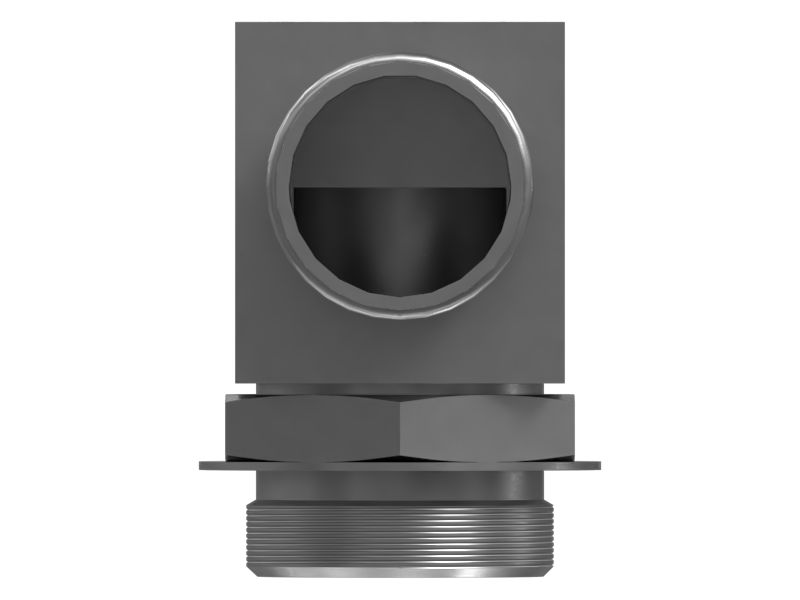

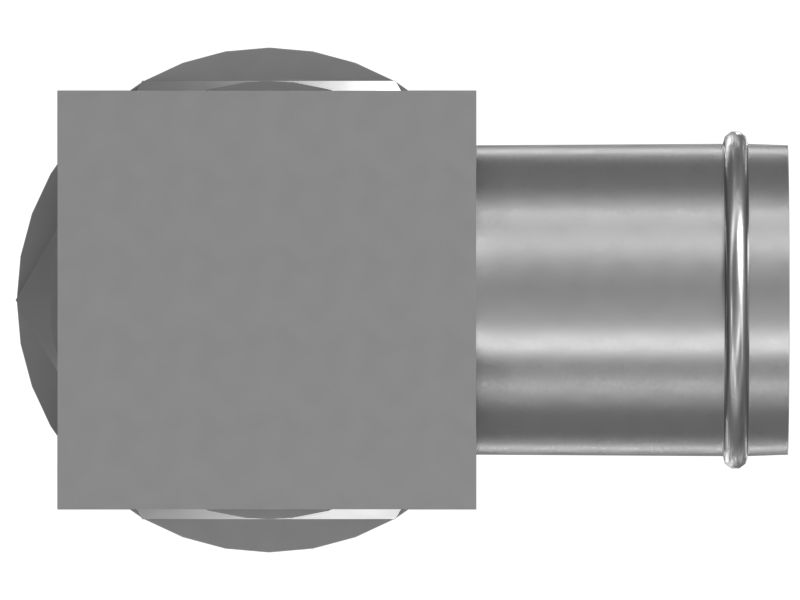

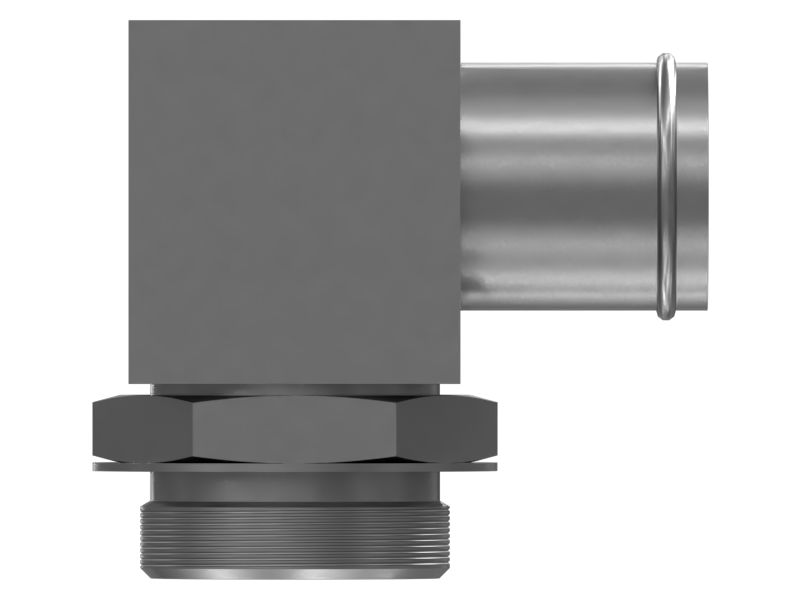

The STOR to Hose Bead 90-Degree Elbow is an intricately designed fitting that plays a pivotal role in hydraulic systems, particularly in coolant lines and oil cooler applications. This specialized elbow is engineered to provide a seamless connection between Straight Thread O-Ring (STOR) fittings and hose beads at a precise and secure 90-degree angle. One side of the elbow features a 1-7/8-12 type thread, allowing for compatibility with various threading standards, while the inclusion of a hex nut ensures secure fastening and ease of installation. Crafted with meticulous attention to detail, this elbow facilitates the effective flow of fluids within hydraulic systems, optimizing performance and maintaining consistent temperature regulation. Its sturdy construction and efficient design ensure reliable performance even in demanding environments.

Attributes:
• Connects STOR fittings to hose beads at a 90-degree angle
• Compatible with 38.1mm nominal inner diameter hose
• One side features a 1-7/8-12 type thread for compatibility
• Includes a hex nut for secure fastening
• Facilitates efficient fluid flow within hydraulic systems
• Precision-engineered for reliability and consistent temperature regulation
• Sturdy construction for durability in demanding environments
• Ensures secure and effective fluid connections

Applications:
This STOR to Hose Bead 90-degree Elbow is used to create a secure and efficient 90-degree connection between Straight Thread O-Ring (STOR) fittings and hose beads in coolant lines and oil cooler applications, enhancing the fluid flow and system reliability.
