Viewing 1 - 16 of 1200
Cat® 7/16'' Thread Fluid Sampling Valve with STOR Sealing
Cat
Material Description
Brass
Material
Alloy Steel,Alloy Brass,Alloy Zinc
Overall Length (in)
1.49
Hex Size (in)
0.63
Cat Permanent Coupling JIC – Straight Female Swivel
Cat
Connector
Permanent
Material
STEEL,Medium Pressure Hose,Alloy Zinc,Carbon Steel,High Pressure Hose
Coating
Zinc Plated
Shape
Straight
Connector Type
-6 JIC FEMALE SWIVEL
Thread Size (in)
9/16-18
Length (in)
1.93
Recommended Hose Size (in)
0.37
Compatible With
SAE 100R1, SAE 100R5, SAE 100R2, SAE 100R16, SAE J1402, COOLANT HOSE
Hex Size (in)
0.69
Description
Permanent Coupling 6MN
Applications
Permanent Coupling for use with hydraulic hose. For additional information contact your CAT local dealer
Hose ID (in)
0.375
Hose Coupling Class
MN
Connection Standard
37 deg Flare-SAE J514
Connection Nominal Size
6
Cat® XN Spiral Permanent Coupling ORFS – Straight Female Swivel
Cat
Connector
Permanent
Material
STEEL,Carbon Steel,Alloy Zinc
Coating
Zinc Plated
Shape
Straight
Connector Type
-6 ORFS FEMALE SWIVEL
Thread Size (in)
11/16-16
Length (in)
2.44
Recommended Hose Size (in)
0.37
Compatible With
SAE 100R12, SAE 100R15
Hex Size (in)
0.81
Seal Type
Nbr 6v-8397, Fkm 228-7089
Description
Permanent Coupling 6XN
Applications
Permanent Coupling for use with hydraulic hose. For additional information contact your CAT local dealer
Cat® XN Spiral Permanent Coupling ORFS – 90 Degree Female Swivel
Cat
Connector
Permanent
Material
STEEL,Alloy Zinc,Carbon Steel
Coating
Zinc Plated
Shape
90 Deg
Connector Type
-12 ORFS FEMALE SWIVEL
Thread Size (in)
1 3/16-12
Length (in)
4.41
Recommended Hose Size (in)
0.75
Compatible With
SAE 100R12, SAE 100R13, SAE 100R15
Hex Size (in)
1.37
Seal Type
Nbr 6v-9746, Fkm 228-7092
Description
Permanent Coupling 12XN
Applications
Permanent Coupling for use with hydraulic hose. For additional information contact your CAT local dealer

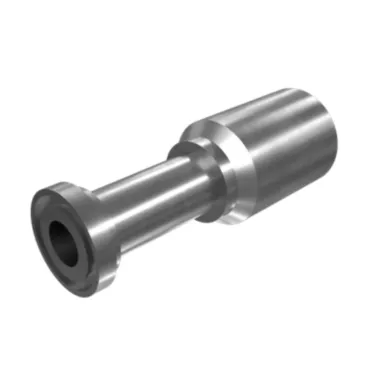

Cat® XN Spiral Permanent Coupling CAT FLANGE - Straight
Cat
Connector
Permanent
Material
STEEL,Alloy Zinc
Coating
Zinc Plated
Shape
Straight
Connector Type
-16 CAT FLANGE
Length (in)
6.1
Recommended Hose Size (in)
1.0
Compatible With
SAE 100R12, SAE 100R13, SAE 100R15
Seal Type
Nbr 1p-3703, Fkm 235-2474
Description
Permanent Coupling 16XN
Applications
Permanent Coupling for use with hydraulic hose. For additional information contact your CAT local dealer
Cat® XN Spiral Permanent Coupling ORFS – Straight Female Swivel
Cat
Connector
Permanent
Material
STEEL,Alloy Zinc
Coating
Zinc Plated
Shape
Straight
Connector Type
-10 ORFS FEMALE SWIVEL
Thread Size (in)
1-14
Length (in)
3.86
Recommended Hose Size (in)
0.63
Compatible With
SAE 100R12, SAE 100R15
Hex Size (in)
1.13
Seal Type
Nbr 7j-9108, Fkm 228-7091
Description
Permanent Coupling 10XN
Applications
Permanent Coupling for use with hydraulic hose. For additional information contact your CAT local dealer
Cat Permanent Coupling ORFS – 90 Degree Female Swivel
Cat
Connector
Permanent
Material
STEEL,Alloy Zinc,Carbon Steel,Medium Pressure Hose,High Pressure Hose
Coating
Zinc Plated
Shape
90 Deg
Connector Type
-6 ORFS FEMALE SWIVEL
Thread Size (in)
11/16-16
Length (in)
2.44
Recommended Hose Size (in)
0.37
Compatible With
SAE 100R1, SAE 100R5, SAE 100R2, SAE 100R16, SAE J1402, COOLANT HOSE
Hex Size (in)
0.81
Seal Type
Nbr 6v-8397, Fkm 228-7089
Description
Permanent Coupling 6MN
Applications
Permanent Coupling for use with hydraulic hose. For additional information contact your CAT local dealer
Hose ID (in)
0.375
Hose Coupling Class
MN
Connection Standard
ORFS-SAE J1453
Connection Nominal Size
6
Bend Angle (Angle Degrees)
90
Cat® Self Sealing Refrigerant Coupling For Air Conditioner Line
Cat
Material
Carbon Steel
Cat® XN Spiral Permanent Coupling CAT FLANGE – 90 Degree
Cat
Connector
Permanent
Material
STEEL,Alloy Zinc
Coating
Zinc Plated
Shape
90 Deg
Connector Type
-16 CAT FLANGE
Length (in)
5.51
Recommended Hose Size (in)
1.0
Compatible With
SAE 100R12, SAE 100R13, SAE 100R15
Seal Type
Nbr 1p-3703, Fkm 235-2474
Description
Permanent Coupling 16XN
Applications
Permanent Coupling for use with hydraulic hose. For additional information contact your CAT local dealer
Cat® Refrigerant Coupling For Air Conditioner Line
Cat
Material
Carbon Steel
Cat® XN Spiral Permanent Coupling JIC – Straight Female Swivel
Cat
Connector
Permanent
Material
STEEL,Alloy Zinc,Carbon Steel
Coating
Zinc Plated
Shape
Straight
Connector Type
-12 JIC FEMALE SWIVEL
Thread Size (in)
1 1/16-12
Length (in)
3.74
Recommended Hose Size (in)
0.75
Compatible With
SAE 100R12, SAE 100R13, SAE 100R15
Hex Size (in)
1.26
Description
Permanent Coupling 12XN
Applications
Permanent Coupling for use with hydraulic hose. For additional information contact your CAT local dealer

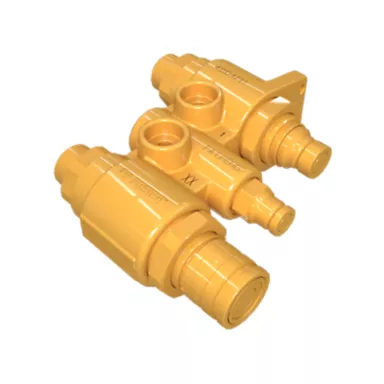

Cat® Coupling Group (Auxiliary Lines Group)
Cat
Working Pressure (kPa)
35,000.0
Type
Straight
Overall Length (in)
7.4
Thread
5/16-18
Overall Height (in)
7.6
Overall Width (in)
2.4
Operating Temperature
-25°C to +100°C
Weight (lb)
9.6
Material Description
Plated Cast Iron
Hex Size (in)
1.97
Connector Type
ORFS to Quick Disconnect (2X); STOR to Quick Disconnect
Material
Gray (Flake) Iron,Alloy Zinc
Cat Permanent Coupling ORFS – Straight Female Swivel
Cat
Connector
Permanent
Material
STEEL,Medium Pressure Hose,High Pressure Hose,Alloy Zinc,Carbon Steel
Coating
Zinc Plated
Shape
Straight
Connector Type
-8 ORFS FEMALE SWIVEL
Thread Size (in)
13/16-16
Length (in)
2.17
Recommended Hose Size (in)
0.37
Compatible With
SAE 100R1, SAE 100R5, SAE 100R2, SAE 100R16, SAE J1402, COOLANT HOSE, SAE 100R19
Hex Size (in)
0.94
Seal Type
Nbr 4j-5477, Fkm 228-7088
Description
Permanent Coupling 6MN
Applications
Permanent Coupling for use with hydraulic hose. For additional information contact your CAT local dealer
Hose ID (in)
0.375
Hose Coupling Class
MN
Connection Standard
ORFS-SAE J1453
Connection Nominal Size
8
Cat® XN Spiral Permanent Coupling CAT FLANGE - Straight
Cat
Connector
Permanent
Material
STEEL,Alloy Zinc
Coating
Zinc Plated
Shape
Straight
Connector Type
-20 CAT FLANGE
Length (in)
6.42
Recommended Hose Size (in)
1.25
Compatible With
SAE 100R13, SAE 100R15
Seal Type
Nbr 1p-3704, Fkm 235-2475
Description
Permanent Coupling 20XN6
Applications
Permanent Coupling for use with hydraulic hose. For additional information contact your CAT local dealer
Cat® XT Spiral Permanent Coupling - Straight Code 61
Cat
Connector
Permanent
Material
STEEL,Alloy Zinc
Coating
Zinc Plated
Shape
Straight
Connector Type
-16 CODE 61 FLANGE
Length (in)
5.98
Recommended Hose Size (in)
1.0
Compatible With
SAE 100R12
Seal Type
Nbr 4j-0520, Fkm 291-8219
Description
Permanent Coupling -16 XT5ES
Applications
Permanent Coupling for use with hydraulic hose. For additional information contact your CAT local dealer

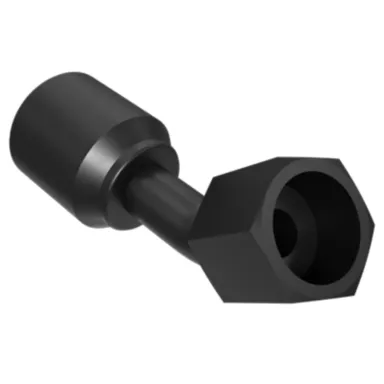

Cat Permanent Coupling ORFS – 45 Degree Female Swivel
Cat
Connector
Permanent
Material
STEEL,High Pressure Hose,Alloy Zinc,Medium Pressure Hose,Carbon Steel
Coating
Zinc Plated
Shape
45 Deg
Connector Type
-8 ORFS FEMALE SWIVEL
Thread Size (in)
13/16-16
Length (in)
2.91
Recommended Hose Size (in)
0.5
Compatible With
SAE 100R1, SAE 100R5, SAE 100R2, SAE 100R16, SAE J1402, COOLANT HOSE, SAE 100R19
Hex Size (in)
0.94
Seal Type
Nbr 4j-5477, Fkm 228-7088
Description
Permanent Coupling 8MN
Applications
Permanent Coupling for use with hydraulic hose. For additional information contact your CAT local dealer
Hose ID (in)
0.5
Hose Coupling Class
MN
Connection Standard
ORFS-SAE J1453
Connection Nominal Size
8
Bend Angle (Angle Degrees)
45
