Tube Assemblies
Tube Assemblies
604-2388: Water Pump Pipe
Cat® Water Pump Pipe For Engine
Cat
Weight (lb)
0.07
Material
Alloy Zinc,Plastic Plastic,Polyamide Plastic,Corrosion Preventative Fluid,Carbon Steel
476-3252: Fuel Rail Line
Cat® 44.45mm Outer Diameter Fuel Rail Line for the fuel system
Cat
Material
Carbon Steel
568-7416: Standard Exhaust Pipe
Cat® 127mm Diameter Standard Exhaust Pipe
Cat
Overall Length (in)
4.89
Diameter (in)
5.01
Material
Alloy Steel,Stainless Steel
626-3634: Hpl Lines Assembly
Cat® High-Pressure Lines for the exhaust gas recirculation system connect the cylinder head to the cooler to facilitate the recirculation of exhaust gases
Cat
Material
Stainless Steel,Corrosion Preventative Fluid
550-3654: 7.74mm Inner Diameter Fuel Tube
Cat® 7.74mm Inner Diameter Fuel Tube with 37° Single Flare used for Fuel Lines in Cylinder Head
Cat
Inner Diameter (in)
0.3
Outer Diameter (in)
0.37
Thickness (in)
0.04
Weight (lb)
0.51
Material
Carbon Steel
561-8551: Fuel Injection Line
A Fuel Injection Line transports fuel at high pressure from the pump to injectors, ensuring efficient combustion and optimal engine performance.
Cat
Material
Alloy Copper,Carbon Steel
568-7435: Muffler Exhaust Pipe
Cat® 448mm Long Muffler Exhaust Pipe
Cat
Overall Length (in)
17.64
Diameter (in)
5.75
Material
Alloy Steel,Stainless Steel
523-5939: Exhaust Tube Assembly
Cat® Exhaust Stainless Steel Tube Assembly with Band Clamp to Connect Catalytic Converter with Turbocharger Tube
Cat
Material
Stainless Steel

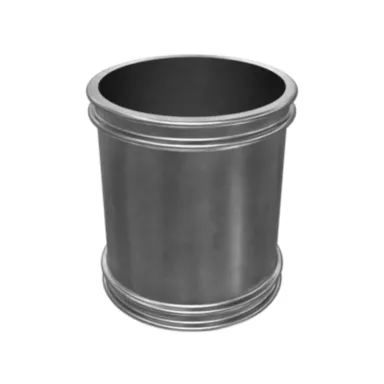

8N-7641: 85.6mm Inner Diameter Tube
Cat® 85.6mm Inner Diameter Tube
Cat
Connector Type
Double Upset O-ring Groove
Length (in)
4.41
Material
Steel,Carbon Steel
Outer Diameter (in)
3.5
519-3671: Cylinder Fuel Line
Cat® Engine Fuel Line used in Cylinder 2 and 4
Cat
Material Description
Steel Tubes
Weight (lb)
0.99
Material
Corrosion Preventative Fluid
635-7326: 12.58mm ID Fuel Lines Tube
Cat® Fuel Lines Tube efficiently transports fuel from the tank to the engine, ensuring consistent and reliable fuel delivery
Cat
Inner Diameter (in)
0.5
Outer Diameter (in)
0.63
Weight (lb)
2.02
Working Pressure (kPa)
1,000.0
Material
Alloy Mixed: Metal,Carbon Steel
482-8342: Muffler Group Pipe Assembly
Cat® Muffler Group Pipe Assembly, Steel
Cat
Material
Steel,Carbon Steel

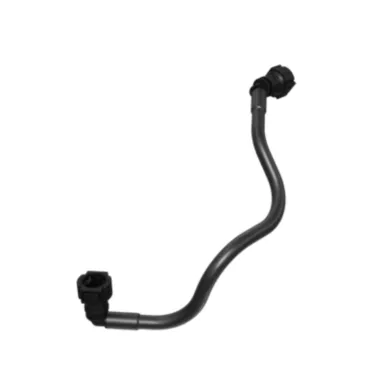

397-8294: Fuel Line Assembly
Fuel Line Assembly
Cat
Connector Type
Straight Fuel Line Connector
Hose Size, ID Min. (in)
0.31
Length (in)
Not specified
Material
Nylon,Plastic Plastic,Corrosion Preventative Fluid
Type
Fuel Line
436-5316: 196.5mm Internal Diameter Steel Muffler Pipe
Cat® 196.5mm Inner Diameter Muffler Pipe
Cat
Material
Carbon Steel
221-2105: 131.4mm Outer Diameter Exhaust Tube
Cat® 131.4mm Outer Diameter Exhaust Tube For Dust Ejector
Cat
Connector Type
Straight (both ends)
Outer Diameter (in)
5.17
Flange Type
Not specified
Weight (lb)
15.45
Material
Steel,Alloy Steel,Carbon Steel
263-5702: Purifier Exhaust Elbow
Cat® Purifier Exhaust Elbow connecting Diesel Particulate Filter and Turbocharger
Cat
Material
Alloy Mixed: Metal
