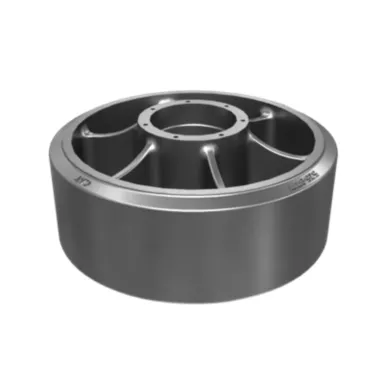

526-9717: 300mm Outer Diameter Bogie Wheel
Cat® Wheel As-Bogie
Cat
Material
Natural Rubber (NR) Rubber
Rubber Belt Component Type
Wheel
632-2943: Track Center Guide
Cat® Guide As-Center Roller Guard Short Center, Center Position, Right And Left Side of Frame
Cat
Guard Type
Roller Guard Short Center
Track Frame Side
Right And Left
Material
Alloy Steel
Guard Position
Center
UC System
ABRASION

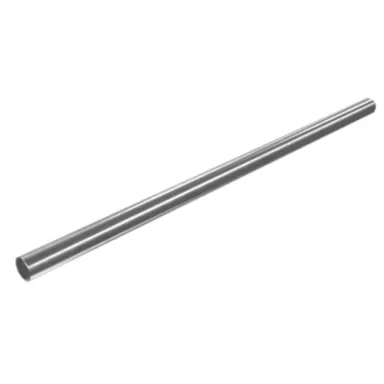

446-8014: 20mm Diameter Track Guide Rod
Cat® 20mm Diameter Steel Track Guide Rod used to Provide Accurate Alignment and Support by Maintaining Proper Tension in The Track
Cat
Material
Low Alloy Steel,Alloy Zinc

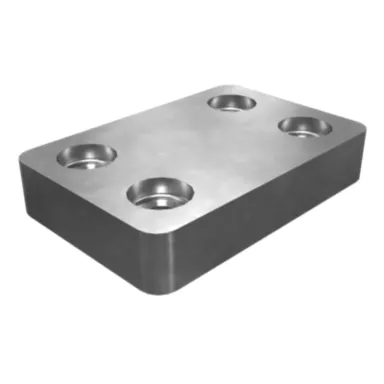

596-0403: 150mm Long Front Bogie Pad
Cat® 150mm Long Plastic Pad for Asphalt Pavers Bogie used in steering system for wear resist optimal operation
Cat
Material
Polyethylene Plastic
5A-8378: Track Roller Frame Lug
Cat® Track Roller Frame Lug supports alignment and structural connection of undercarriage track roller frames
Cat
Weight (lb)
0.2
Width (in)
1.0
Height (in)
1.0
Length (in)
1.38
Internal Thread
1/2"-13-2B
Material
Structural Steel,Steel
617-1619: Track Guide Guard
Cat® Track Guide Guard shields the track, preventing debris and contaminants from interfering with the smooth movement of the tracked mechanism
Cat
Material
Alloy Steel
617-1620: Track Guide Guard
Cat® Track Guide Guard shields the track, preventing debris and contaminants from interfering with the smooth movement of the tracked mechanism
Cat
Material
Alloy Steel
635-5240: Track Link Abrasion Guide
Cat® Guide-Abrasion Roller Guard Short Center, Both Sides Position, Both Sides Side of Frame
Cat
Guard Type
Roller Guard Short Center
Track Frame Side
Both Sides
Material
Boron Steel
Guard Position
Both Sides
UC System
ABRASION
644-1915: Right Hand Side Track Pin End Link
Cat® Track Link 317.5mm Track Pitch, PPR, 3 Tooth Master
Cat
Bore To Rail (in)
4.449
Track Link Crown Height (in)
0
Material
Alloy Steel
Pin Retention System
Ppr
UC System
GD,HDXL,HD
Steel Spec
1E4146
Pin End Strap Thickness (in)
2.264
Bushing End Strap Thickness (in)
1.732
Bolt Hole Diameter (in)
1.614
Track Pin Bore Diameter (in)
2.613
Pin End Boss Thickness (in)
-0.1
Master Link Type
3 Tooth Master
Track Pitch (in)
12.5
Rail To Pin Boss OD (in)
2.48
Overall Height (in)
7.874
Wear Sensor
No
Master Bolt Thread
M39

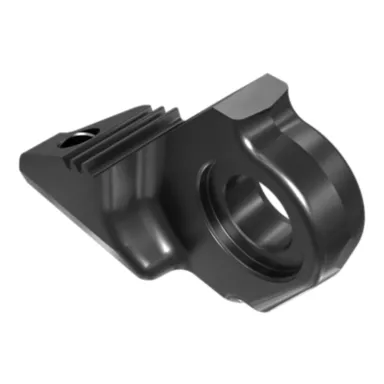

644-1916: Left Hand Side Track Pin End Link
Cat® Track Link 317.5mm Track Pitch, PPR, 3 Tooth Master
Cat
Bore To Rail (in)
4.449
Track Link Crown Height (in)
0
Material
Alloy Steel
Pin Retention System
Ppr
UC System
HDXL,GD,HD
Steel Spec
1E4146
Pin End Strap Thickness (in)
2.264
Bushing End Strap Thickness (in)
1.732
Bolt Hole Diameter (in)
1.614
Track Pin Bore Diameter (in)
2.613
Pin End Boss Thickness (in)
-0.1
Master Link Type
3 Tooth Master
Track Pitch (in)
12.5
Rail To Pin Boss OD (in)
2.48
Overall Height (in)
7.874
Wear Sensor
No
Master Bolt Thread
M39
644-1917: Right Hand Side Track Bushing End Link
Cat® Track Link 317.5mm Track Pitch, PPR, 3 Tooth Master
Cat
Bore To Rail (in)
4.449
Track Link Crown Height (in)
0
Material
Alloy Steel
Pin Retention System
Ppr
Track Pitch (in)
12.5
Eyebrow Thickness (in)
1.102
UC System
HDXL,HD,GD
Steel Spec
1E4146
Bushing End Strap Thickness (in)
1.732
Overall Height (in)
7.913
Bolt Hole Diameter (in)
1.614
Wear Sensor
No
Master Bolt Thread
M39
Master Link Type
3 Tooth Master
Bushing Bore Diameter (in)
4.176
644-1918: Left Hand Side Track Bushing End Link
Cat® Track Link 317.5mm Track Pitch, PPR, 3 Tooth Master
Cat
Bore To Rail (in)
4.449
Track Link Crown Height (in)
0
Material
Alloy Steel
Pin Retention System
Ppr
Track Pitch (in)
12.5
Eyebrow Thickness (in)
1.102
UC System
HDXL,HD,GD
Steel Spec
1E4146
Bushing End Strap Thickness (in)
1.732
Overall Height (in)
7.913
Bolt Hole Diameter (in)
1.614
Wear Sensor
No
Master Bolt Thread
M39
Bushing Bore Diameter (in)
4.176
Master Link Type
3 Tooth Master
This part is designed to fit your Cat equipment based on the manufacturer’s specifications.
Any changes to the manufacturer’s configuration might result in the product not fitting your Cat equipment. Please consult your Cat Dealer before purchasing to ensure that this part is appropriate for your Cat equipment in its current condition and assumed configuration. This indicator cannot guarantee compatibility for all parts.
