222-1097: Bucket Adapter

Home

Ground Engaging Tools

Bucket Teeth & Adapter Systems

Adapters

Cat® Bolt-On K90 Bolt-On Two Strap Adapter

Brand: Cat

Product Images

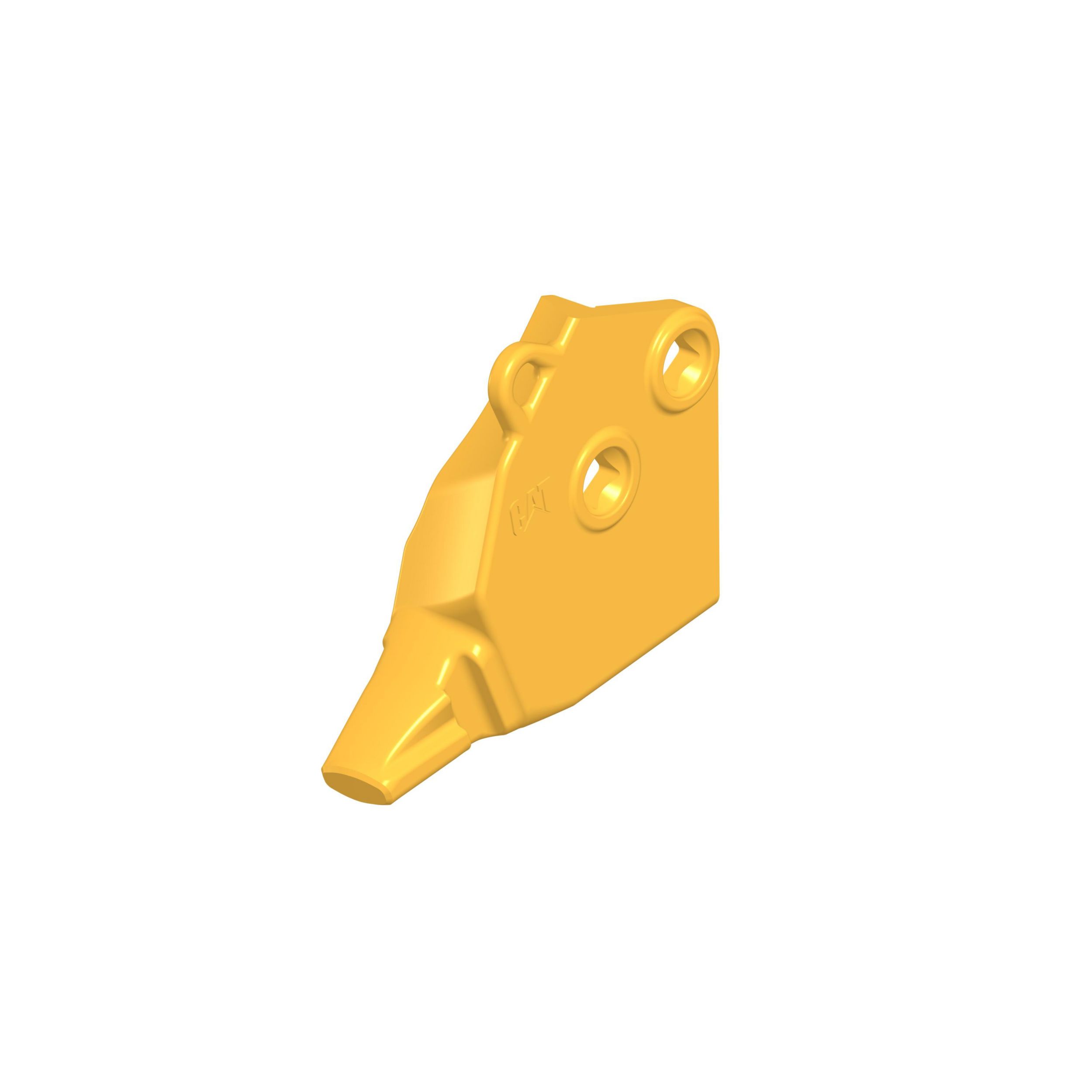

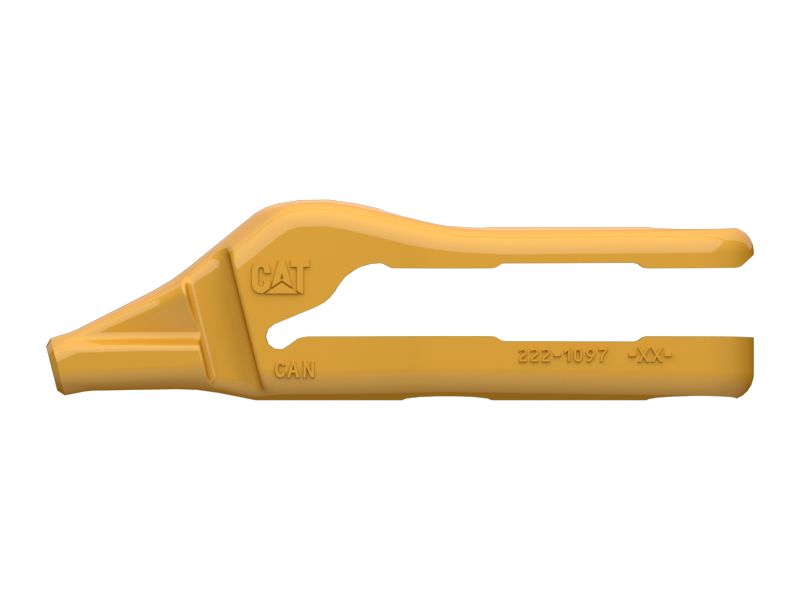

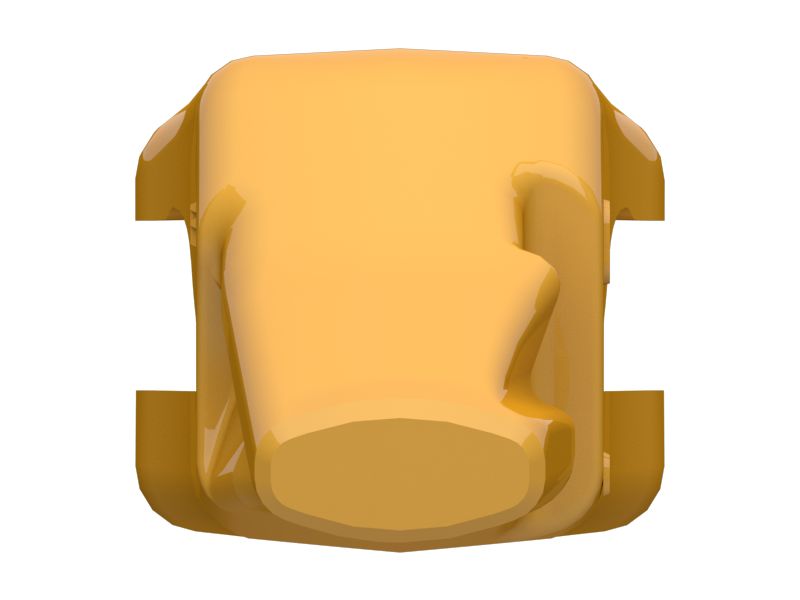

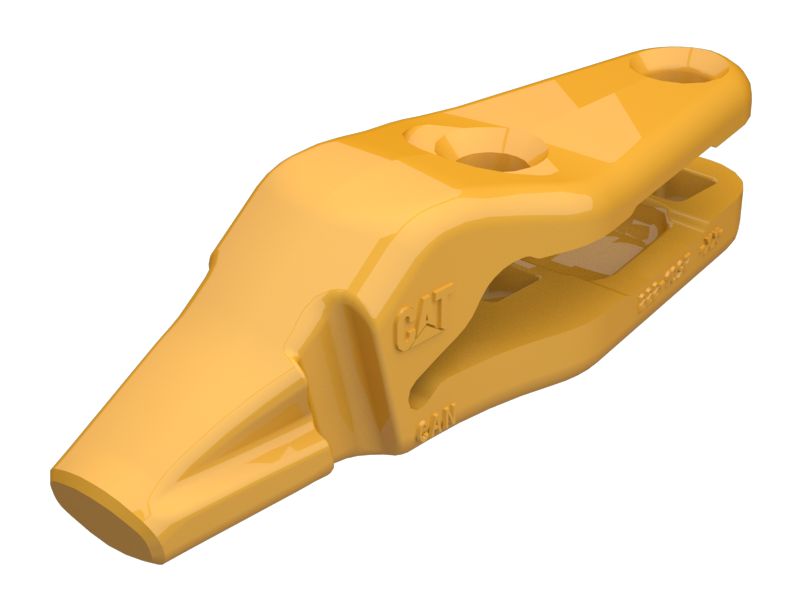

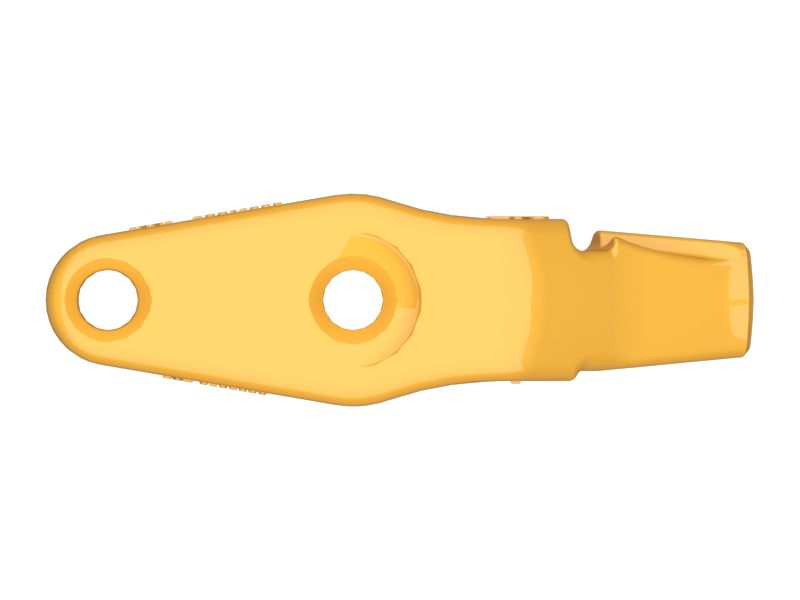

222-1097: Bucket Adapter

Cat® Bolt-On K90 Bolt-On Two Strap Adapter

Brand: Cat

Will it fit or looking for a repair?Add your equipment to see if this part fits or if there are repair options available.

Check Price

Warranty Information

Return Policy

Description

Offering unparalleled manufacturing precision, Cat® K Series adapters protect the buckets of your machines from damage. Our Ground Engaging Tools (G.E.T) are designed specifically for the DNA of your Cat iron and deliver consistent, superior protection.

CatÂ® Two-Strap Adapters feature a lower profile than the flush-mount adapter, allowing for more penetration and higher productivity.

Cast from steel with properties that maintain hardness for long wear life, our durable adapters make it possible for your machines to deliver the performance you demand. Protect your investment by always choosing genuine Cat Ground Engaging Tools.

Attributes:
•:K90 Center Bolt-on Adapter to fit a 40 mm edge with a 22.5 degree bevel angle

Applications:
• Wheel Loader Buckets

Warning:This product can expose you to chemicals including Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

Specifications

Position:

Center

Type:

Bolt-On Two Strap

Abrasion Resistant Material:

Standard Option

Adapter Size:

K90

Bevel Angle:

22.5

Wear or Durability:

Standard

Overall Length (in):

16.929

Hole Quantity:

Corner Kickout Angle:

Size:

K90

Hole Size:

1-1/4-in Plow Bolt (36.5 mm square)

Width (mm):

130

Bottom Strap Length (mm):

292

Attachment Method:

Bolt-On

Attachment:

Bolt-On

Hole Spacing (mm):

150

Bottom Strap Length (in):

11.496

Base Edge Thickness Class:

Series:

K Series

Overall Length (mm):

430

Machine:

Loader

Width (in):

5.118

Compatible Models

Track Loader

Warranty Information

Return Policy

Parts diagram for 222-1097

Frequently bought together

222-1097

220-9090

229-7099

View All Parts

Frequently bought together

222-1097: Bucket Adapter

220-9090: K Series Tip Retainer

229-7099: Bucket Adapter

229-7098: Bucket Adapter

100-6666: Cutting Edge Segment

475-5480: Bucket Tip

Diagram

Description

Specifications

Compatible Models

Parts diagram for 222-1097

Description for part number 222-1097

Specifications for part number 222-1097

Units of Measure

Metric

Position:

Center

Type:

Bolt-On Two Strap

Abrasion Resistant Material:

Standard Option

Adapter Size:

K90

Bevel Angle:

22.5

Wear or Durability:

Standard

Overall Length (in):

16.929

Hole Quantity:

Corner Kickout Angle:

Size:

K90

Hole Size:

1-1/4-in Plow Bolt (36.5 mm square)

Width (mm):

130

Bottom Strap Length (mm):

292

Attachment Method:

Bolt-On

Attachment:

Bolt-On

Hole Spacing (mm):

150

Bottom Strap Length (in):

11.496

Base Edge Thickness Class:

Series:

K Series

Overall Length (mm):

430

Machine:

Loader

Width (in):

5.118

Compatible Models for part number 222-1097

TRACK LOADER

963D 973C 973D 963C 973K 973

TRACK-TYPE LOADER

973

WHEEL LOADER

988H 966H 972G II 972M XE 962H 966L 966K 950H 966M 972H 972K 966G II 972M 972L 966K XE 966M XE
