Cat® Carrier Roller Group Cantilever, Standard Application, 182mm Tread Diameter

Brand: Cat

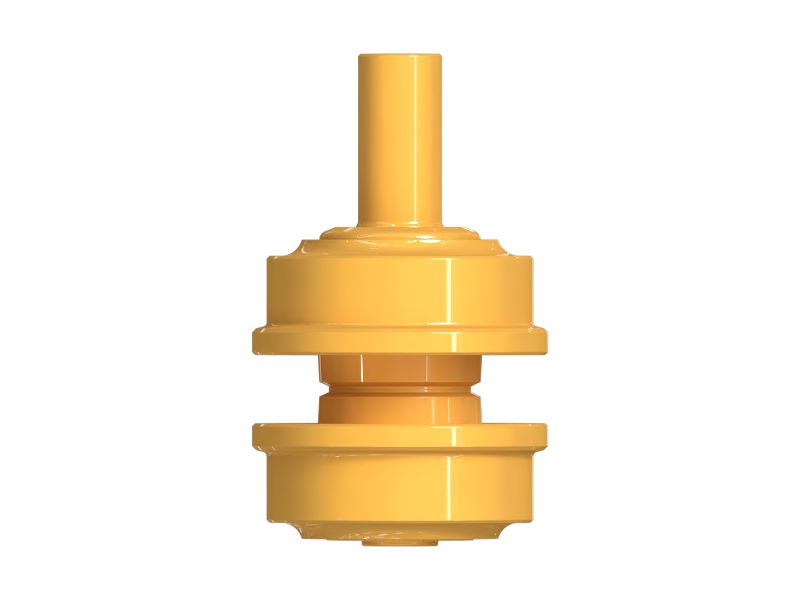

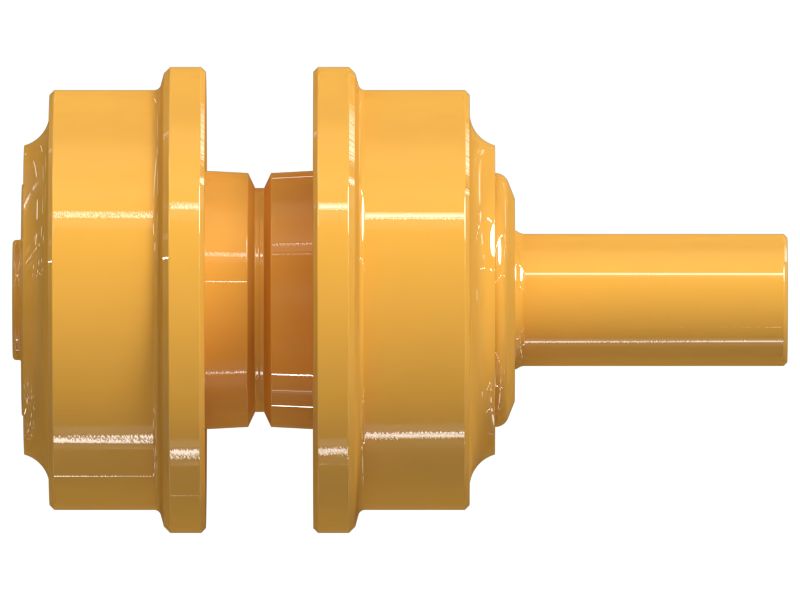

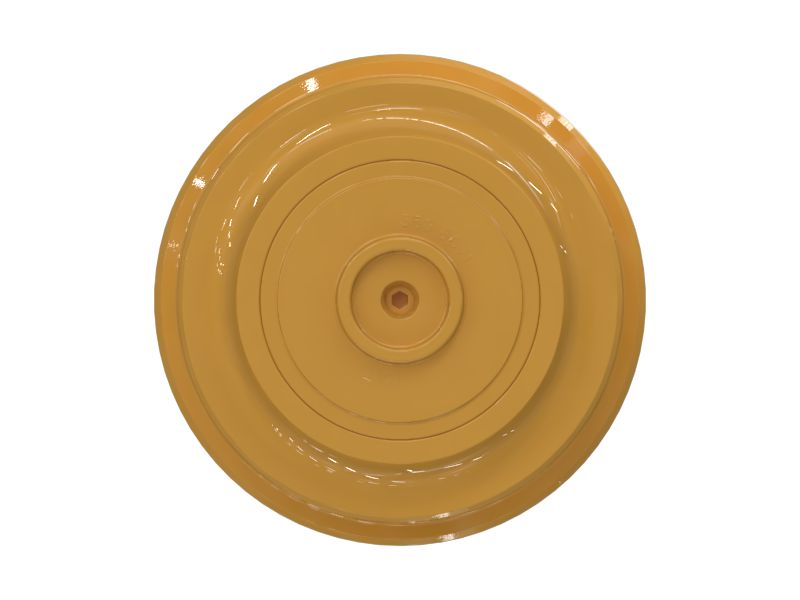

Product Images

229-5446: Carrier Roller Group

Cat® Carrier Roller Group Cantilever, Standard Application, 182mm Tread Diameter

Brand: Cat

Will It Fit?

Add your equipment to see if this part fits or if there are repair options available.

Add Equipment

Will it fit or looking for a repair?Add your equipment to see if this part fits or if there are repair options available.

Check Price

Description

Description:

Carrier rollers support and guide the machine on the track and provide track tension support.

Attributes:

SystemOne™ Track is designed to operate at higher speeds and greater loads and components wear at a balanced rate. The result is maximum performance at the lowest possible operating cost.

Warning:This product can expose you to chemicals including Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

Specifications

Outside Spread (mm):

204

Diameter (mm):

202

Application:

Standard Application

Flange Diameter (mm):

202

Material:

Sealants / Adhesives Adhesive

UC System:

ABRASION

Outside Spread (in):

8.031

Undercarriage Width (mm):

295

Inside Spread (in):

1.843

Mount Type:

Cantilever

Tread OD (in):

7.165

Bolt Size (mm):

M10

Flange Diameter (in):

Tread OD (mm):

182

Inside Spread (mm):

46.8

Tread Diameter (in):

7.2

Flange Type:

Single Flange

Shaft Mounting Length (in):

4.654

Tread Diameter (mm):

182

Bolt Size (in):

0.3937

Shaft Mounting Length (mm):

118.2

Shaft Diameter (mm):

57.1

Shaft OD (mm):

Shaft OD (in):

2.48

Flange OD (in):

7.953

Flange OD (mm):

202

Compatible Models

Track-Type Tractor

Warranty Information

Return Policy

Parts diagram for 229-5446

Frequently bought together

229-5446

6I-8077

310-4912

View All Parts

Frequently bought together

229-5446: Carrier Roller Group

6I-8077: 5 Teeth Boron Steel Sprocket Segment

310-4912: Single Flange Track Roller

223-9110: Track Roller Cap

417-3770: Single Flange Track Roller

416-7050: Double Flange Track Roller

Diagram

Description

Specifications

Compatible Models

Parts diagram for 229-5446

Description for part number 229-5446

Description:

Carrier rollers support and guide the machine on the track and provide track tension support.

Attributes:

SystemOne™ Track is designed to operate at higher speeds and greater loads and components wear at a balanced rate. The result is maximum performance at the lowest possible operating cost.

Specifications for part number 229-5446

Units of Measure

Metric

Outside Spread (mm):

204

Diameter (mm):

202

Application:

Standard Application

Flange Diameter (mm):

202

Material:

Sealants / Adhesives Adhesive

UC System:

ABRASION

Outside Spread (in):

8.031

Undercarriage Width (mm):

295

Inside Spread (in):

1.843

Mount Type:

Cantilever

Tread OD (in):

7.165

Bolt Size (mm):

M10

Flange Diameter (in):

Tread OD (mm):

182

Inside Spread (mm):

46.8

Tread Diameter (in):

7.2

Flange Type:

Single Flange

Shaft Mounting Length (in):

4.654

Tread Diameter (mm):

182

Bolt Size (in):

0.3937

Shaft Mounting Length (mm):

118.2

Shaft Diameter (mm):

57.1

Shaft OD (mm):

Shaft OD (in):

2.48

Flange OD (in):

7.953

Flange OD (mm):

202

Compatible Models for part number 229-5446

TRACK-TYPE TRACTOR

D5R XL D6M D6N D5H D5R2 D6N OEM D5R LGP D6N LGP D5H XL D5 D6N XL

TRACK LOADER

953C 953D 953K 953
