6I-8077: Track Segment

Cat® Track Segment Plain Steel, 5 Bolts, 5 Teeth, 190mm Track Pitch

Brand: Cat

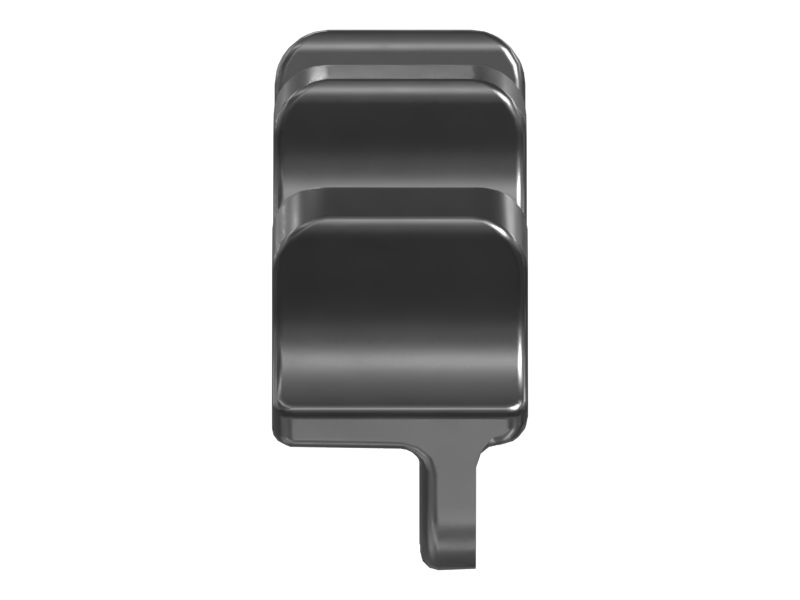

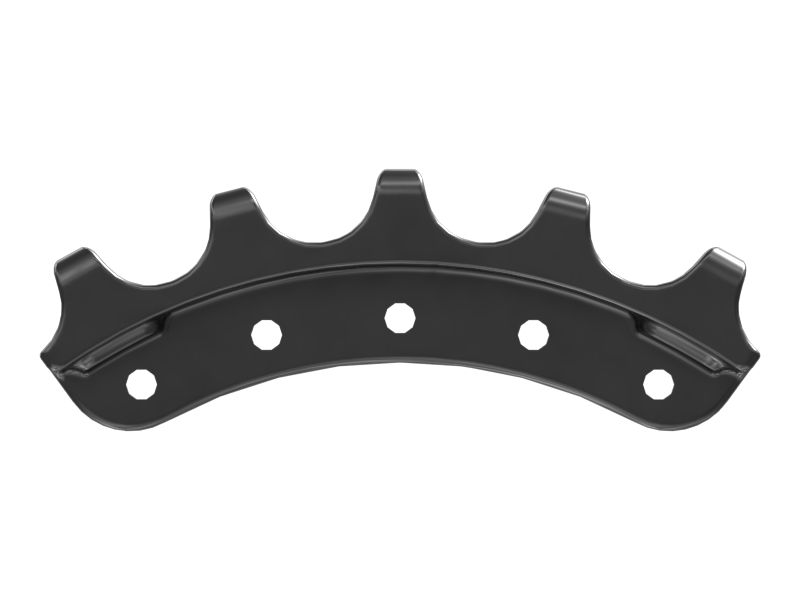

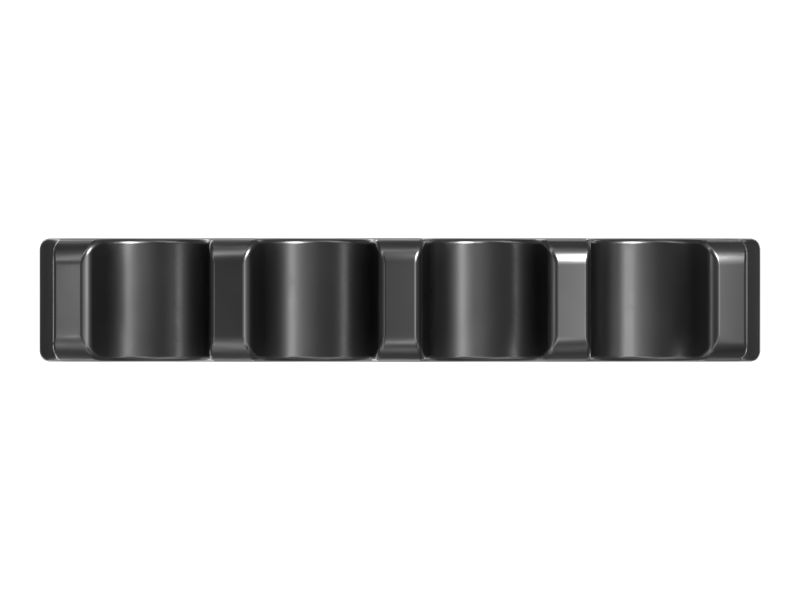

Product Images

6I-8077: Track Segment

Cat® Track Segment Plain Steel, 5 Bolts, 5 Teeth, 190mm Track Pitch

Brand: Cat

Will it fit or looking for a repair?Add your equipment to see if this part fits or if there are repair options available.

Check Price

Warranty Information

Return Policy

Frequently bought together

6I-8077

229-5446

310-4912

View All Parts

Frequently bought together

6I-8077: Track Segment

229-5446: Carrier Roller Group

310-4912: Track Roller Group

318-2375: Track Link

190-1546: Idler Group

310-4915: Track Roller Group

Diagram

Description

Specifications

Compatible Models

Parts diagram for 6I-8077

Specifications for part number 6I-8077

Units of Measure

Metric

Pitch (mm):

190

Number of Bolts:

Tip Radius (in):

15.236

Pitch Circle Radius (mm):

382

Material:

Boron Steel

Pitch Circle Radius (in):

15.039

Bushing Radius (in):

1.28

UC System:

GD,ABRASION,HDXL

Relieved:

Tooth Width (in):

2.717

Number of Sprocket Segments:

Packing Offset Radius (in):

15.236

Material Type:

Plain Steel

Packing Offset Radius (mm):

387

Bolt Circle Radius (in):

11.929

Pitch (in):

7.48

Bolt Size (mm):

17.8

Number of Sprocket Bolts:

Back Lash (in):

0.079

Track Pitch (mm):

190

Bolt Size (in):

17.8

Bolt Circle Radius (mm):

303

Sound Segment:

Back Lash (mm):

Sprocket Mounting Type:

Offset

Pocket Angle (degrees):

Number of Sprocket Teeth:

Inner Radius (mm):

278

Number of Teeth:

Bolt Thread Size:

0.625

Tooth Width (mm):

Inner Radius (in):

10.945

Bushing Radius (mm):

32.5

Tip Radius (mm):

387

Compatible Models for part number 6I-8077

TRACK-TYPE TRACTOR

D5R LGP D5R XL D6N LGP D6M D6N D5 D5R2 D6N OEM D6N XL

Compare Alternate Parts

6I-8077: Track Segment

Tip Radius (in)

15.236

Pitch Circle Radius (in)

15.039

Bushing Radius (in)

1.28

Description

Cat® Track Segment Plain Steel, 5 Bolts, 5 Teeth, 190mm Track Pitch

326-4763: Track Segment

Tip Radius (in)

15.236

Pitch Circle Radius (in)

15.039

Bushing Radius (in)

1.28

Description

Cat® Track Segment Plain Steel, 5 Bolts, 5 Teeth, 190mm Track Pitch

605-9149: Track Segment

Hole Size (in)

0.7

Weight (lb)

22.73

Width (in)

3.07

Description

Cat® Track Segment Plain Steel, 5 Bolts, 5 Teeth, 202.81mm Track Pitch

173-0946: Track Segment

Tip Radius (in)

16.26

Pitch Circle Radius (in)

16.054

Bushing Radius (in)

1.433

Description

Cat® Track Segment Tough Steel, 5 Bolts, 5 Teeth, 202.81mm Track Pitch

398-0972: Track Segment

Bolt Size (in)

5/8

Tip Radius (in)

16.26

Pitch Circle Radius (in)

16.054

Description

Cat® Track Segment Plain Steel, 5 Bolts, 5 Teeth, 202.81mm Track Pitch
