438-8593: Hydraulic Cylinder Seal Kit - Standard Size

Cat® Hydraulic Cylinder Seal Kits contain all seals required for a complete reseal standard nominal (Up to 0.25mm Max (0.010 INCH) bore sized hydraulic cylinder

Brand: Cat

Product Images

438-8593: Hydraulic Cylinder Seal Kit - Standard Size

Cat® Hydraulic Cylinder Seal Kits contain all seals required for a complete reseal standard nominal (Up to 0.25mm Max (0.010 INCH) bore sized hydraulic cylinder

Brand: Cat

Will It Fit?

Add your equipment to see if this part fits or if there are repair options available.

Add Equipment

Will it fit or looking for a repair?Add your equipment to see if this part fits or if there are repair options available.

Check Price

Warranty Information

Return Policy

Frequently bought together

438-8593

7J-9694

3D-2824

View All Parts

Frequently bought together

438-8593: Hydraulic Cylinder Seal Kit - Standard Size

7J-9694: Sleeve Bearing (Bushing)

3D-2824: 2.95 x 23.47mm 90A NBR O-Ring

3G-0911: 0.8mm Thick Steel Shim

6E-3326: 160mm Outer Diameter Hydraulic Cylinder Head

9S-4183: Light Duty Stor External Hex Plug

Parts included in this kit

No results available.

8T-0763: 133.35mm Bore Diameter 2-Piece Seal

Quantity: 1

2D-0714: 133.35mm Outer Diameter Plastic Ring

Quantity: 1

421-4025: 76.15mm Inner Diameter U-Cup Seal

Quantity: 1

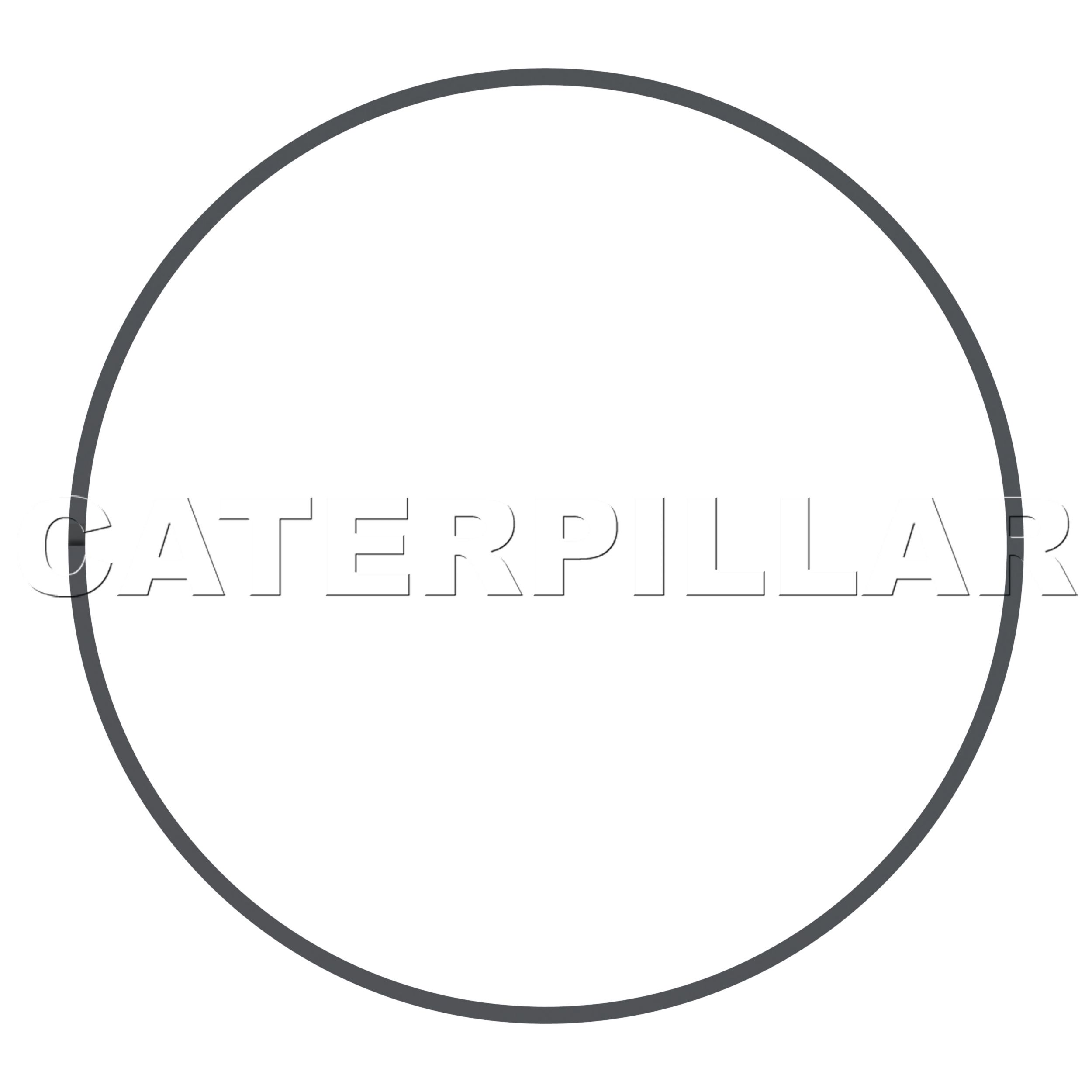

416-0107: 138.9mm OD Hoist Cylinder Backup Ring

Quantity: 1

316-2516: 3.53 x 132.94mm 90A NBR O-Ring

Quantity: 1

312-4247: 73.89mm Inner Diameter Double Lip Wiper Seal

Quantity: 1

312-4248: 76.2mm Rod Diameter Buffer Seal

Quantity: 1

8C-9161: 76.20mm Inside Diameter Plastic Ring

Quantity: 1

Showing 1 to 8 of 8

Description

Specifications

Compatible Models

Specifications for part number 438-8593

We are still working on adding a specification for this part.

Compatible Models for part number 438-8593

INTEGRATED TOOLCARRIER

IT62G

BACKHOE LOADER

446D 446B 446

MOTOR GRADER

24H 24M

Key

Factory Fit

This part is designed to fit your Cat equipment based on the manufacturer’s specifications.

Any changes to the manufacturer’s configuration might result in the product not fitting your Cat equipment. Please consult your Cat Dealer before purchasing to ensure that this part is appropriate for your Cat equipment in its current condition and assumed configuration. This indicator cannot guarantee compatibility for all parts.
