419-5476: Idler Group

Home

Undercarriage

Rolling Components

Idler Groups

Cat® Idler Group Standard Application, 135mm Rim Width, Interchangeable, 555.8mm Tread Diameter, Conventional Tread

Brand: Cat

Product Images

419-5476: Idler Group

Cat® Idler Group Standard Application, 135mm Rim Width, Interchangeable, 555.8mm Tread Diameter, Conventional Tread

Brand: Cat

Will It Fit?

Add your equipment to see if this part fits or if there are repair options available.

Add Equipment

Will it fit or looking for a repair?Add your equipment to see if this part fits or if there are repair options available.

Check Price

Warranty Information

Return Policy

Frequently bought together

419-5476

278-2359

278-2358

View All Parts

Frequently bought together

419-5476: Idler Group

278-2359: Track Segment

278-2358: Track Segment

6K-9880: Carrier Roller Group

347-0406: Track Roller Group

346-8807: Track Roller Group

Diagram

Description

Specifications

Compatible Models

Parts diagram for 419-5476

Specifications for part number 419-5476

Units of Measure

Metric

Application:

Standard Application

Flange Diameter (mm):

590

Idler Rim Width (mm):

135

UC System:

Shaft Protrusion Length (in):

2.756

Undercarriage Width (mm):

265.7

Idler Rim Width (in):

5.315

Shaft Protrusion Length (mm):

Mounting Cap Bolt Thread Size:

M12

Machine Side:

Interchangeable

Height (mm):

590

Flange Diameter (in):

23.2

Flange Type:

Center Flange

Tread Diameter (in):

21.882

Center Flange Width (mm):

68.5

Tread Type:

Conventional Tread

Tread Diameter (mm):

555.8

Center Flange Width (in):

2.697

Center Flange Diameter (in):

23.22

Shaft Length (in):

10.827

Bearing Mounting Length (mm):

325

Center Flange Diameter (mm):

589.8

Shaft Length (mm):

275

Bearing Mounting Length (in):

12.795

Shaft Diameter (mm):

53.9

Shaft OD (mm):

53.92

Shaft OD (in):

2.123

Length (mm):

620

Compatible Models for part number 419-5476

TRACK-TYPE TRACTOR

D5K XL D3 D5K LGP D5K2 LGP D5K2 XL

Compare Alternate Parts

419-5476: Idler Group

Shaft Protrusion Length (in)

2.756

Idler Rim Width (in)

5.315

Flange Diameter (in)

23.2

Description

Cat® Idler Group Standard Application, 135mm Rim Width, Interchangeable, 555.8mm Tread Diameter, Conventional Tread

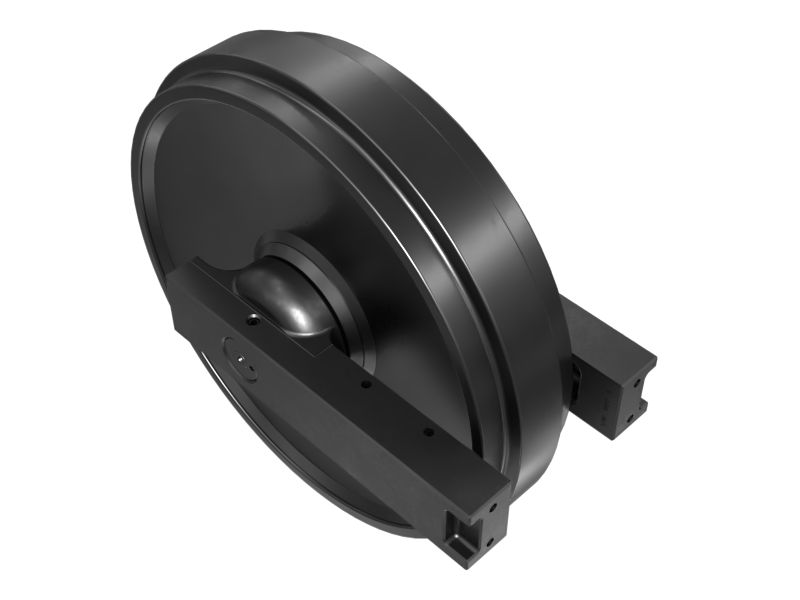

596-6893: Front Track Idler

Weight (lb)

241

Tread Diameter (in)

21.882

Center Flange Width (in)

2.474

Description

Cat® Idler Group Standard Application, 135mm Rim Width, Interchangeable, 555.8mm Tread Diameter, Conventional Tread

610-1065: Idler Group

Diameter (in)

21.88

Weight (lb)

4.61

Width (in)

5.32

Description

Cat® Idler Group Standard Application, 135mm Rim Width, Interchangeable, 555.8mm Tread Diameter, Conventional Tread
