490-6505: 5 Teeth Steel Alloy Casted Sprocket Segment

Cat® Track Segment Tough Steel, 5 Bolts, 5 Teeth, 202.81mm Track Pitch

Brand: Cat

Product Images

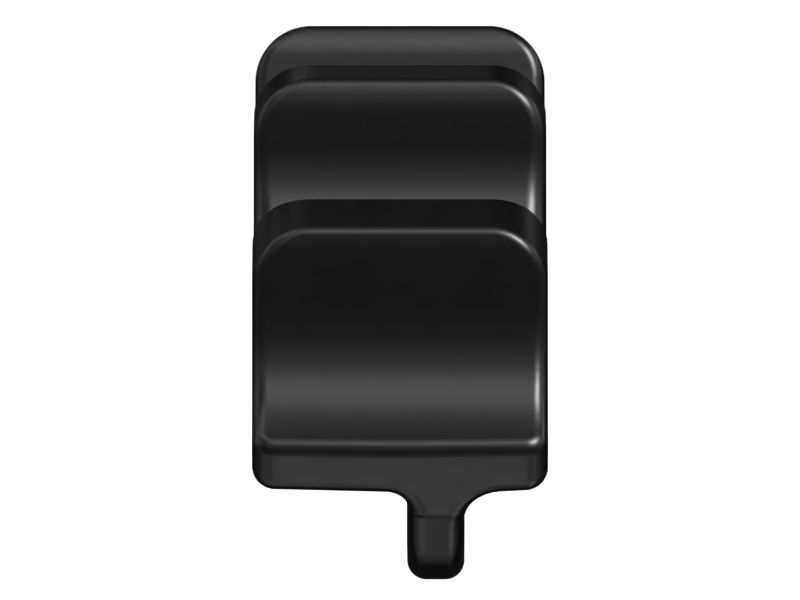

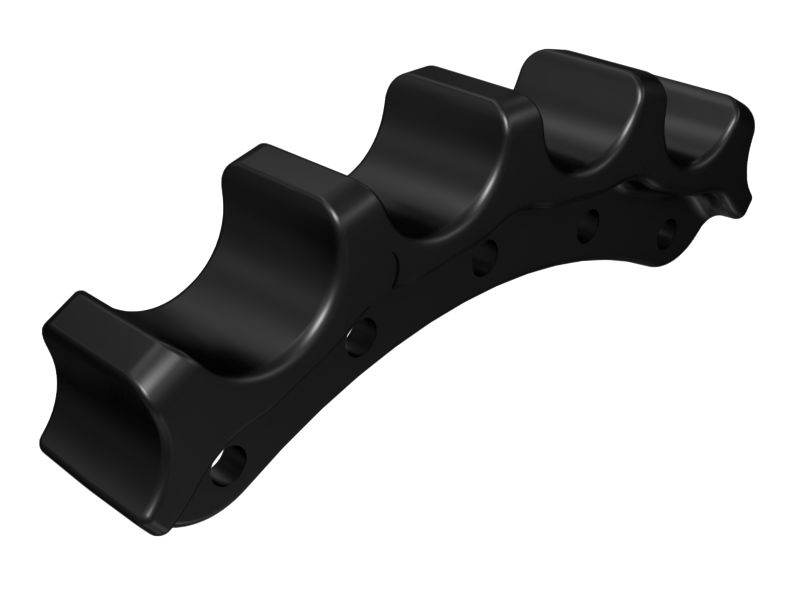

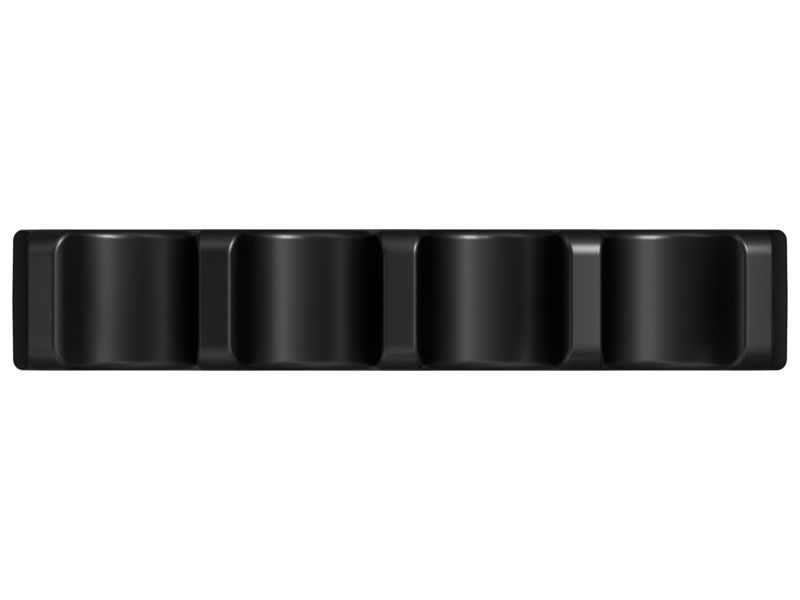

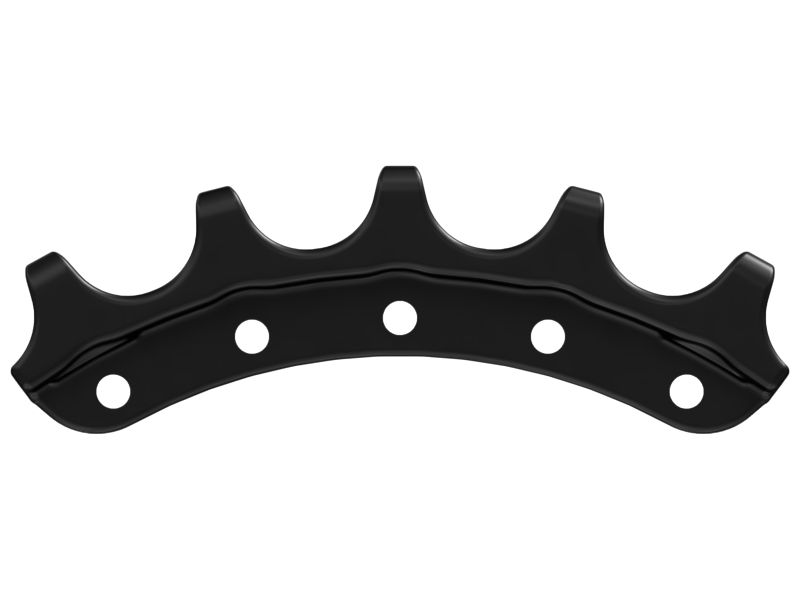

490-6505: 5 Teeth Steel Alloy Casted Sprocket Segment

490-6505: 5 Teeth Steel Alloy Casted Sprocket Segment

Cat® Track Segment Tough Steel, 5 Bolts, 5 Teeth, 202.81mm Track Pitch

Brand: Cat

Will It Fit?

Add your equipment to see if this part fits or if there are repair options available.

Add Equipment

Will it fit or looking for a repair?Add your equipment to see if this part fits or if there are repair options available.

Check Price

Warranty Information

Return Policy

Description

Warning:This product can expose you to chemicals including Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

Specifications

Number of Sprocket Teeth:

Number of Sprocket Segments:

Number of Sprocket Bolts:

Bolt Size (mm):

M18

Number of Bolts:

Pitch (mm):

202.81

Tip Radius (in):

16.26

Pitch Circle Radius (mm):

407.76

Material:

Alloy Steel

Pitch Circle Radius (in):

16.054

Bushing Radius (in):

1.433

UC System:

HDXL,ABRASION

Relieved:

Tooth Width (in):

3.071

Packing Offset Radius (in):

16.004

Material Type:

Tough Steel

Bolt Circle Radius (in):

12.953

Packing Offset Radius (mm):

406.5

Pitch (in):

7.985

Back Lash (in):

0.079

Track Pitch (mm):

202.81

Bolt Circle Radius (mm):

329

Sound Segment:

Back Lash (mm):

Sprocket Mounting Type:

Offset

Pocket Angle (degrees):

Number of Teeth:

Inner Radius (mm):

308

Bolt Thread Size:

M18

Tooth Width (mm):

Inner Radius (in):

12.126

Bushing Radius (mm):

36.4

Tip Radius (mm):

413

Compatible Models

Track-Type Tractor

Warranty Information

Return Policy

Parts diagram for 490-6505

Frequently bought together

490-6505

235-5974

288-0934

View All Parts

Frequently bought together

490-6505: 5 Teeth Steel Alloy Casted Sprocket Segment

235-5974: Carrier Roller Group

288-0934: Single Flange Track Roller Bearing

288-0935: Double Flange Track Roller

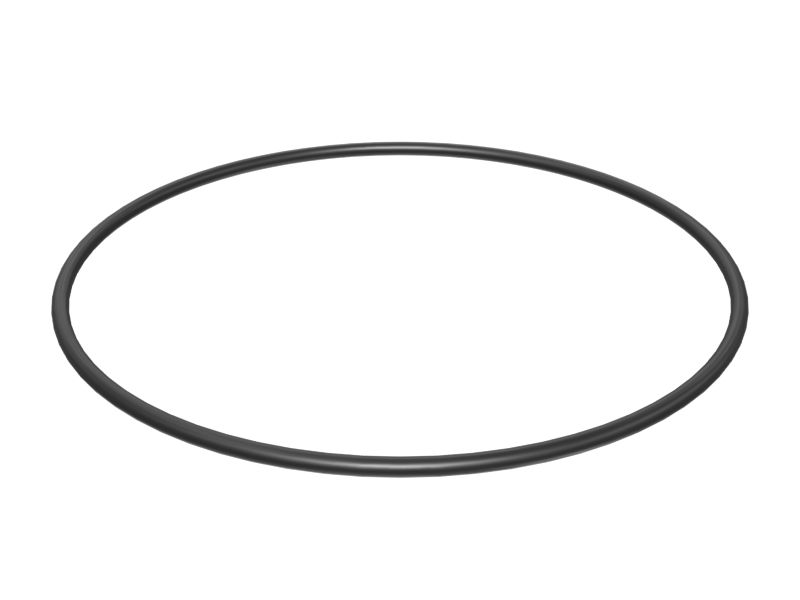

2D-8009: 142.47mm Inside Diameter Seal-O-Ring

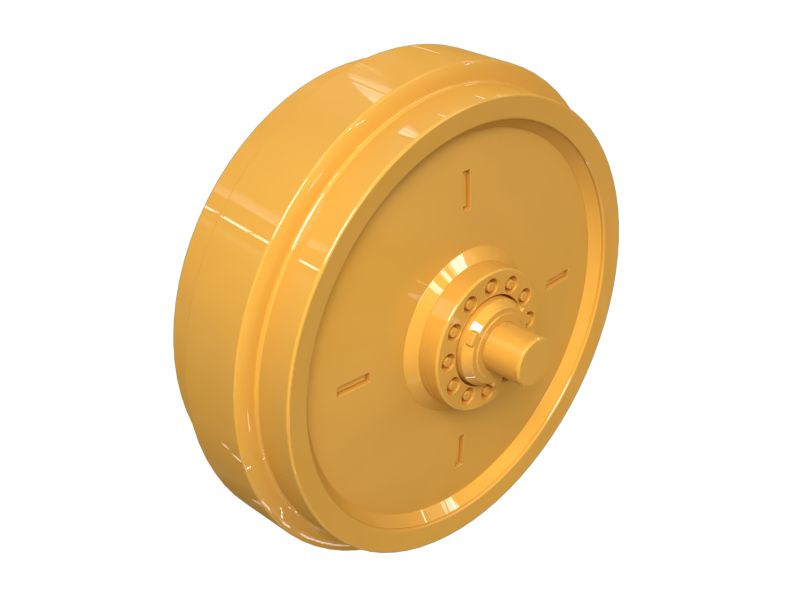

202-4296: 545mm Tread Track Idler

Diagram

Description

Specifications

Compatible Models

Parts diagram for 490-6505

Description for part number 490-6505

Description:
Sprockets transfer the engine power to the link assemblies and engage the link assembly to create motion.

Specifications for part number 490-6505

Units of Measure

Metric

Number of Sprocket Teeth:

Number of Sprocket Segments:

Number of Sprocket Bolts:

Bolt Size (mm):

M18

Number of Bolts:

Pitch (mm):

202.81

Tip Radius (in):

16.26

Pitch Circle Radius (mm):

407.76

Material:

Alloy Steel

Pitch Circle Radius (in):

16.054

Bushing Radius (in):

1.433

UC System:

HDXL,ABRASION

Relieved:

Tooth Width (in):

3.071

Packing Offset Radius (in):

16.004

Material Type:

Tough Steel

Bolt Circle Radius (in):

12.953

Packing Offset Radius (mm):

406.5

Pitch (in):

7.985

Back Lash (in):

0.079

Track Pitch (mm):

202.81

Bolt Circle Radius (mm):

329

Sound Segment:

Back Lash (mm):

Sprocket Mounting Type:

Offset

Pocket Angle (degrees):

Number of Teeth:

Inner Radius (mm):

308

Bolt Thread Size:

M18

Tooth Width (mm):

Inner Radius (in):

12.126

Bushing Radius (mm):

36.4

Tip Radius (mm):

413

Compatible Models for part number 490-6505

TRACK-TYPE TRACTOR

D6XE D6 D6 XE

Key

Factory Fit

This part is designed to fit your Cat equipment based on the manufacturer’s specifications.

Any changes to the manufacturer’s configuration might result in the product not fitting your Cat equipment. Please consult your Cat Dealer before purchasing to ensure that this part is appropriate for your Cat equipment in its current condition and assumed configuration. This indicator cannot guarantee compatibility for all parts.
