HomeUpgrade & Repair KitsRepair & Service KitsEnginesEngine Gasket Kits237-6367: Single Cylinder Head Install Kit
Home
Upgrade & Repair KitsRepair & Service KitsEnginesEngine Gasket Kits237-6367: Single Cylinder Head Install Kit

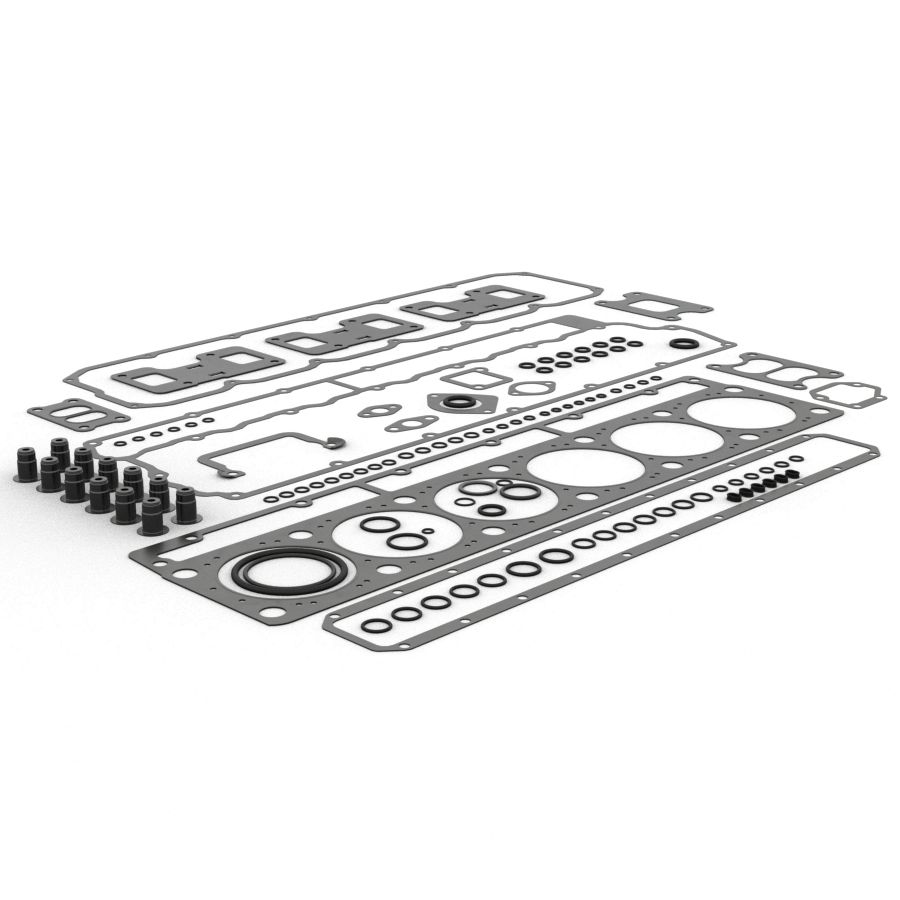

237-6367: Single Cylinder Head Install Kit

Cat® Single Cylinder Head Gasket Kit creates a reliable, leak-free seal between the engine block and cylinder head, ensuring engine performance

Brand: Cat

Product Images
237-6367: Single Cylinder Head Install Kit
237-6367: Single Cylinder Head Install Kit

Cat® Single Cylinder Head Gasket Kit creates a reliable, leak-free seal between the engine block and cylinder head, ensuring engine performance

Brand: Cat

Check Price
Check Price
Login to view your customer price
Warranty Information
Return Policy
Parts included in this kit

No results available.

113-6250: 0.79mm Thick Engine Head Gasket
113-6250: 0.79mm Thick Engine Head GasketQuantity: 1
119-2940: 1.13mm Thick Engine Gasket
119-2940: 1.13mm Thick Engine GasketQuantity: 1
175-7895: 3.53 x 69.44mm 75A NBR O-Ring
175-7895: 3.53 x 69.44mm 75A NBR O-RingQuantity: 1
7E-0844: 28.60mm Internal Diameter D Ring Seal
7E-0844: 28.60mm Internal Diameter D Ring SealQuantity: 1
7J-9108: 1.78 x 15.72mm 90A NBR O-Ring
7J-9108: 1.78 x 15.72mm 90A NBR O-RingQuantity: 1
4J-5477: 1.78 x 7.67mm 90A NBR O-Ring
4J-5477: 1.78 x 7.67mm 90A NBR O-RingQuantity: 6
188-6126: 0.8mm Thick Oil Line Flange Gasket
188-6126: 0.8mm Thick Oil Line Flange GasketQuantity: 1
3J-1907: 1.98 x 11.89mm 90A NBR O-Ring
3J-1907: 1.98 x 11.89mm 90A NBR O-RingQuantity: 5
3K-0360: 2.21 x 16.36mm 90A NBR O-Ring
3K-0360: 2.21 x 16.36mm 90A NBR O-RingQuantity: 7
214-7566: 1.83 x 8.92mm 90A FKM O-Ring
214-7566: 1.83 x 8.92mm 90A FKM O-RingQuantity: 6
8T-0280: 24.77mm Inside Diameter Seal-O-Ring
8T-0280: 24.77mm Inside Diameter Seal-O-RingQuantity: 2
113-6200: 2.48mm Thick Engine Head Gasket
113-6200: 2.48mm Thick Engine Head GasketQuantity: 3
123-1199: Unit Injector Hydraulic Pump Connector Seal
123-1199: Unit Injector Hydraulic Pump Connector SealQuantity: 6
124-7331: 1.6mm Thick Turbocharger Gasket
124-7331: 1.6mm Thick Turbocharger GasketQuantity: 1
5F-7054: 18.64mm Inner Diameter O-Ring Seal
5F-7054: 18.64mm Inner Diameter O-Ring SealQuantity: 1
7C-1152: 1.3mm Thick Aftercooler Gasket
7C-1152: 1.3mm Thick Aftercooler GasketQuantity: 1
7B-4910: 0.793mm Thick Water Lines Gasket
7B-4910: 0.793mm Thick Water Lines GasketQuantity: 1
4P-7704: 1.6mm Thick Turbocharger Flange Gasket
4P-7704: 1.6mm Thick Turbocharger Flange GasketQuantity: 1
5L-8484: Muffler Mounting Square Gasket
5L-8484: Muffler Mounting Square GasketQuantity: 1
7C-7431: 1.03mm Thick Turbocharger Gasket
7C-7431: 1.03mm Thick Turbocharger GasketQuantity: 1
238-5084: 2.95 x 29.74mm 90A FKM O-Ring
238-5084: 2.95 x 29.74mm 90A FKM O-RingQuantity: 2
3J-7354: 1.83 x 8.92mm 90A NBR O-Ring
3J-7354: 1.83 x 8.92mm 90A NBR O-RingQuantity: 4
6V-8397: 1.78 x 9.27mm 90A NBR O-Ring
6V-8397: 1.78 x 9.27mm 90A NBR O-RingQuantity: 4
1J-9671: 1.83 x 10.52mm 90A NBR O-Ring
1J-9671: 1.83 x 10.52mm 90A NBR O-RingQuantity: 9
6F-4855: 13.94mm Inner Diameter O-Ring Seal
6F-4855: 13.94mm Inner Diameter O-Ring SealQuantity: 12
2W-7212: 0.8mm Thick Water Regulator Gasket
2W-7212: 0.8mm Thick Water Regulator GasketQuantity: 1

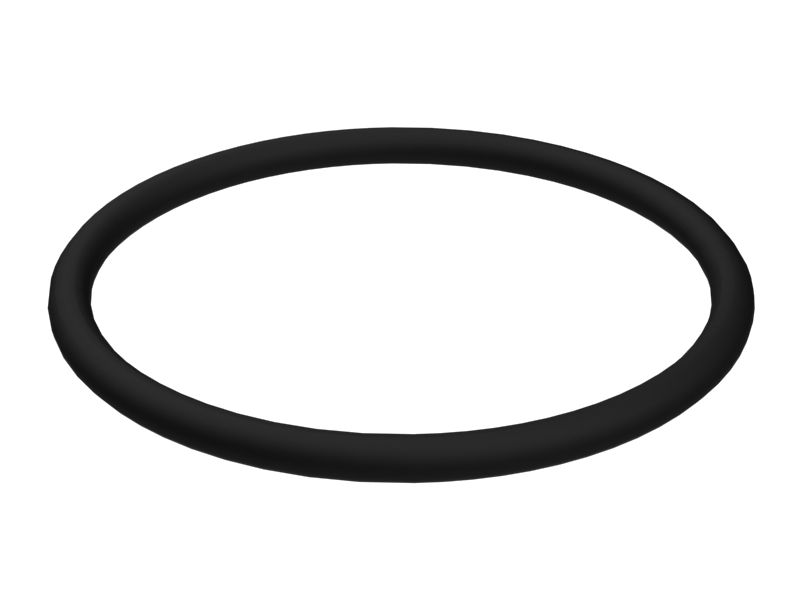

095-1554: 5.7 x 84.6mm 75A NBR O-Ring
095-1554: 5.7 x 84.6mm 75A NBR O-RingQuantity: 1
119-3036: Valve Stem and Spring Seat Seal
119-3036: Valve Stem and Spring Seat SealQuantity: 12
205-1293: Cylinder Head Gasket
205-1293: Cylinder Head GasketQuantity: 1
195-7339: Water Temperature Regulator Gasket
195-7339: Water Temperature Regulator GasketQuantity: 1
7C-1159: 0.8mm Thick Fuel Filter Gasket
7C-1159: 0.8mm Thick Fuel Filter GasketQuantity: 1
6I-3033: Exhaust Manifold Steel Lock
6I-3033: Exhaust Manifold Steel LockQuantity: 1
Showing 1 to 32 of 39Load More
DescriptionSpecificationsCompatible Models
Specifications for part number 237-6367
Kit Contains: Gaskets, seals
View More
Compatible Models for part number 237-6367

TRUCK ENGINE

3126

INDUSTRIAL ENGINE

3126

View More
