Cat® Link Assembly GLT, Clamp Master, 49 Sections, Press Fit, SALT, 190mm Track Pitch

Brand: Cat

Product Images

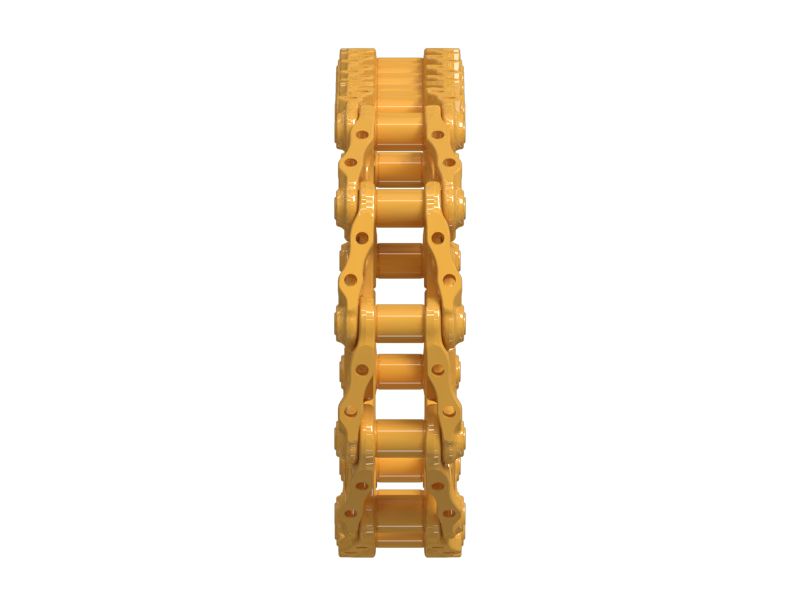

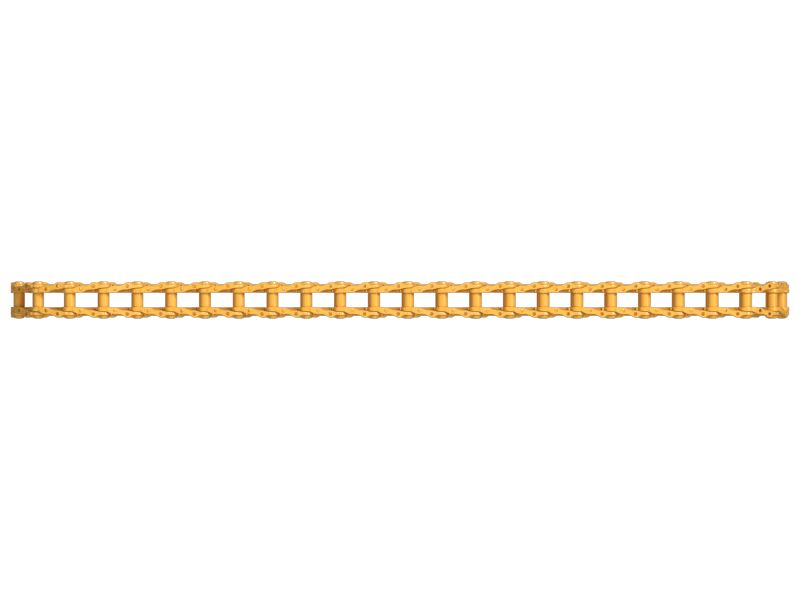

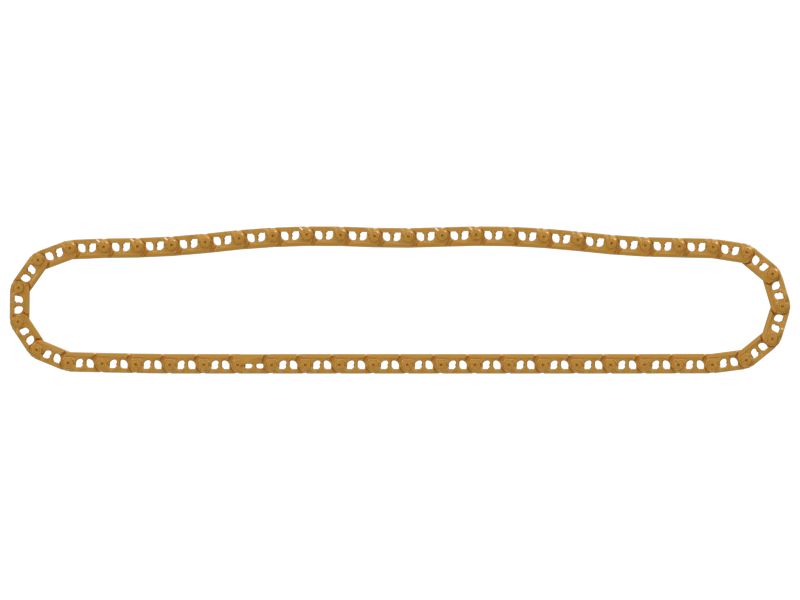

596-8460: Link Assembly

Cat® Link Assembly GLT, Clamp Master, 49 Sections, Press Fit, SALT, 190mm Track Pitch

Brand: Cat

Will It Fit?

Add your equipment to see if this part fits or if there are repair options available.

Add Equipment

Will it fit or looking for a repair?Add your equipment to see if this part fits or if there are repair options available.

Check Price

Warranty Information

Return Policy

596-8460

8E-9805

248-7143

View All Parts

596-8460: Link Assembly

8E-9805: Track Sprocket

248-7143: Idler Group

8E-5600: Carrier Roller Group

7Y-0682: 70mm Outer Diameter Plastic Back Up Ring

093-1436: Recoil Cylinder Lip Type Seal

Parts included in this kit

There are currently no parts associated with this kit.

If you need additional information, please contact your dealer

Description

Specifications

Compatible Models

Specifications for part number 596-8460

Units of Measure

Metric

Number of Track Sections:

Bolt Size (mm):

M20

Weight (kg):

547.3

Track Pitch (in):

7.48

Weight (lb):

1,206.59

Track Pitch (mm):

190

Link Inside Spread Sprocket (in):

3.094

Rotating Bushing Track (Rbt):

Pin Retention System:

Press Fit

Rail To Bushing OD (mm):

29.7

Link Inside Spread Roller (in):

3.614

UC System:

Shoe Bolt Hole Spacing B (mm):

119.6

Rail To Bushing OD (in):

1.169

Shoe Bolt Hole Spacing C (mm):

155.6

Link Inside Spread Roller (mm):

91.8

Link Height (mm):

106

Shoe Bolt Hole Spacing A (in):

2.717

Shoe Bolt Hole Spacing A (mm):

Number of Sections:

Shoe Bolt Hole Spacing B (in):

4.709

Bushing OD (in):

2.39

Link Outside Spread (in):

6.567

Bushing OD (mm):

60.7

Bolt Hole Diameter (in):

0.827

Grease Track Type:

GLT

Link Outside Spread (mm):

166.8

Link Inside Spread Sprocket (mm):

78.6

Seal And Lube Type:

SALT

Bolt Hole Diameter (mm):

Master Link Type:

Clamp Master

Rail To Pin Boss OD (mm):

33.5

Rail To Pin Boss OD (in):

1.319

Track Bolt Thread:

M20

Pin Length (in):

8.15

Shoe Bolt Hole Spacing C (in):

6.126

Link Height (in):

4.173

Wear Sensor:

Track Stiffening System:

Not Applicable

Master Bolt Thread:

M20

Pin Length (mm):

207

Compatible Models for part number 596-8460

EXCAVATOR

320 OTHER 323D L 323D2 L 320 GC 323 GC

Key

Factory Fit

This part is designed to fit your Cat equipment based on the manufacturer’s specifications.

Any changes to the manufacturer’s configuration might result in the product not fitting your Cat equipment. Please consult your Cat Dealer before purchasing to ensure that this part is appropriate for your Cat equipment in its current condition and assumed configuration. This indicator cannot guarantee compatibility for all parts.
